Year |
2003 |
|---|---|
Make |
Cummins Power Generation |
Model |
100DGDB |
Description |

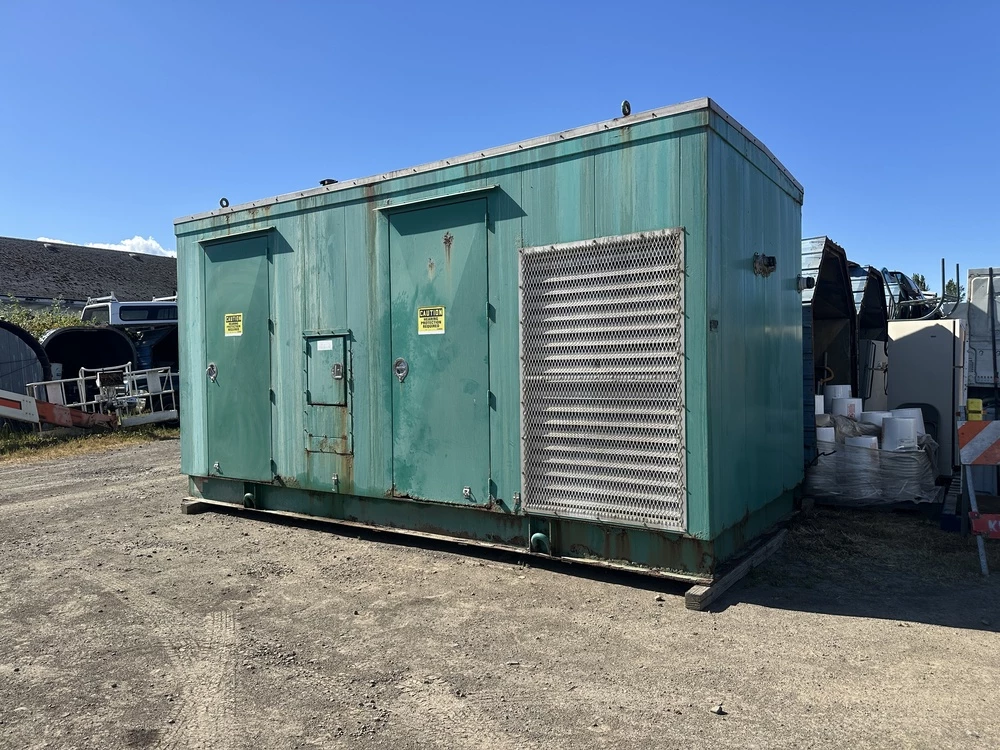

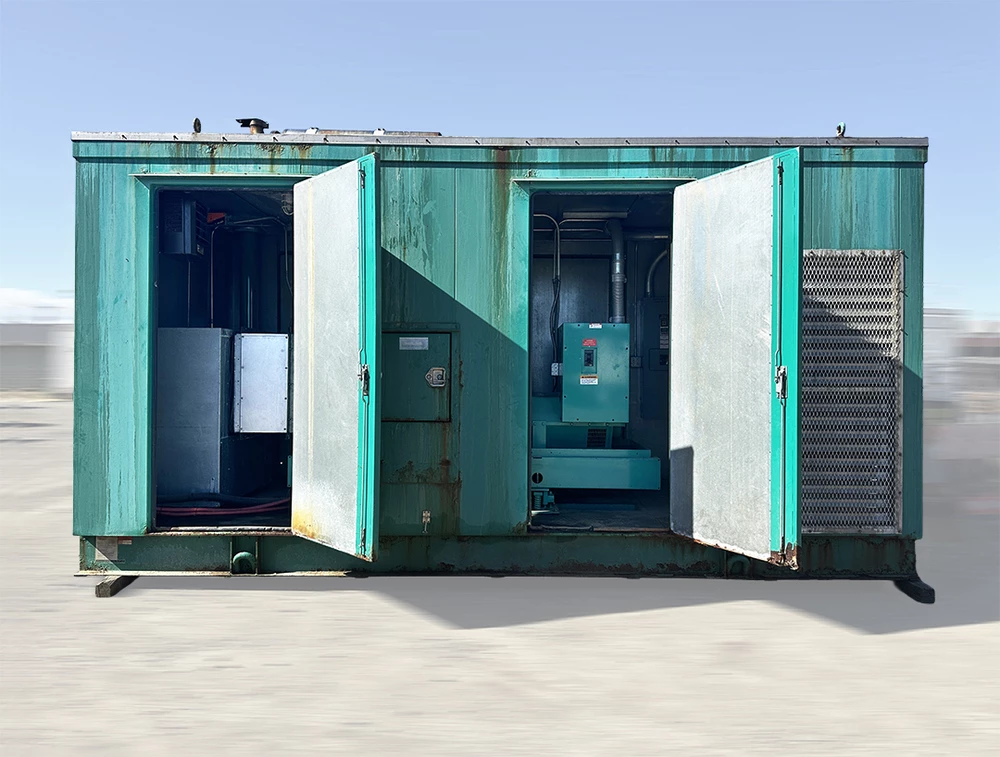

100 kW Standby Diesel Generator Set |
Reference # |
8078797 |
Price |
Activate Pricing |

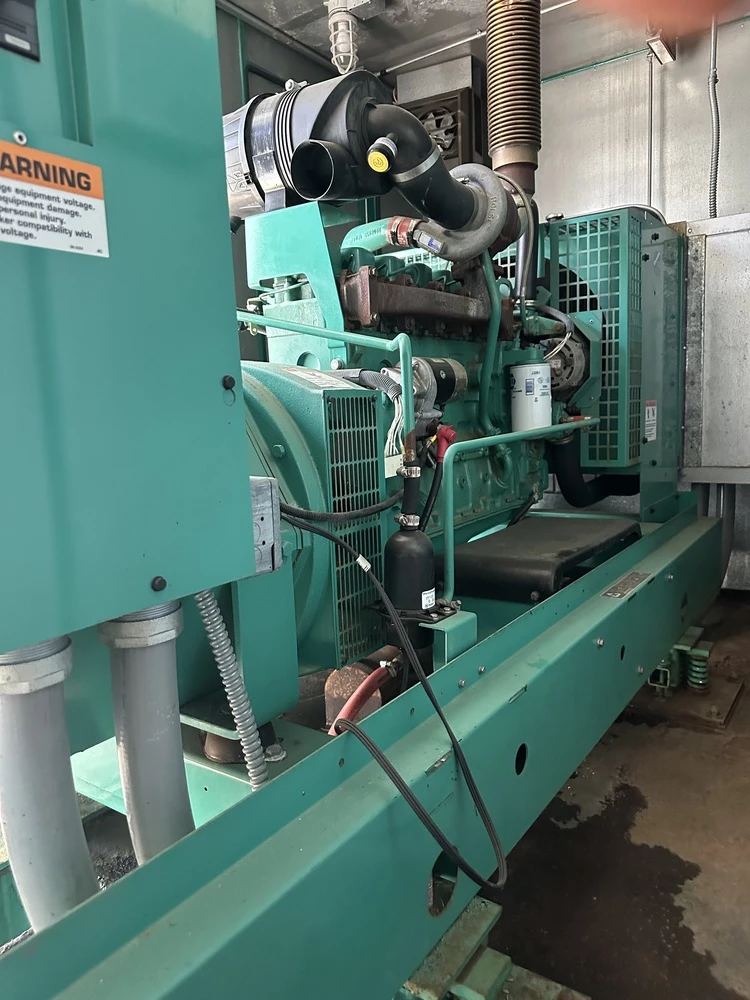

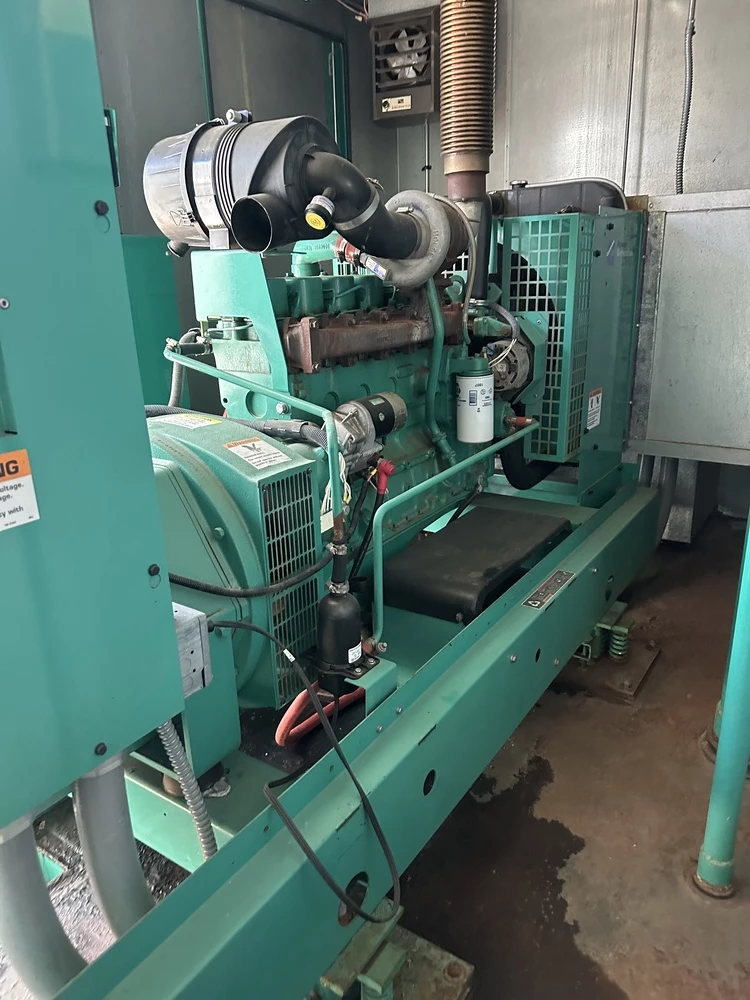

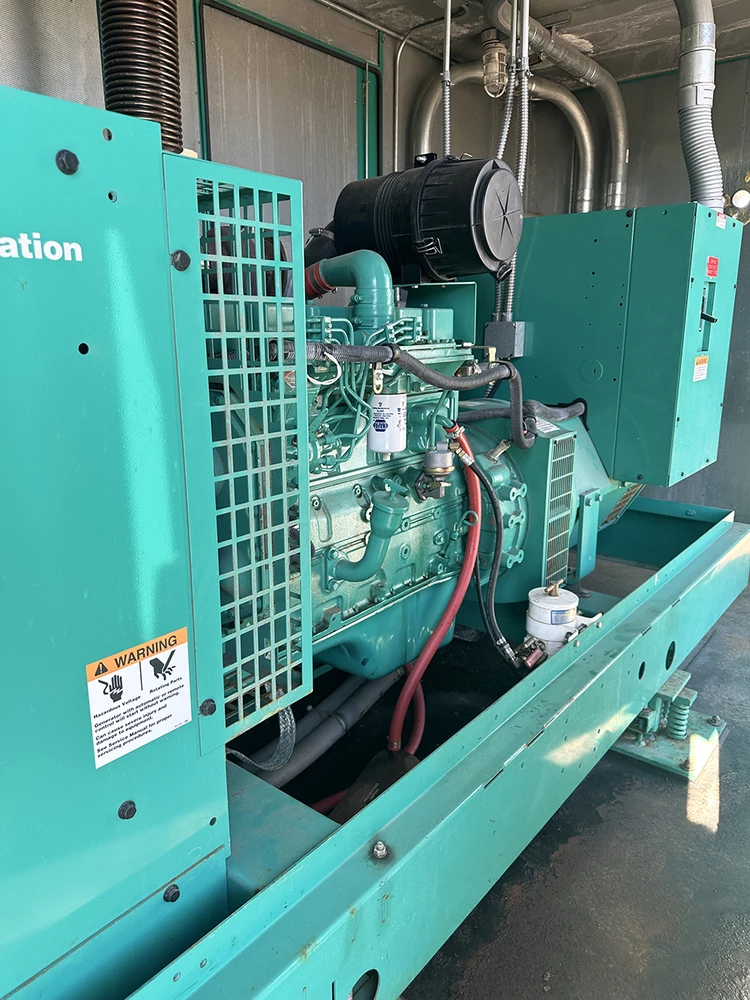

Used Cummins Power Generation 100DGDB (2003) Other Equipment for Sale. This diesel generator set is rated at an estimated 100 kW standby and 90 kW prime for the 6BT5.9-G6 package at 1800 RPM, with a 3-phase, 4-pole electrical configuration at 60 Hz. The 6BT5.9-G6 engine is an inline 6-cylinder diesel displacing 5.9 liters (359 cubic inches), turbocharged with a Holset turbo, and rated at 170 HP (127 kWm) at 1800 RPM. CPL 2530, engine family 402, low idle 1050 RPM, firing order 1-5-3-6-2-4. Included ATS model OTPCC-5631919 (Spec A) is rated 400 Amps at 208V system voltage, 4-pole, utility to genset automatic failover, built in compliance with NFPA 70. The unit can be seen under power for an inspection. Use Activate Pricing or Request a Quote, and see more miscellaneous equipment. This machine is located in the The United States.
Specifications
| Estimated Output Capacity |
100 kW Standby / 90 kW Prime (Standard Rating for the 6BT5.9-G6 Package at 1800 RPM) |
|---|---|
| Electrical Configuration |
3-Phase / 4-PoleFrequency / 60 Hz |

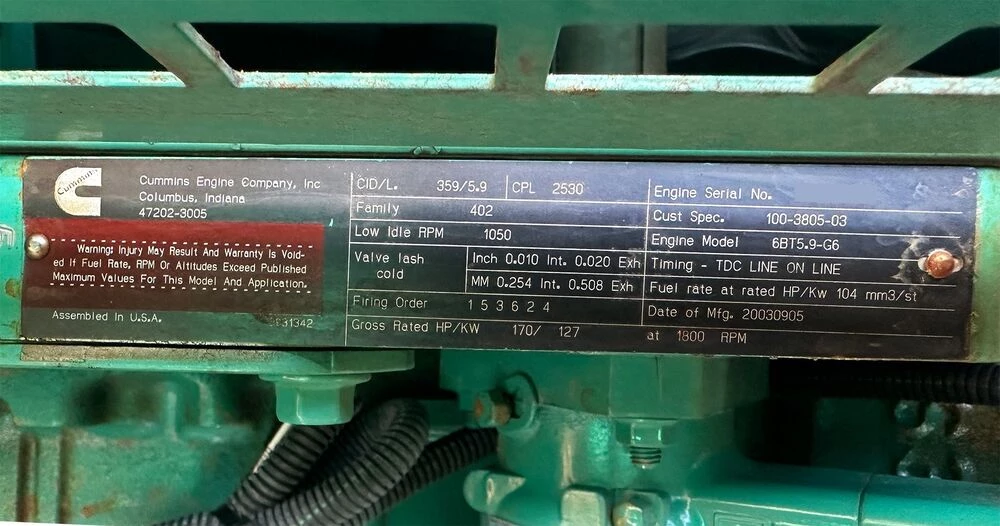

| Engine Model |
6BT5.9-G6 |
| Displacement |
5.9 Liters (359 Cubic Inches) |
| Configuration |
Inline 6-Cylinder Diesel |
| Aspiration |
Turbocharged (Equipped with High-Performance Holset Turbo) |
| Gross Engine Power Rating |
170 HP (127 kWm) at 1800 RPM |
| Critical Parts List (CPL) |
2530 |
| Engine Family |
402 |
| Low Idle Speed |
1050 RPM |
| Firing Order |
1-5-3-6-2-4 |

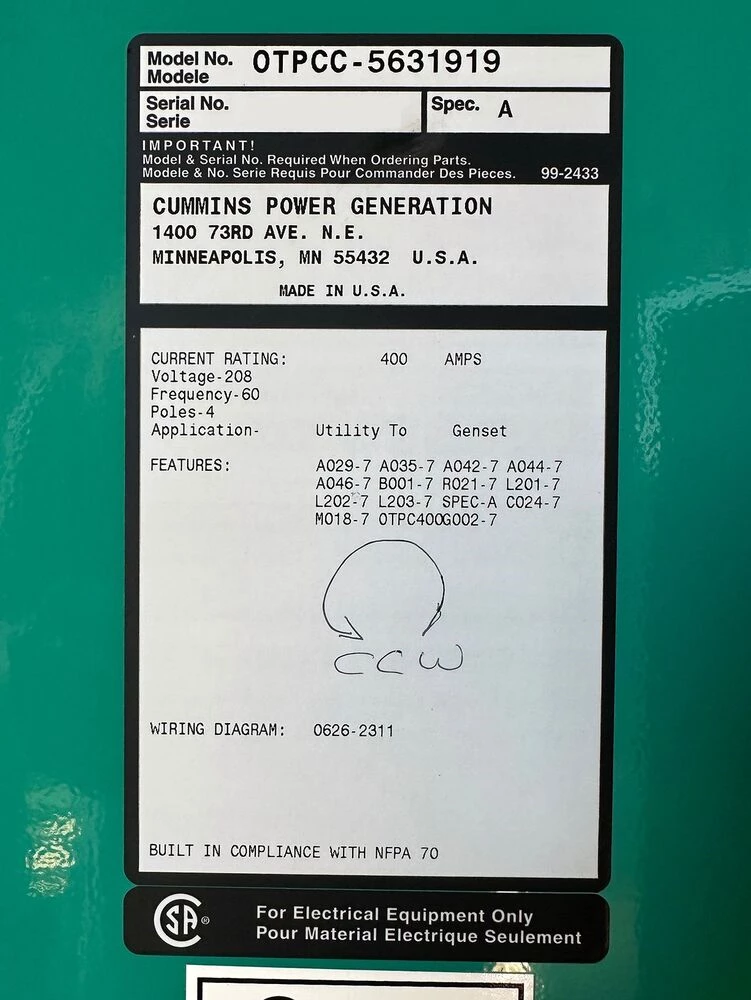

| ATS Model Number |
OTPCC-5631919 (Spec A) |
| Current Rating |
400 Amps |
| System Voltage |
208V |
| Poles |
4-Pole Configuration |
| Application Type |
Utility to Genset (Automatic Failover Mechanism) |
| Compliance |
Built in Strict Compliance with NFPA 70 Standards |
