Year |
2002 |
|---|---|
Make |
Toshiba |
Model |
ISGT950WV10-59B |
Description |
935 Ton 126 oz Shot Size Wide Platen Injection Molding Machine |
Reference # |
8069819 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Capacity |
935 Ton |
|---|---|
| Shot Size |
126 oz |
| Tie Bar Spacing |
49.8" x 49.8" |
| Platen Size |
68.3" x 68.3" |
| Max Daylight |
88.5" |
| Min /Max Mold Height |
19.7"/43.3" |
| Clamp Stroke |
68.9" |
| Control |

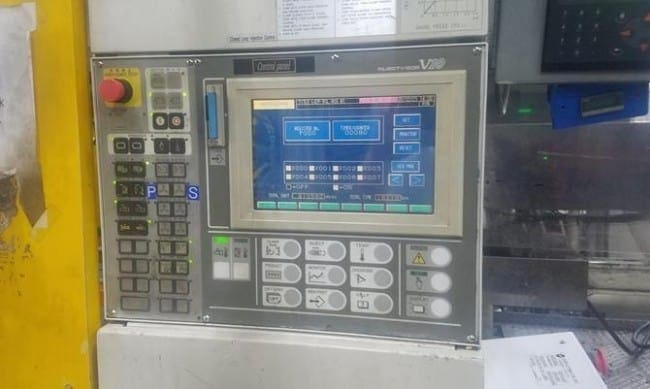

Injectvisor V10 |
| Clamp Dimensions |
271” x 123” x 119” |
| Clamp Weight |
84,000 lbs |
| Injection Unit Dimensions |
203” x 112” x 103” |
| Injection Unit Weight |
25,000 lbs |
Features
|

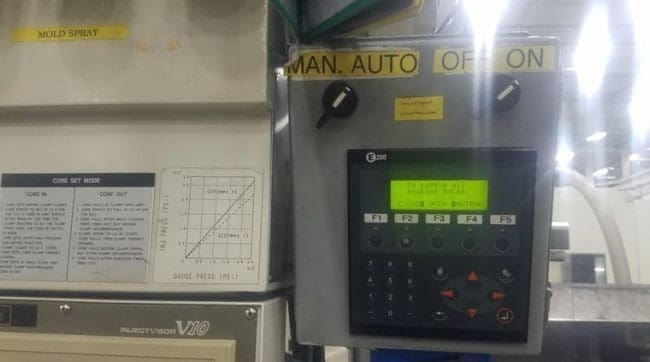

Pnuematic Valve Gate Controller |
2004 Star TW1800V-460V2 Robot |
|
Under Power |
Ejector |
|
Cam |
and Core Confirmation |
|
Hydraulic Mold Clamps With Bypass Keys Mounted |
