Year |
2002 |
|---|---|
Make |
Fasti |
Description |

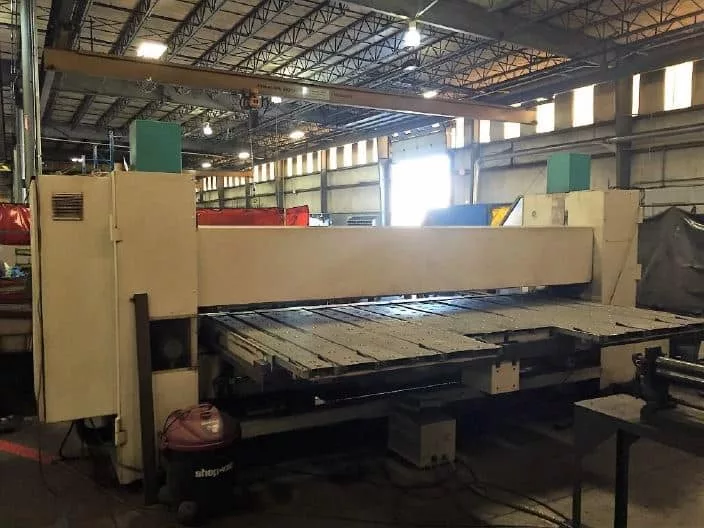

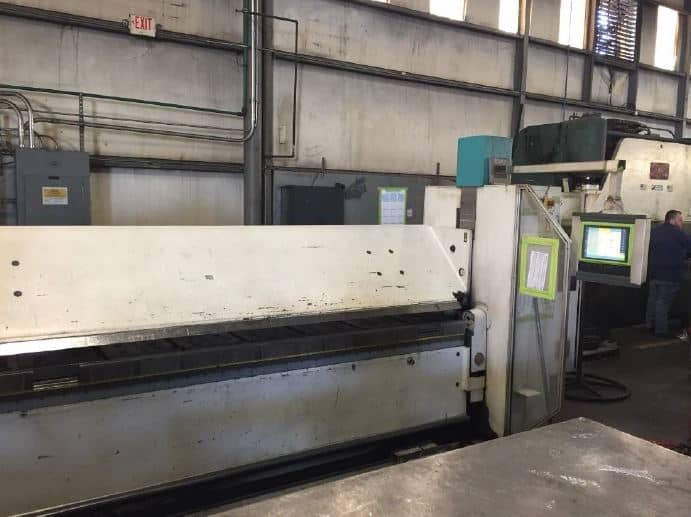

Folding Machine |
Reference # |
7791210 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Bending Length |
127.5" |
|---|---|
| Max Capacity at Full Length (Mild Steel) |
.25" |
| Smallest Inner Bend Radius (per DIN 6935 Specification) |
1.25 x Gauge |
| Minimum Flange Height (per DIN 6935 Specification) |
6 x Gauge |
| Clamping Beam Profile |
45 deg. |
| Clamping Beam Stroke |
13.78" |
| Clamping Beam |
Sharp Nose Blade: SA-45 deg., Segmented, Full 1/4" x 10 |
| Backgauge System MAH25R |
.394" – 63" with 2 Rows of Pop-Up Gauge Fingers |
| Control |
CFP 120 |
Features
|
Automatic Hydraulic Tool Clamping |
CNC Motorized Adjustment of Lower Beam |
|
CNC Motorized Crowning Adjustment |
Light Beam |
|
RAM 64 MB (for approx. 14 |
000 programs) |
|
Safety Limit Switch |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
