Year |
2001 |
|---|---|
Make |
Van Dorn Demag |
Model |
Caliber 1760/17000S |
Description |
1760 Ton 559 oz Shot Size Injection Molding Machine |
Reference # |
8077826 |
Price |
Activate Pricing |

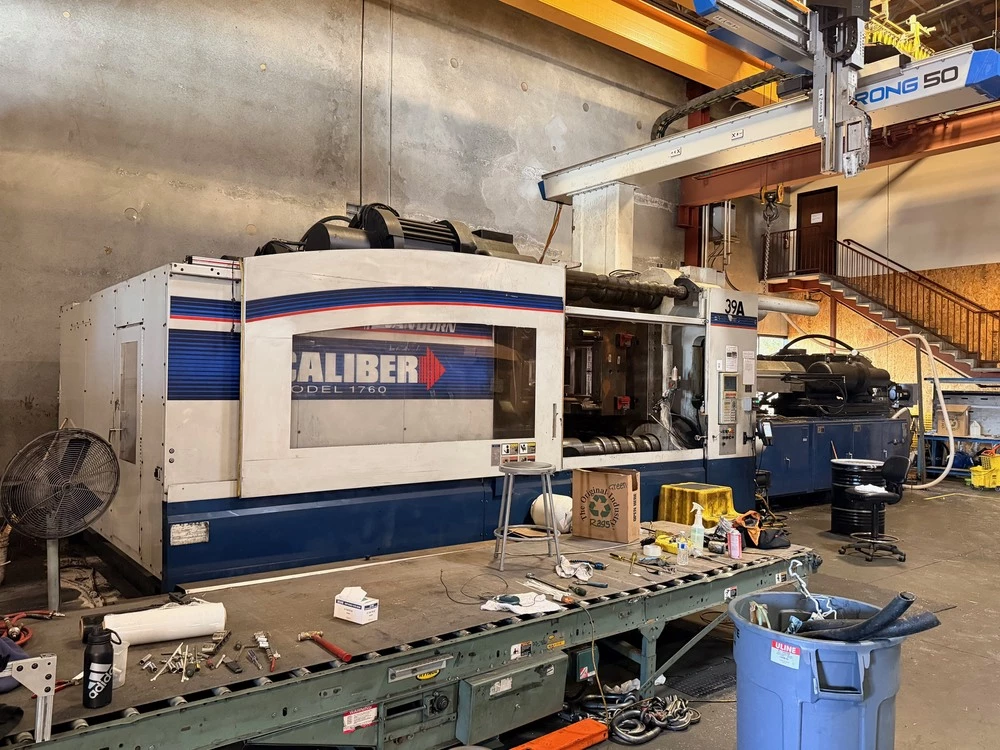

Used Van Dorn Caliber 1760/17000S (2001) Injection Molding Machine for Sale. This pre-owned Van Dorn plastic injection molding machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Van Dorn Injection Molding Machine, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
1760 Ton |
|---|---|
| Shot Size |
559 oz |
| Tie Bar Spacing |
72" x 55.1" |
| Platen Size |
97.6" x 82.7" |
| Max Daylight |
123.4" |
| Min /Max Mold Height |
28.5" /67.9" |
| Clamp Stroke |
94.9" |
| Ejector Stroke |
15.7" |
| Control |

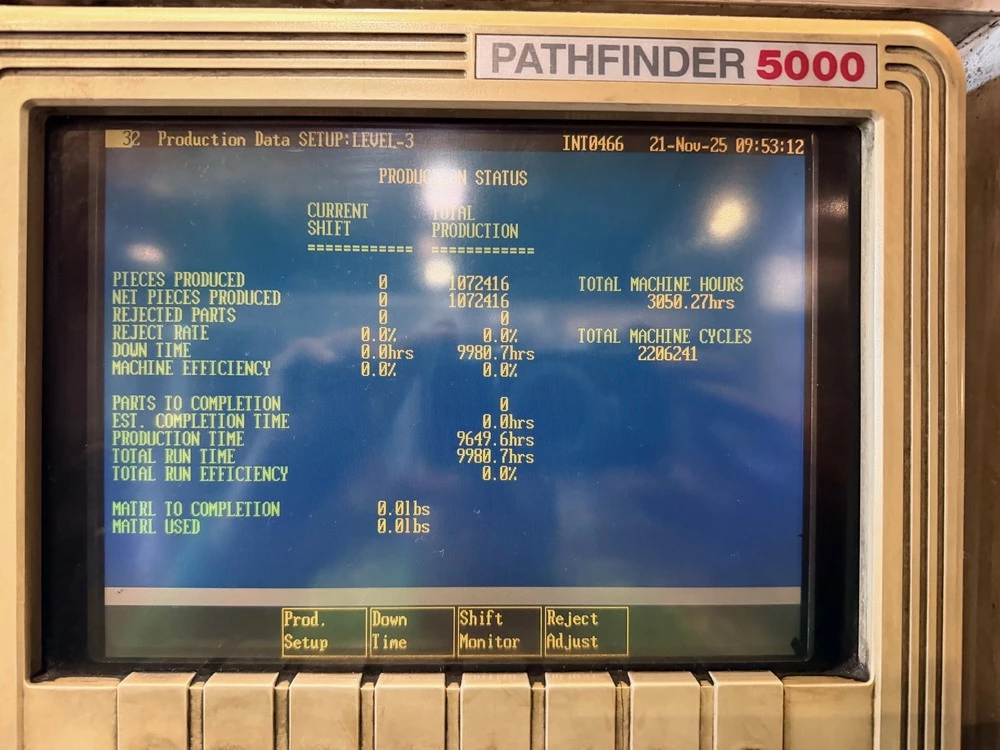

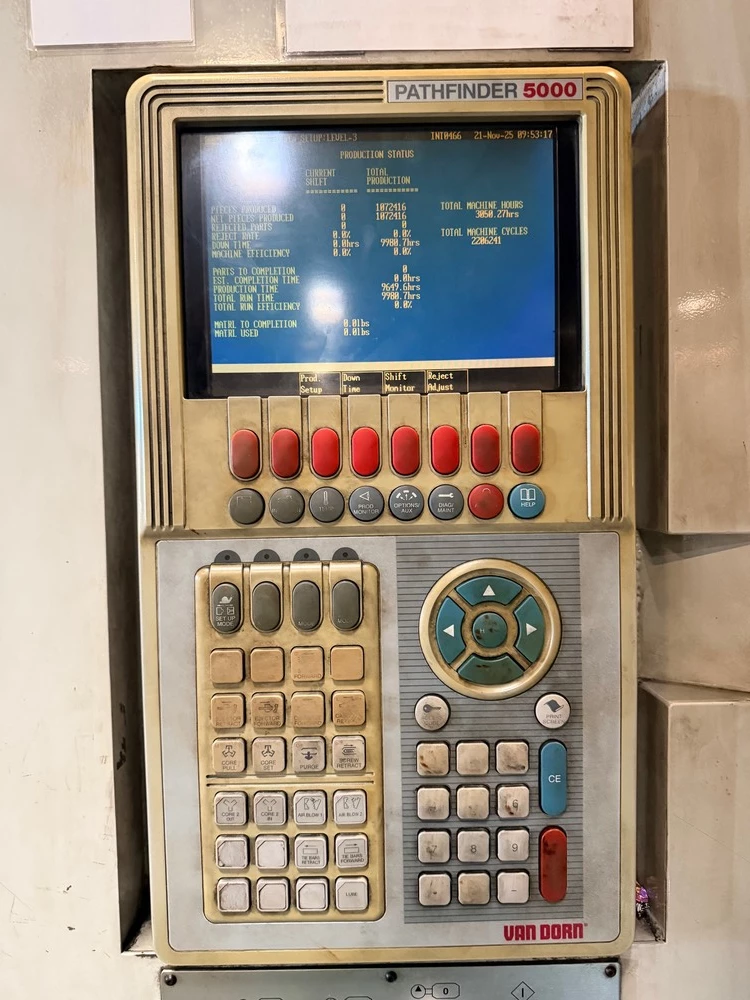

Pathfinder 5000 |
| Motor |
175 HP |
| Dimensions |
43.6' x 13.4' x 10.6' H |
| Weight |
243,000 Lbs |
Features
|
Extra 464 oz Screw and Barrel |
Core Pull |
|
Hydraulic Knockout |
Robot Interface |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
