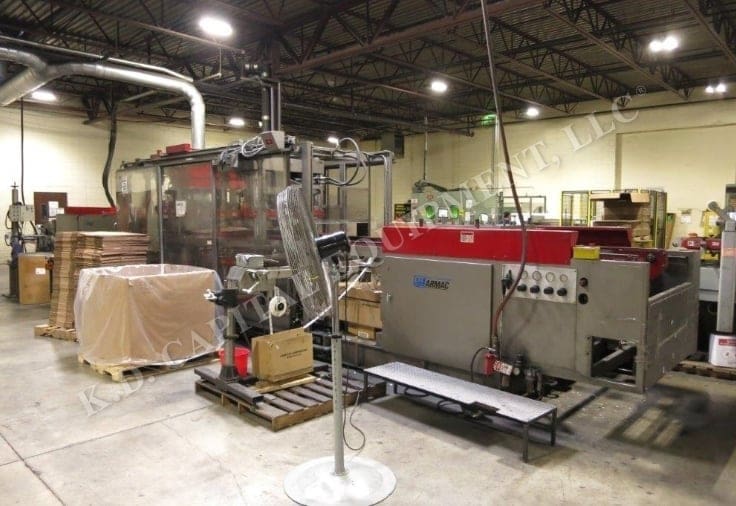

Year |
2001 |
|---|---|
Make |
Armac |
Model |
3036 |
Description |
Thermoformer |
Reference # |
7796635 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications

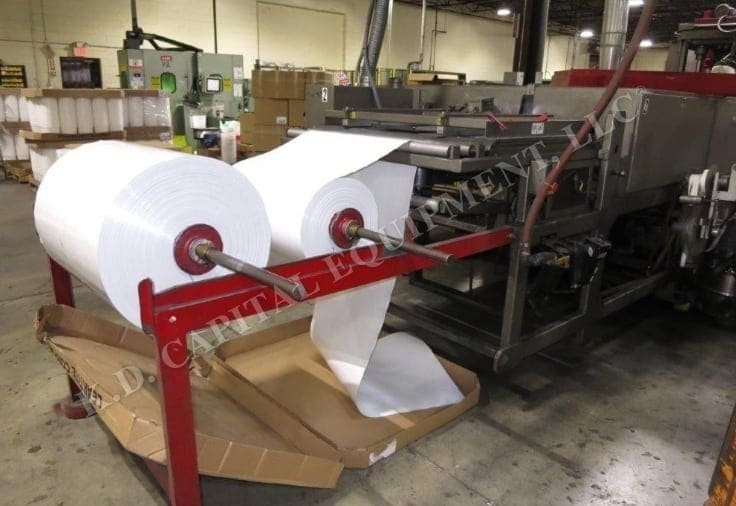

| Roll Unwind Stand W/Pneumatic Dancer Bar (3"- 6" Core) |
(2) 26" Diameter Roll |
|---|---|
| INDEX DIVE SYSTEM: |
Servo Indexing (AC Brushless) |
| Max Index Length |
32" |
| Max Distance Between Conveyor Chain |
32" |
| Index Accuracy |
plus/minus .015" |
| Min Distance Between Conveyor Chain |
14" |

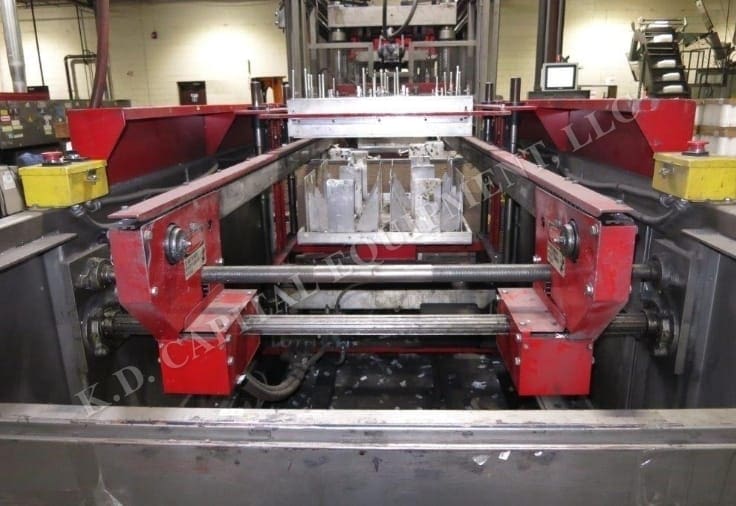

| WEB CONVEYOR SYSTEM: |
Double Roll Pin Chain Double Roll Pin Chain |

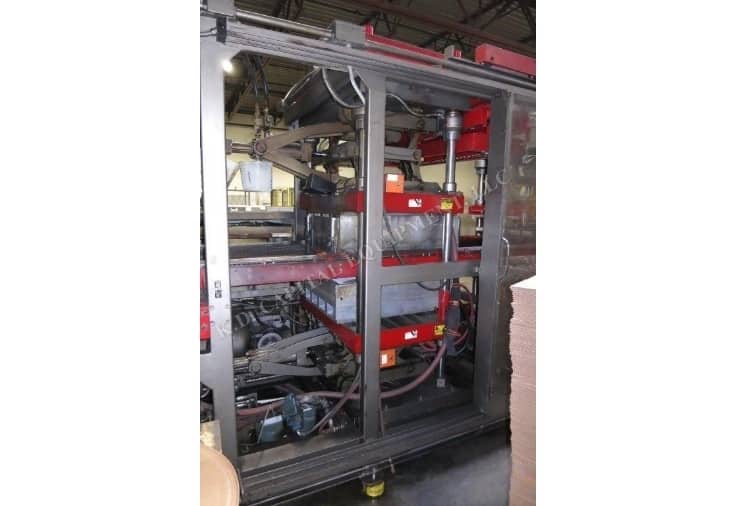

| FORM PRESS: |
Hydraulic 4 Post |
| Clamp Force |
45 Tons |
| Max Mold |
31" x 36" |
| Max Depth Of Draw |
6.5" (Female Mold) |
| Top Platen Travel |
7" |
| Bottom Platen Travel |
9" |
| Shut Height Top |
11" |
| Shut Height Bottom |
10" |

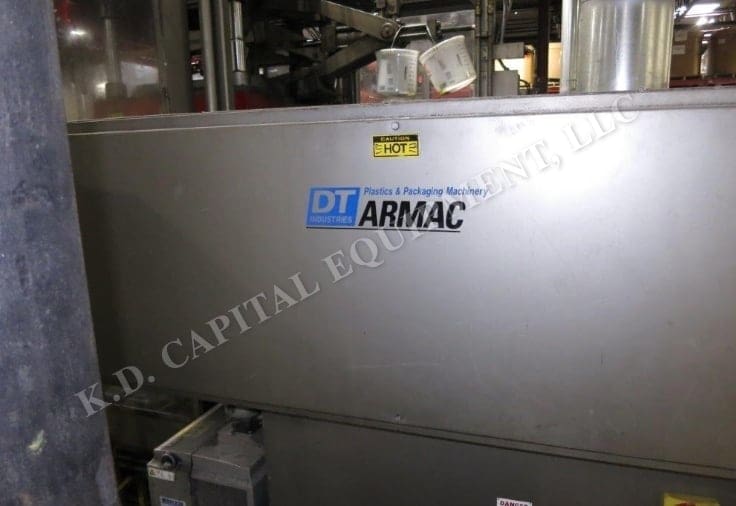

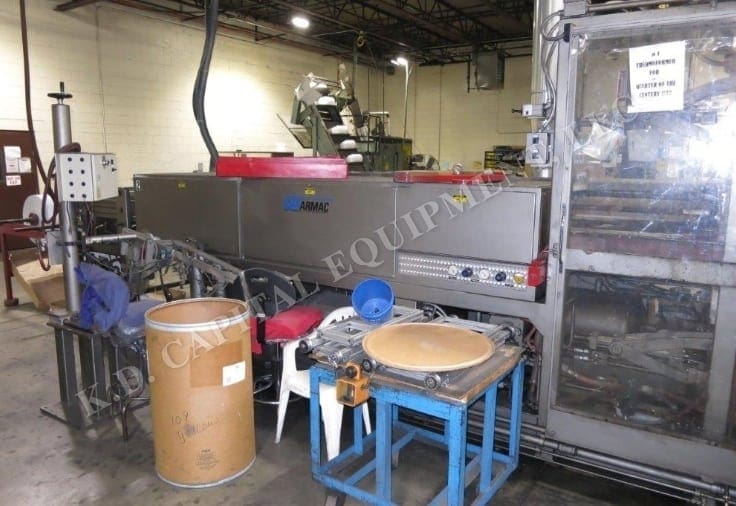

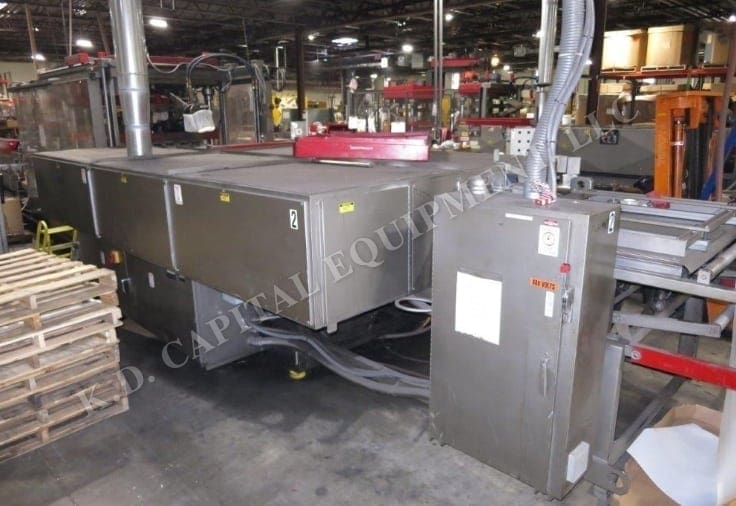

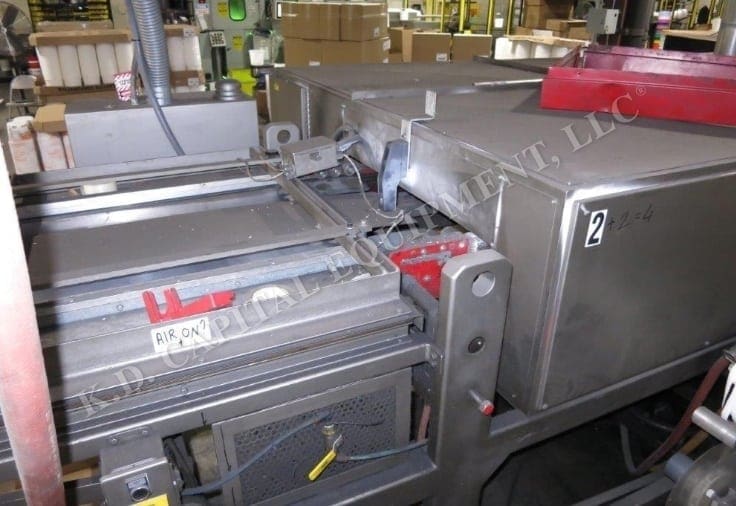

| HEATING OVEN: |
"C" Type Retractable Oven |
| # of Heaters |
20 |
| Total Heater Length |
152" Long |
| Type of Heaters |
Radiant |
| # of Zones |
7 |

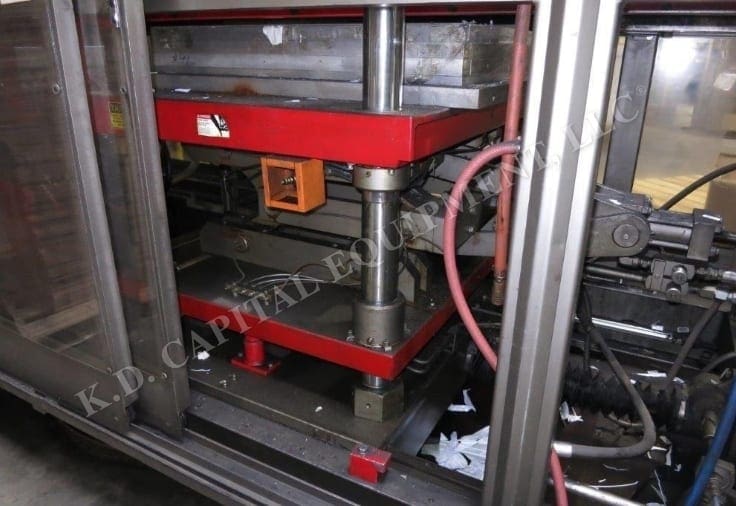

| TRIM PRESS: |
Hydraulic Activated / 4 Post |
| Cutting Force |
30-120 Tons |
| Cutting Stroke |
1/4" |
| Platen Travel (Top & Bottom) |
7" T & 5.5" B |
| Max Press Daylight |
27-3/8" |
| (8-3/4" Top) |
(6-1/8" Bottom) |
Features
|
Count Park Stacking System |
Mold Overlay Software |
|
Parts Stacking System With Counter |
Quick Change Rails |
|
Tool Hoist |
"V" Rails Front & Back |
*
