Year |
2000 |
|---|---|
Make |
RAS |
Model |
74.4 |
Description |

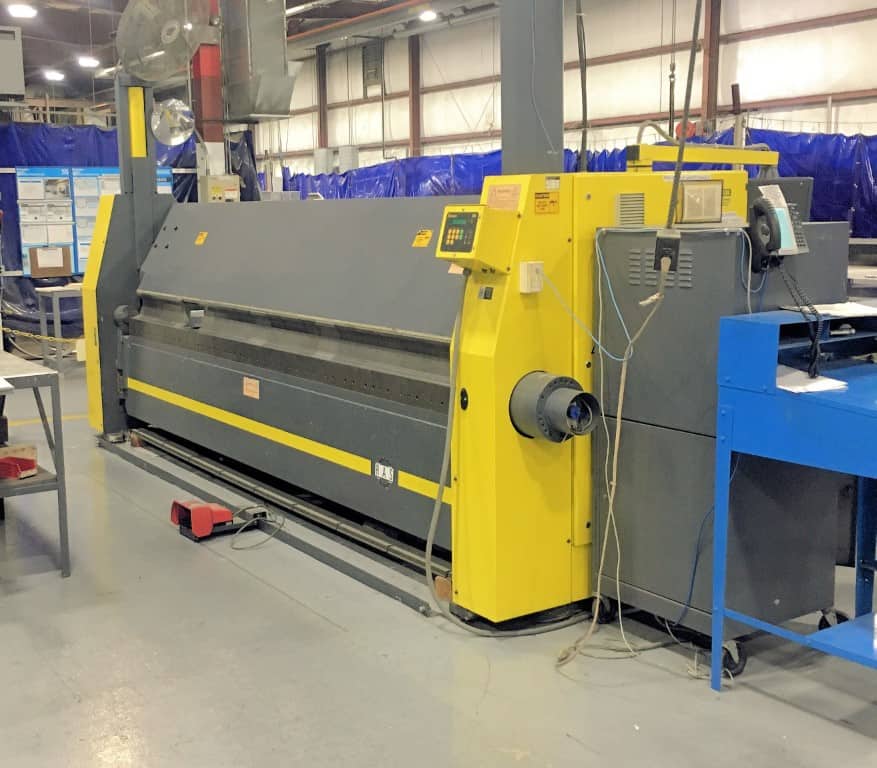

Panel Bender |
Reference # |
7797064 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Length |
160'' |
|---|---|
| Bend Capacity |
11 Gage |
| HP |
Approximately 12 |
| Smallest Inner Bend Radius (per DIN 6935 specification) |
1.25" X Gauge |
| Minimum Flange Height (per DIN 6935 specification) |
6 X Gauge |
| Clamping Beam Profile |
60 Degrees |
| Clamping Beam Stroke |
15.75" |
| Clamping Beam Speed, Up |
3.6"/ Sec |
| Clamping Beam Speed, Down |
1.57"/ Sec |
| Clamping Beam Positioning Accuracy |
Plus/ Minus .0004 |
| Folding Beam Adjustment |
3.15" |
| Folding Beam Speed, Maximum |
74 Degree/ Sec |
| Folding Beam Accuracy |
Plus/ Minus 1/2 Degrees |
| Folding Angle Range |
0 - 180 Degrees |
| Bottom Beam Adjustment |
3.15" |
| L-Shaped Backgauge Range |
61"/ 157" |
| Backgauge Accuracy |
Plus/ Minus .004" |

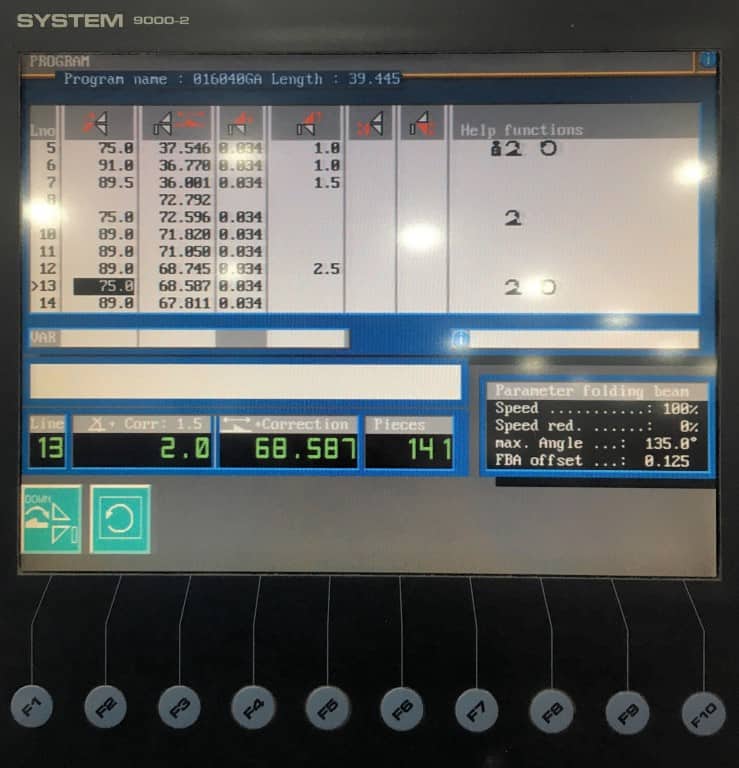

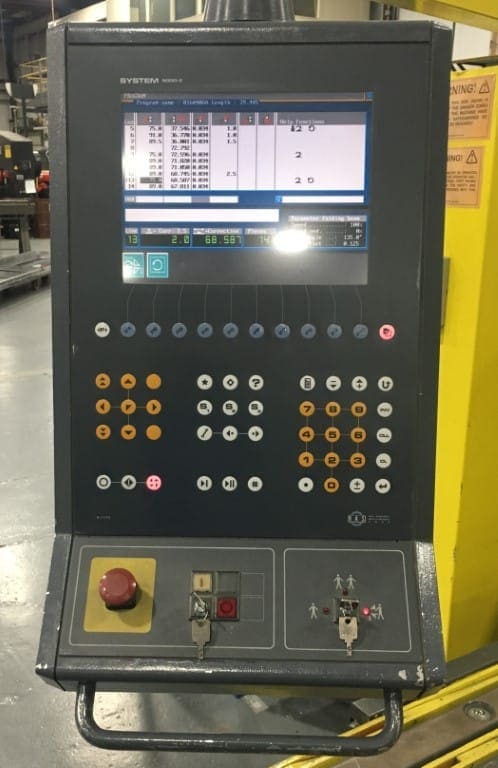

| Control |
RAS Series 9000 6 Axis |
| Working Height |
35.43" |
| Machine Height |
100" |
| Machine Width |
215" |
| Machine Depth |
157" |
| L-Gauge |
228" |
| Air Pressure |
5 Bar |
| Power Requirements |
480/3/60 |
Features
|
Swivel Arm Mount |
Technology Table For Materials |
|
Tool Memory |
Automatic Cycle Repetitions |
|
Large Memory |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
