Year |
2000 |
|---|---|
Make |
Accurpress |
Model |
717512 |
Description |
175 Ton x 12′ Hydraulic Press Brake |
Reference # |
8079037 |
Price |
Activate Pricing |

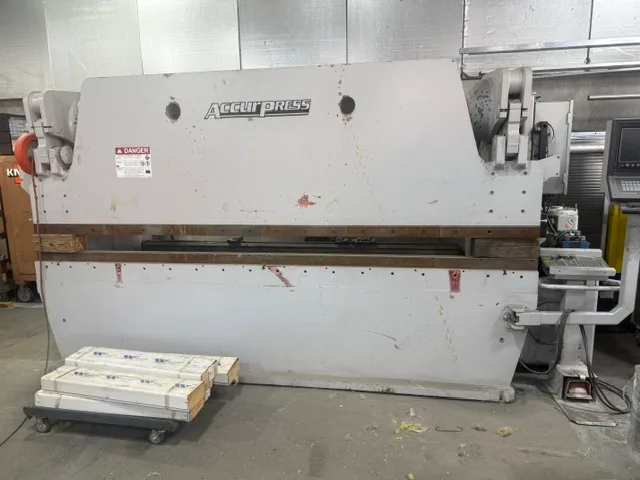

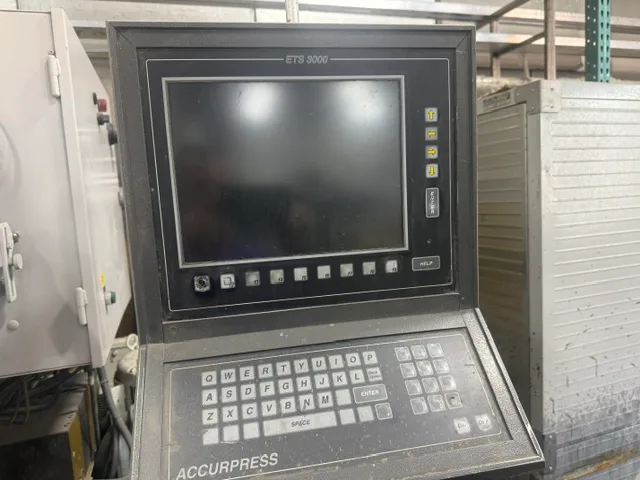

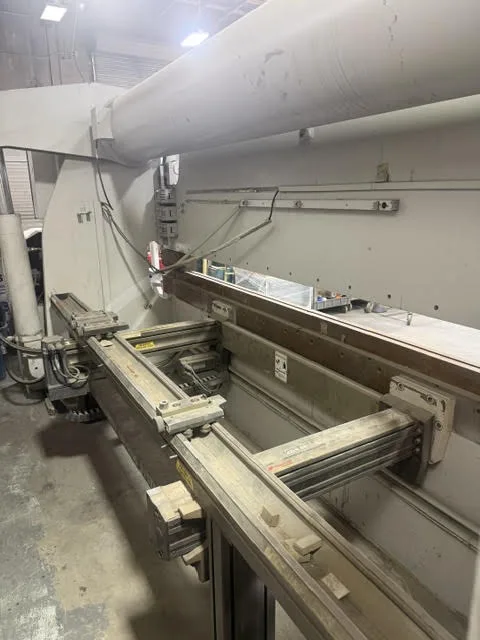

Used Accurpress 717512 (2000) Press Brake for Sale. This hydraulic press brake is rated at 175 ton capacity with a 12′ overall bed length and 124″ between housings. It runs an ETS 3000 control with a 2 axis back gauge. Stroke is 8″, throat depth 10″, open height 14″ and closed height 6″. The main motor is 20 HP, with a power requirement of 220/440 3 Phase. Approximate dimensions are 168″ L x 55″ W x 88″ T, with an approximate weight of 23,000 lbs. The machine can be seen under power for an inspection by appointment. Browse our other used press brakes and used Accurpress machines, then Activate Pricing or use the Inquire Now button to reach us about this unit.
Specifications
| Capacity |
175 Ton |
|---|---|
| Overall Length of Bed |
12' |
| Control |
ETS 3000 |
| Back Gauge |
2 Axis |
| Distance Between Housings |
124" |
| Stroke |
8" |
| Throat Depth |
10" |
| Open Height |
14" |
| Closed Height |
6" |
| Power Requirement |
220/440 3 Phase |
| Main Motor |
20 HP |
| Approx Dimensions |
168" L × 55" W × 88" T |
| Approx Weight |
23000 Lbs |
