Year |
1998 |
|---|---|
Make |
Cincinnati |
Model |
375HSx14 |
Description |
3/8" x 14' Hydraulic Shear |
Reference # |
8077866 |
Price |
Activate Pricing |

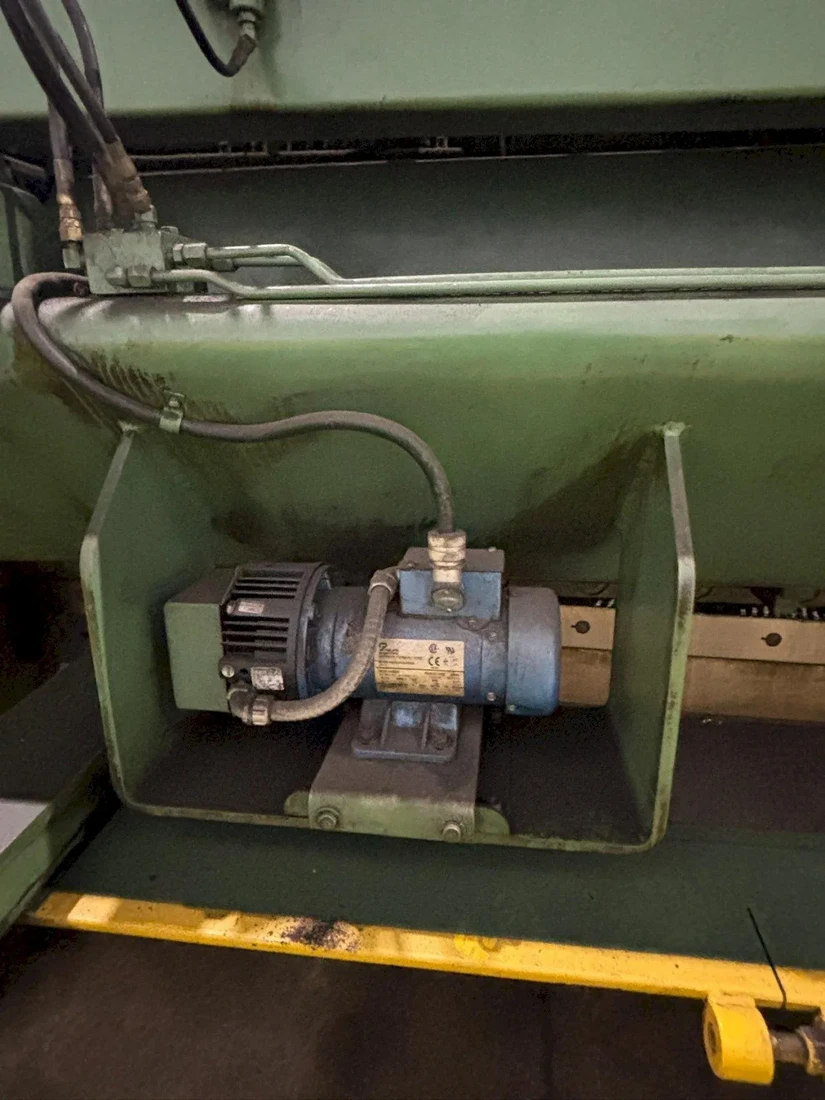

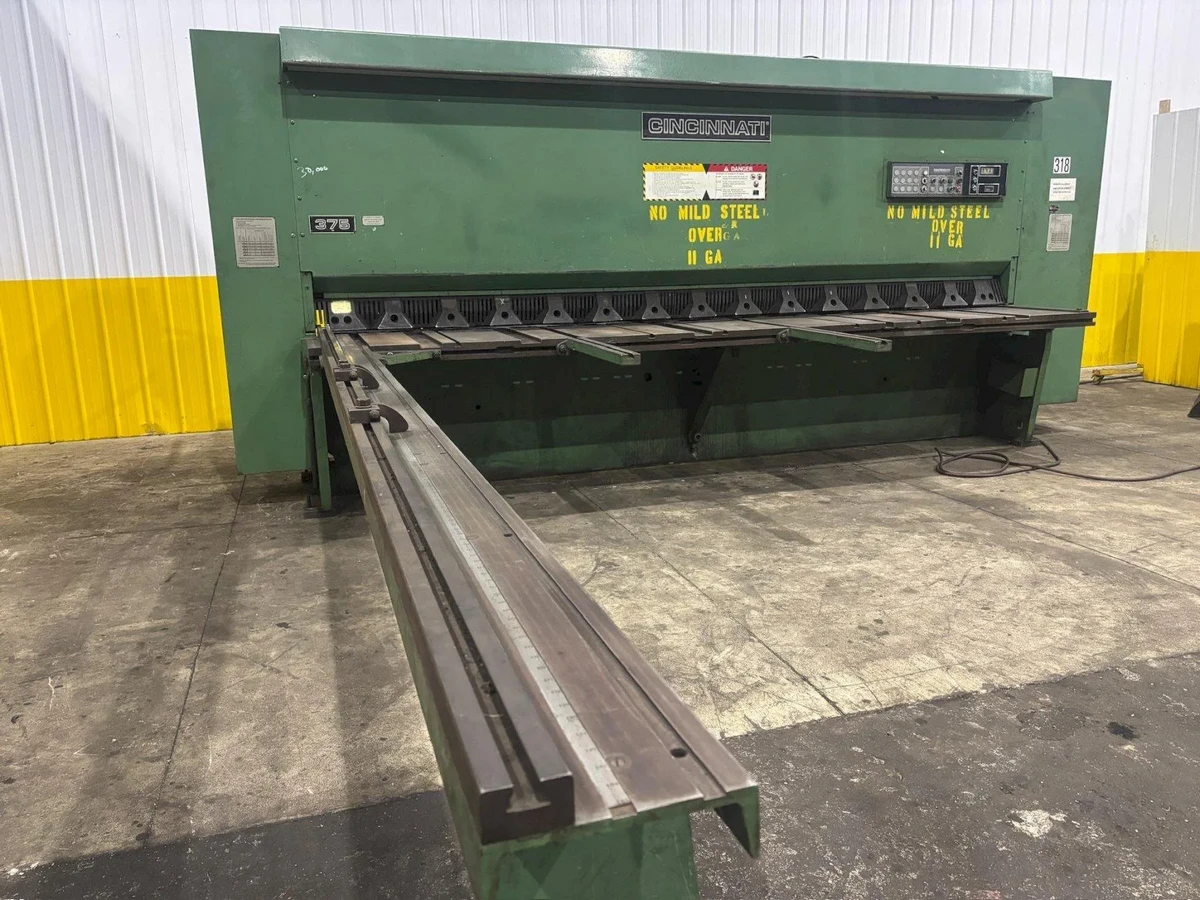

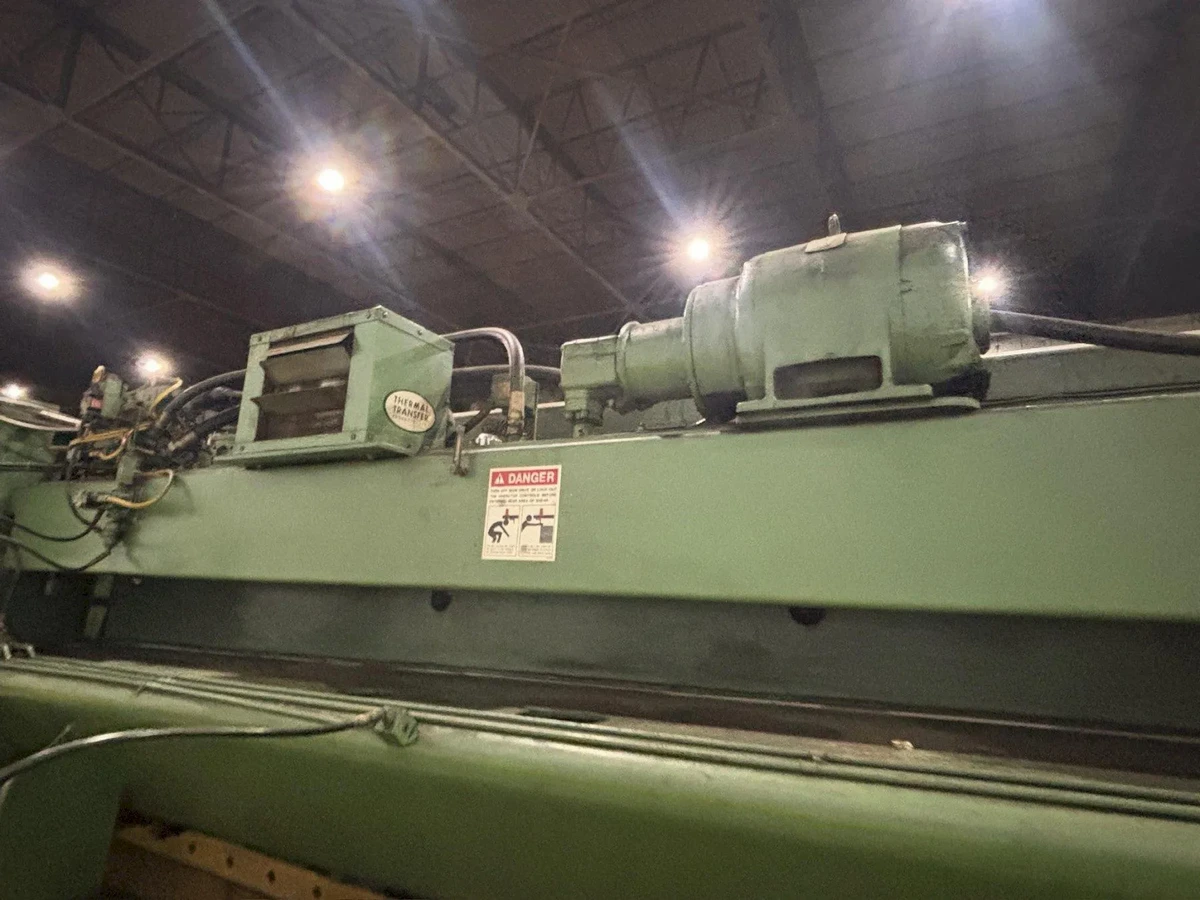

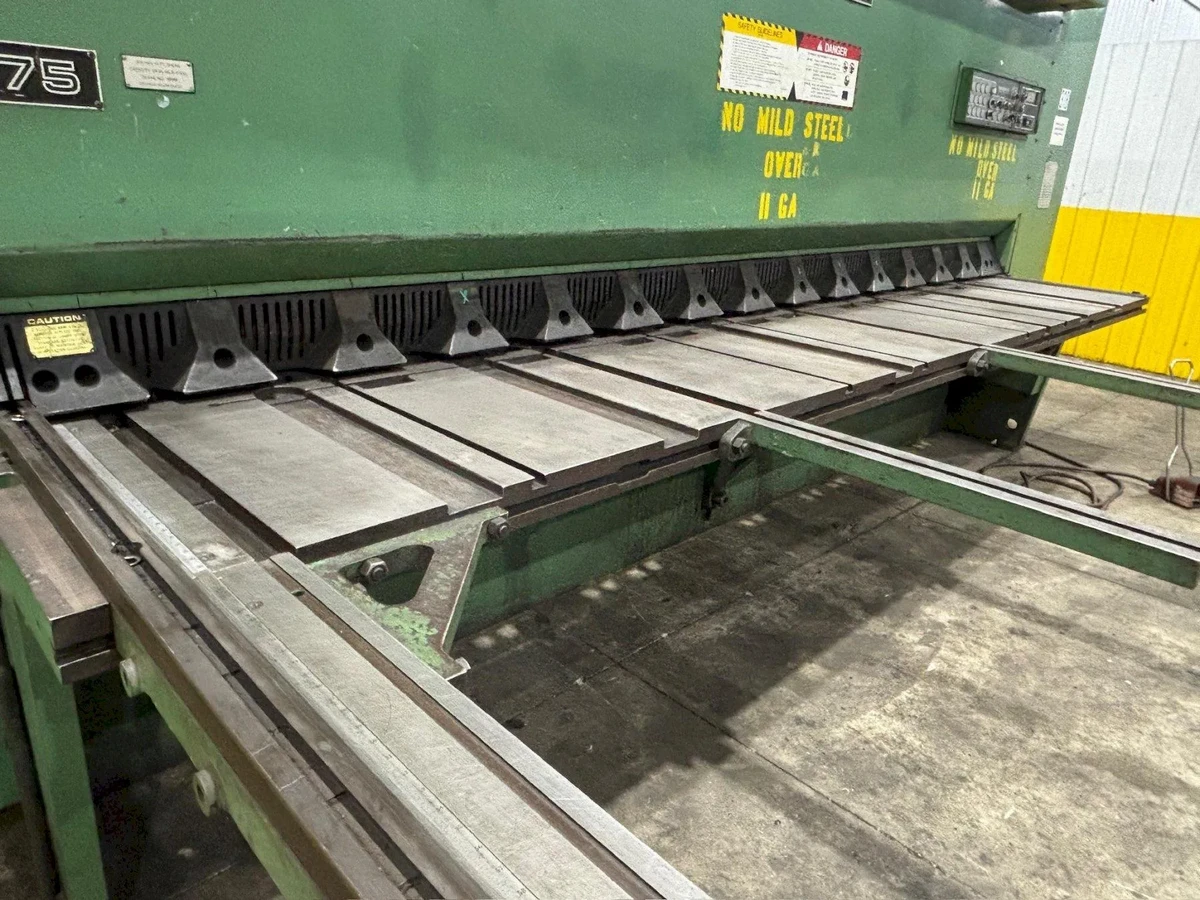

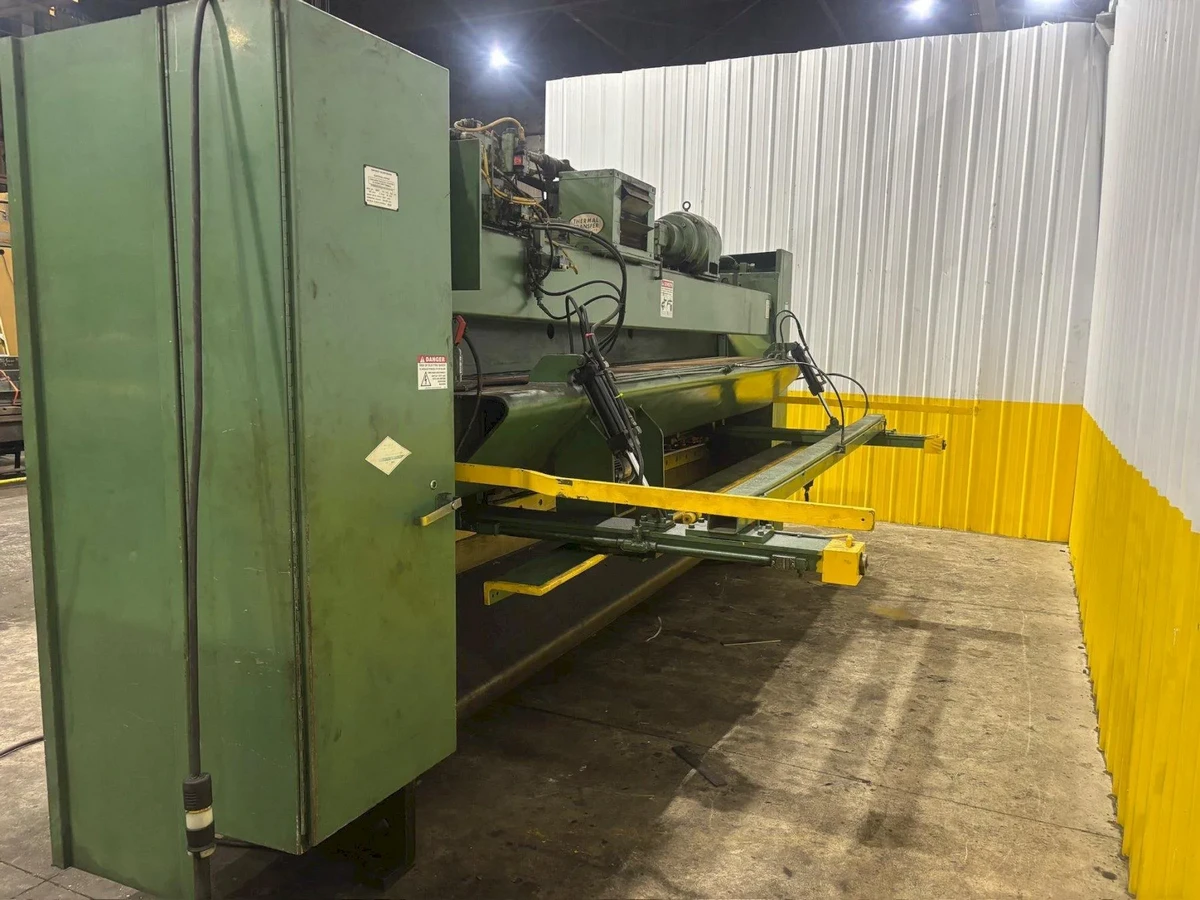

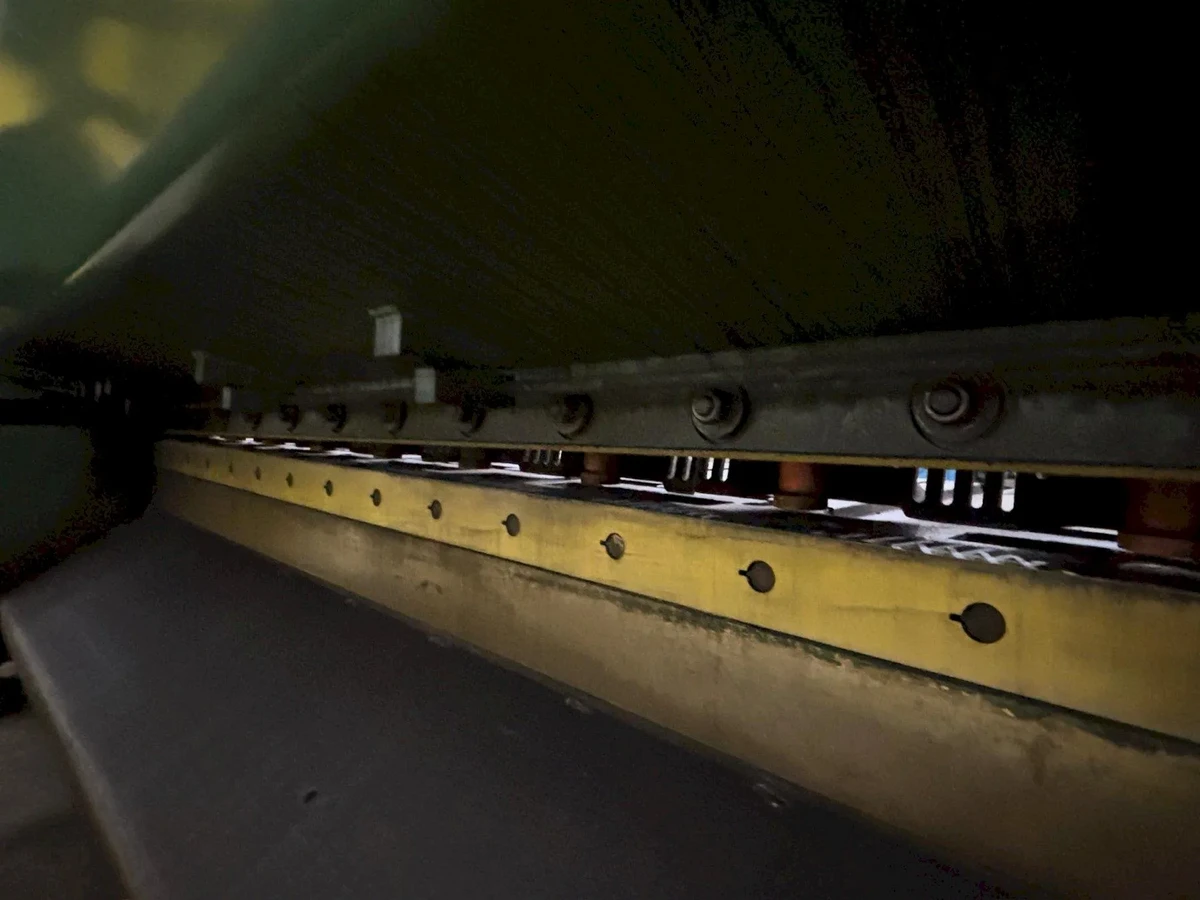

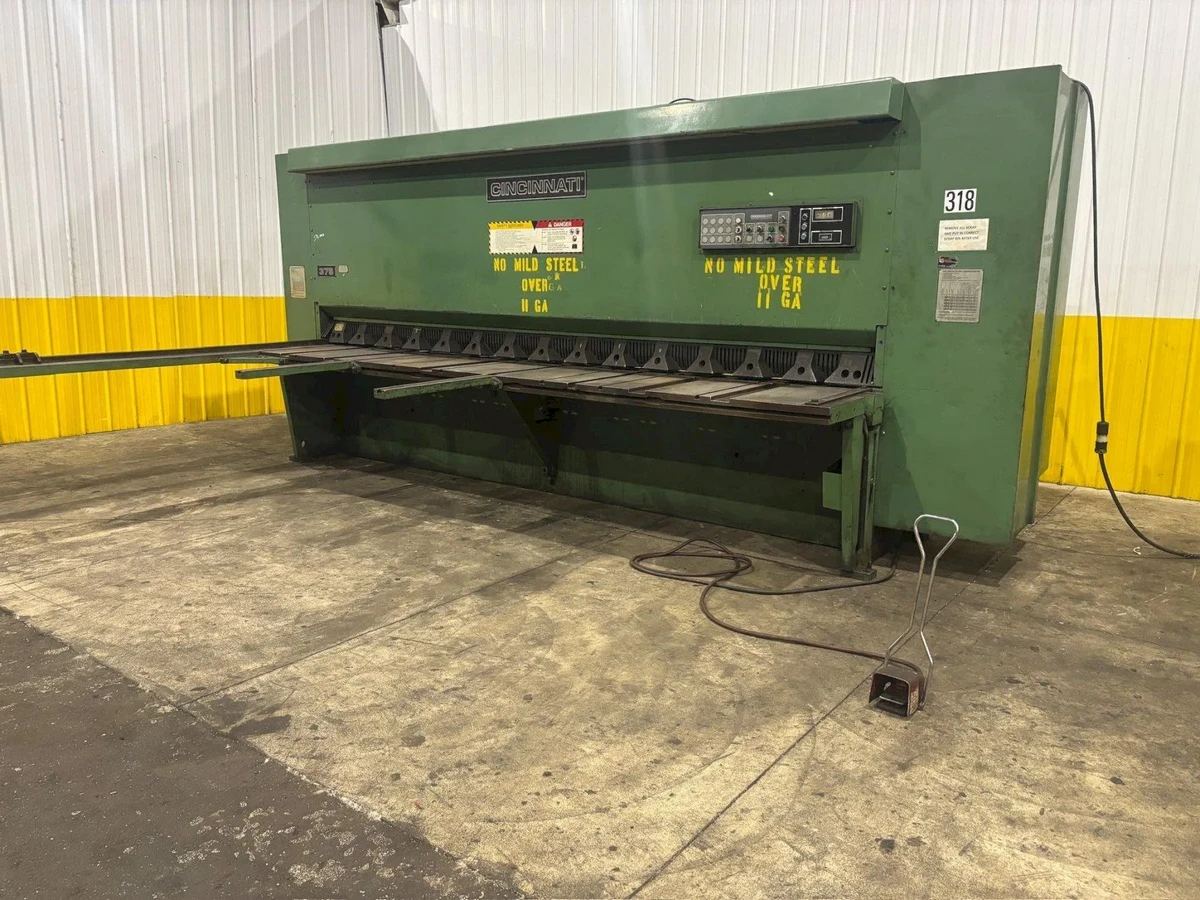

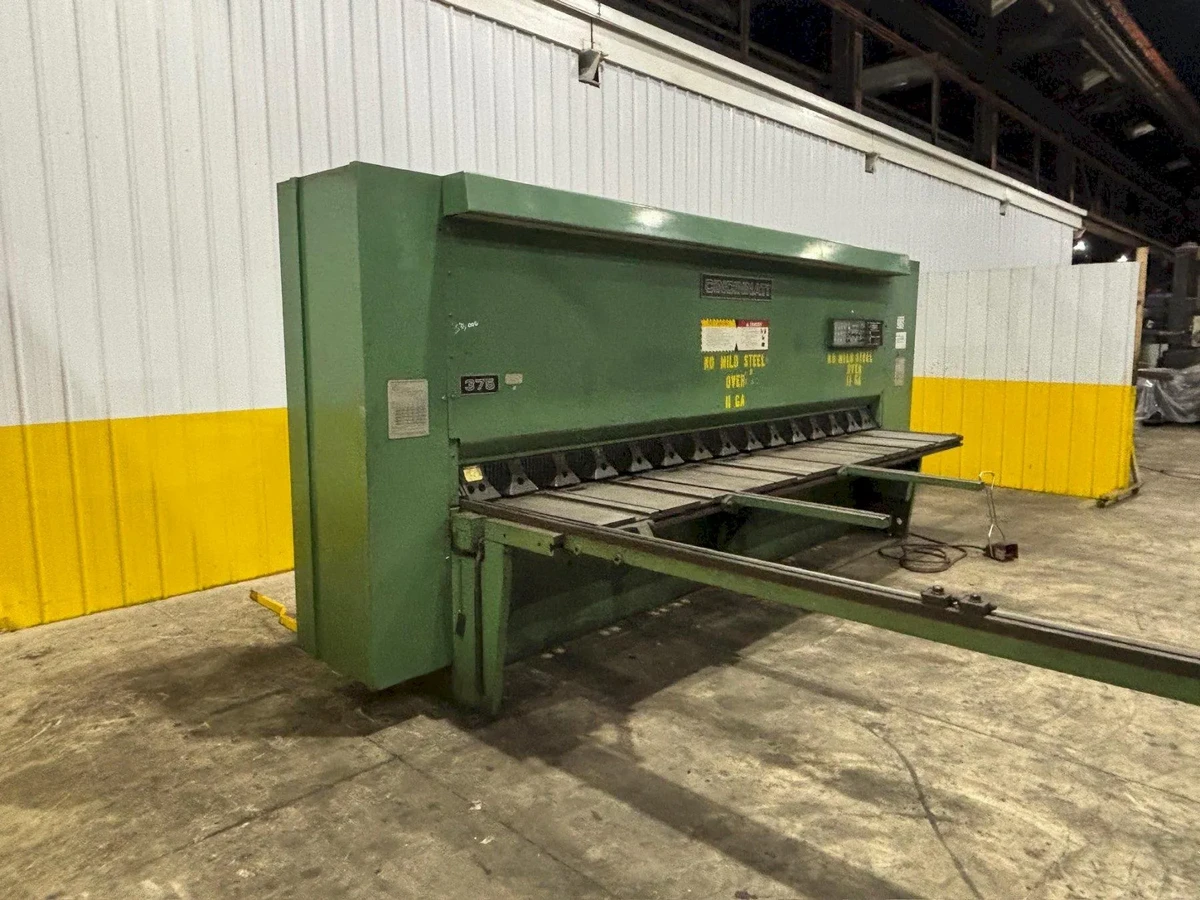

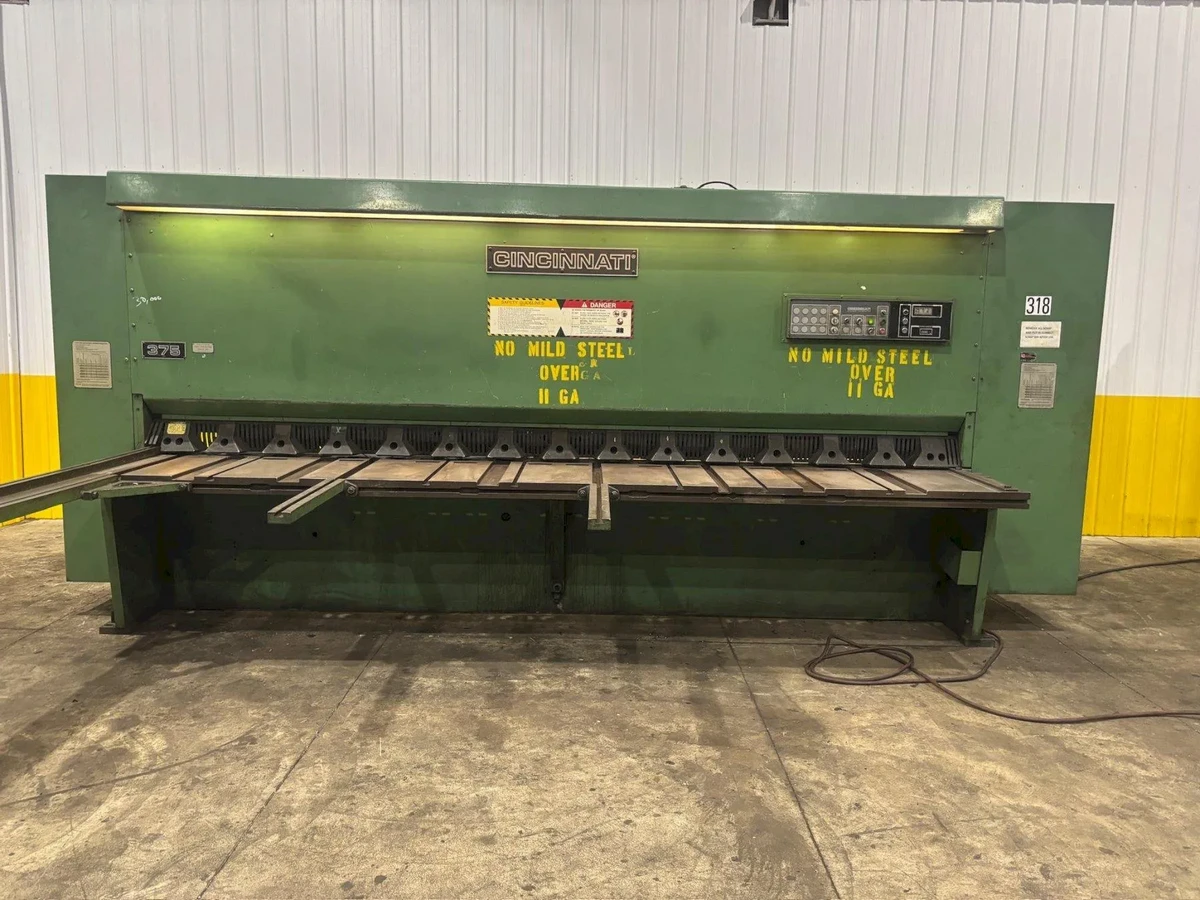

Used Cincinnati 375HSx14 (1998) Shear for Sale. This hydraulic Cincinnati shear has a 3/8″ capacity and a 14′ maximum shearing length, with 172″ knives and 17 holddowns rated at 1925 tons of holddown force, allowing 5/8″ distance under the holddowns. It includes a 48″ front operated power back gauge with a 1/2 HP back gauge motor, a 12′ squaring arm, and a 25 HP hydraulic pump motor running 7 to 41 SPM. Equipped with (2) stock support arms, (6) dovetail slots on the top of the bed, a dovetail slot at the front of the bed, fast/slow reverse readout, key selector switch, material thickness and length knobs, rear parts chute, stroke counter, up/down gauge selector switch, start/stop push buttons, transfer balls, and an electric foot switch. Floor standing. Available to see under power for inspection. Activate Pricing or Request a Quote, and view more used shears.
Specifications
| Capacity |
3/8" |
|---|---|
| Max Shearing Length |
14' |
| Back Gauge |
48" Front Operated Power |

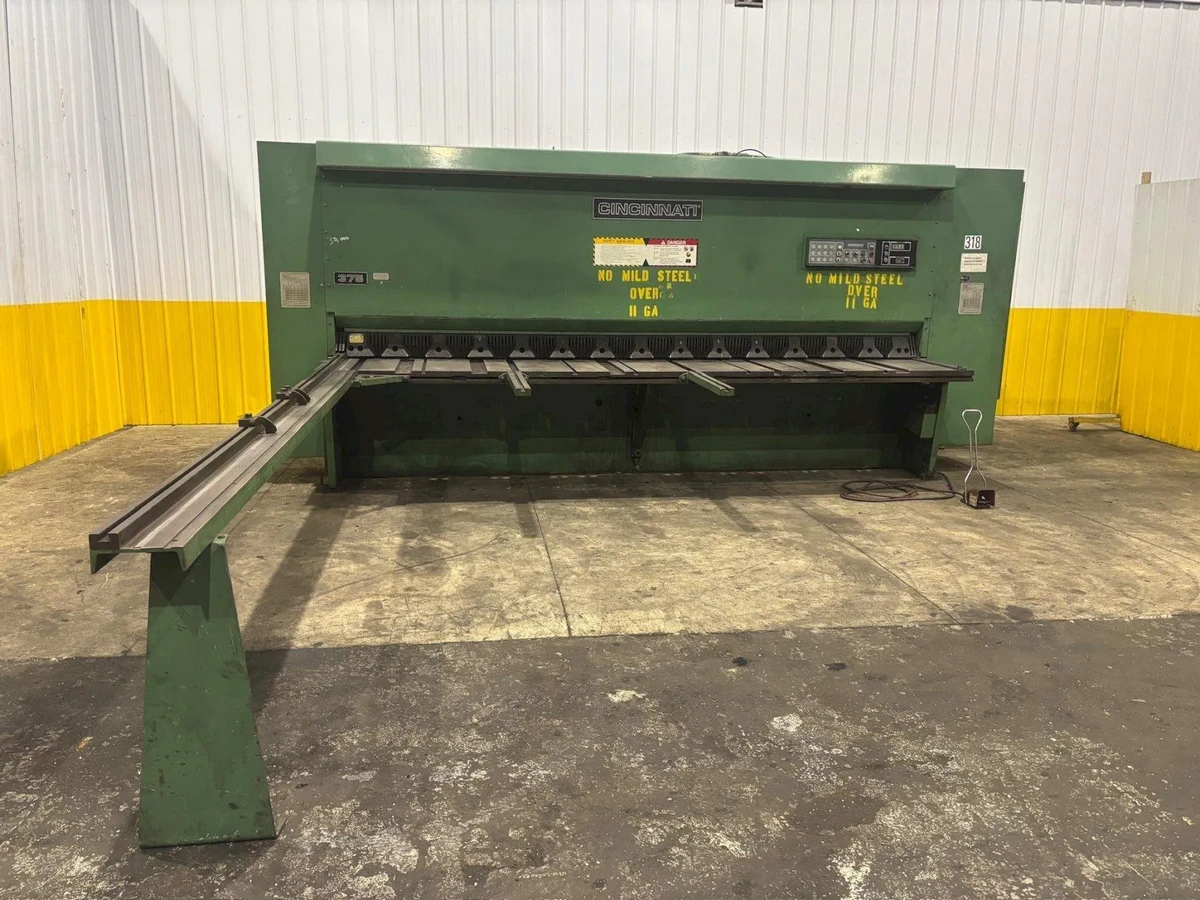

| Squaring Arm |
12' |
| Number of Holddowns |
17 |
| Force of Holddowns |
1925 Tons |
| Distance under Holddowns |
5/8" |
| Length of Knives |
172" |
| Min/Max SPM |
7 / 41 |
| Backgauge Motor |
1/2 HP |

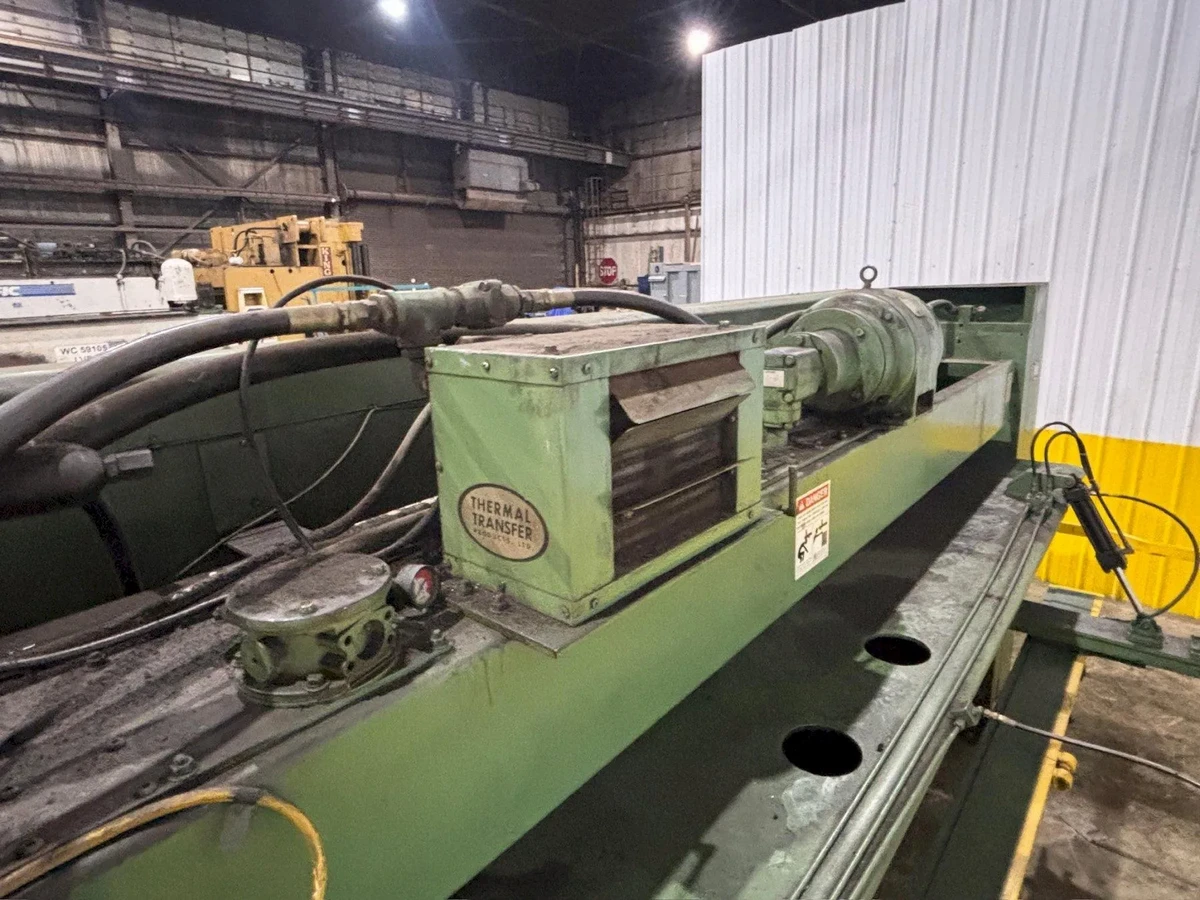

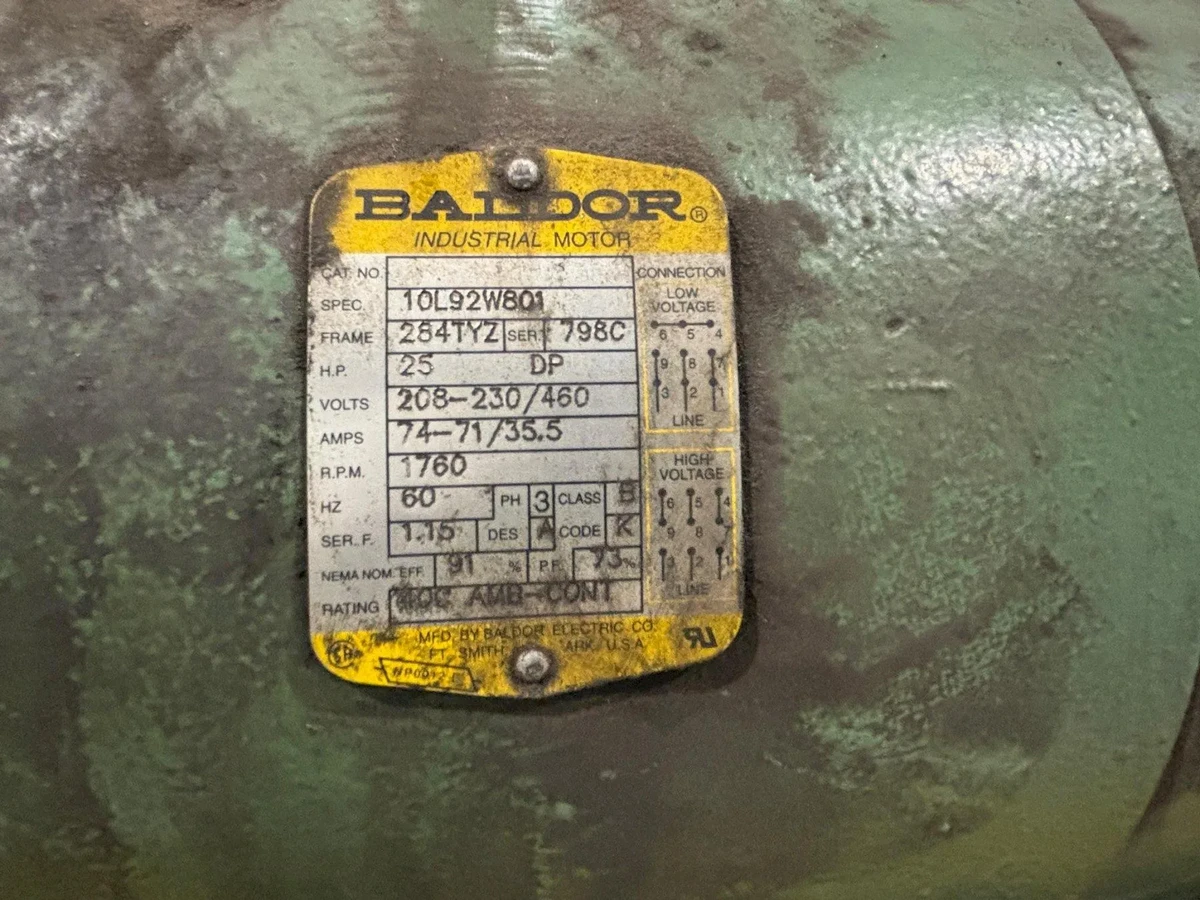

| Hydraulic Pump Motor |
25 HP |
Features
|

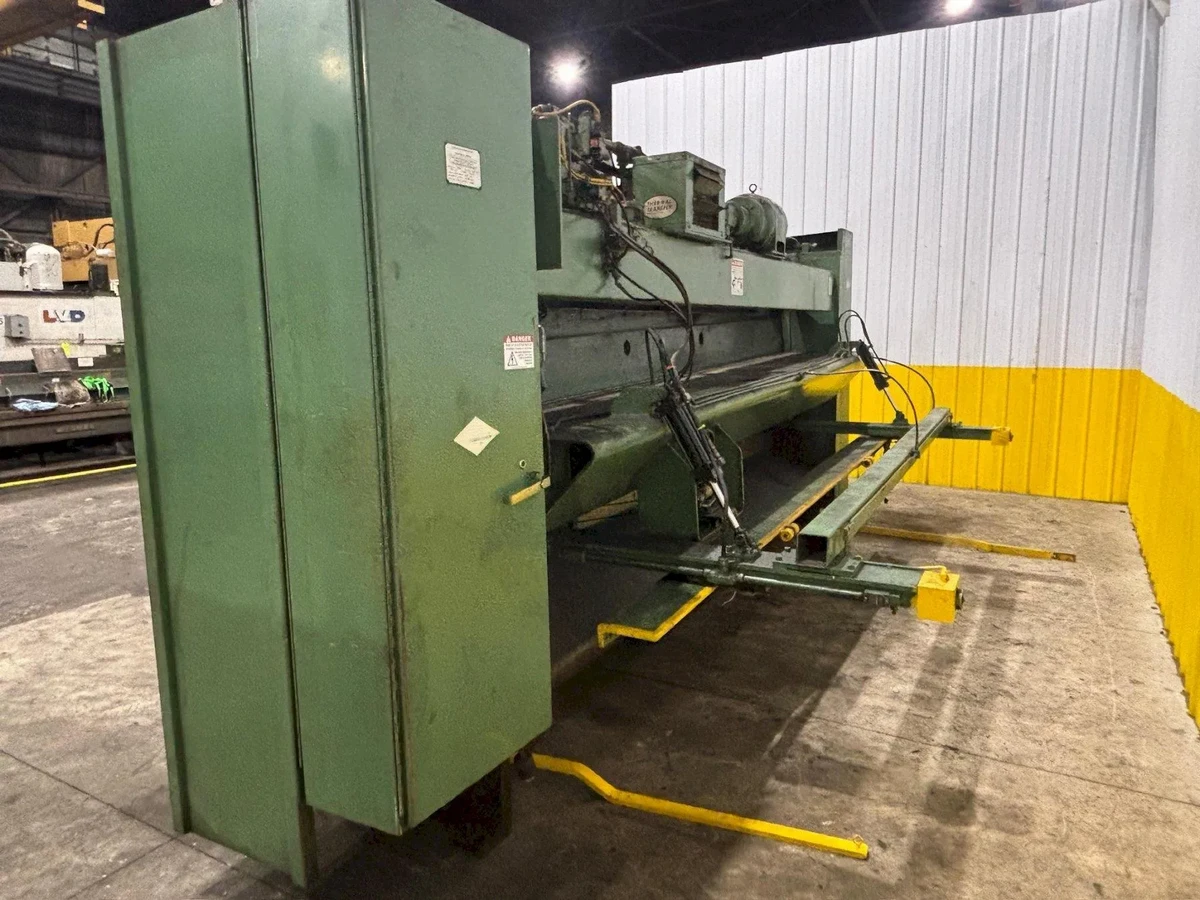

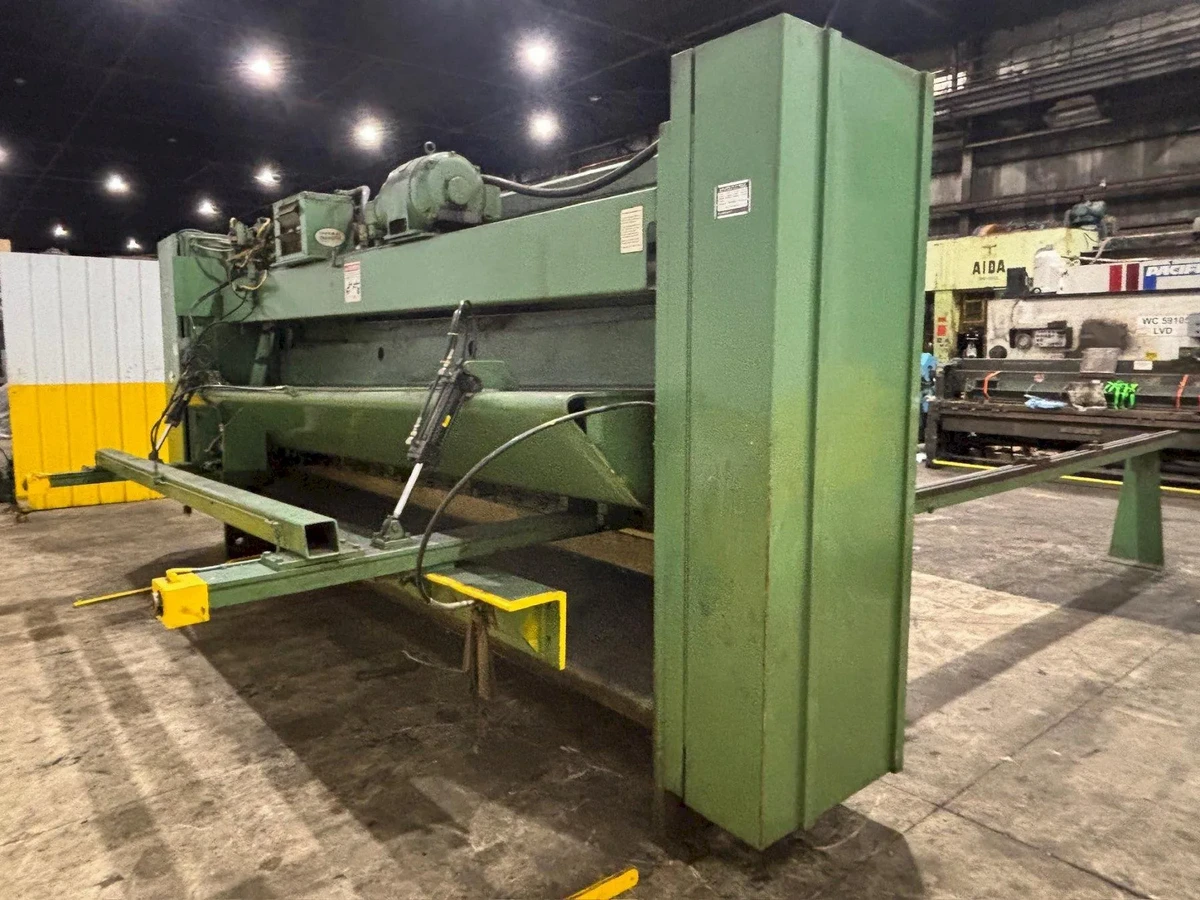

(2) Stock Support Arms |
(6) Dovetail Slots (Top of Bed) |
|
Dovetail Slot (Front of Bed) |

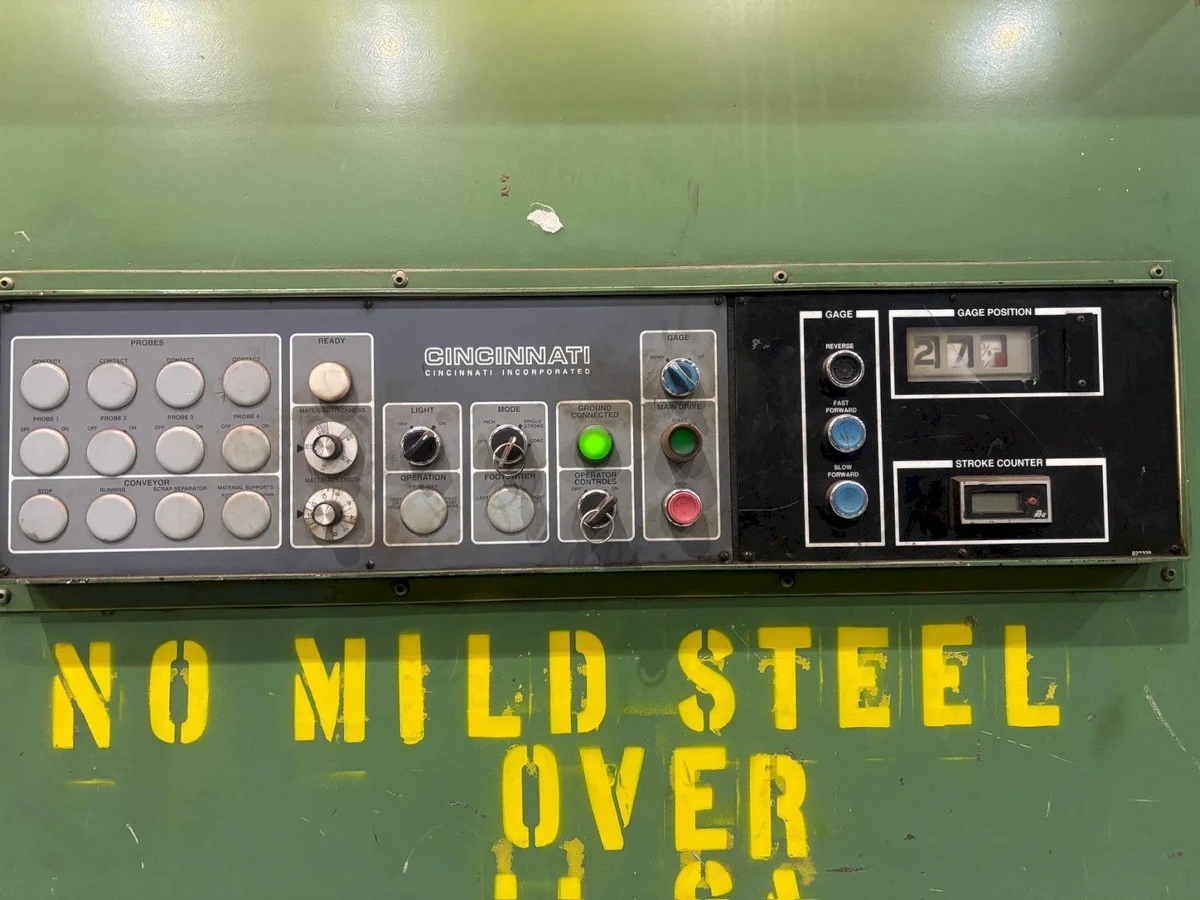

Fast/Slow Reverse Readout |
|
Key Selector Switch |
Material Thickness and Length Knobs |
|
Rear Parts Chute |
Stroke Counter |
|
Transfer Balls (Top of Table) |
Up/Down Selector Switch for Gauge |
|
Push Buttons for Start/Stop |

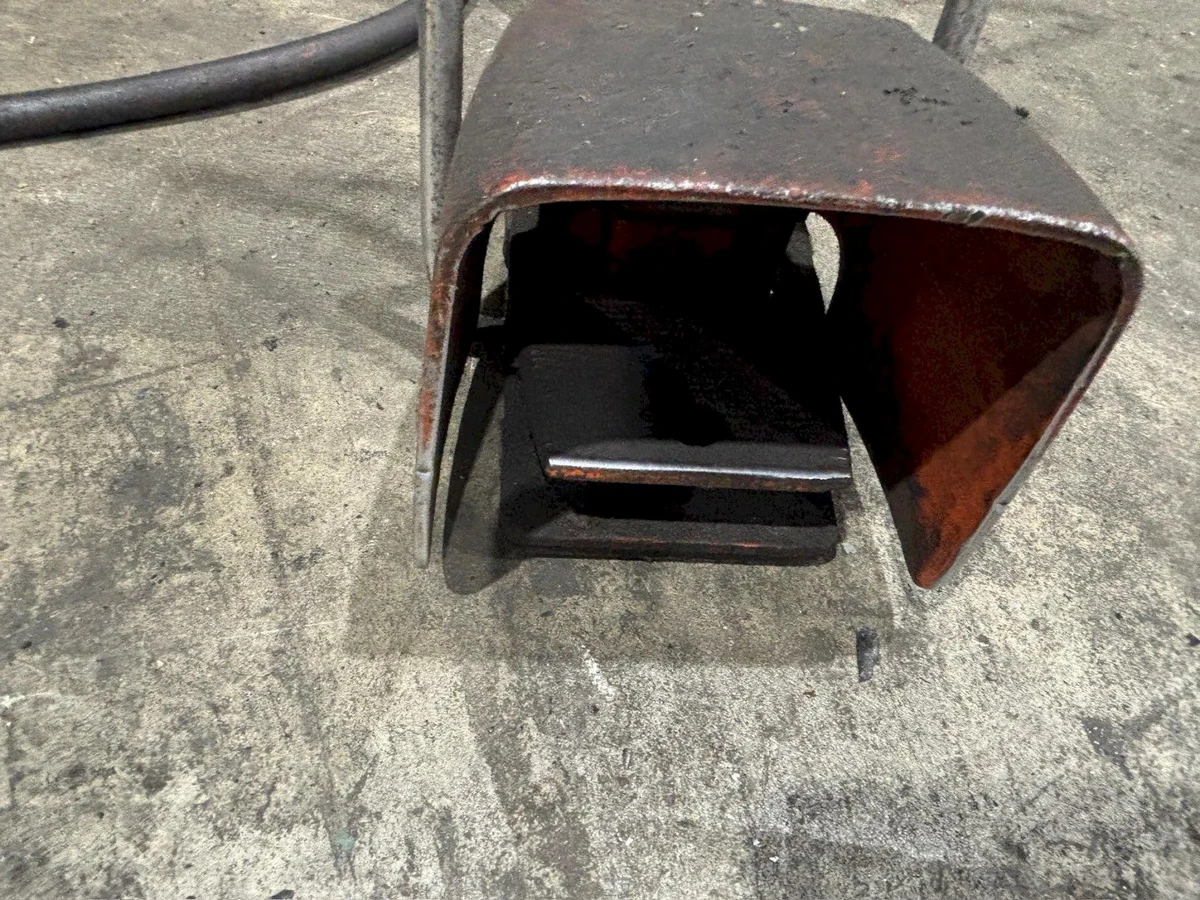

Electric Foot Switch |
|
Floor Standing |
