Year |
1998 |
|---|---|
Make |
Betenbender |
Model |
6-50T |
Description |
50 Ton x 6' Hydraulic Press Brake |
Reference # |
8075471 |
Price |
Activate Pricing |

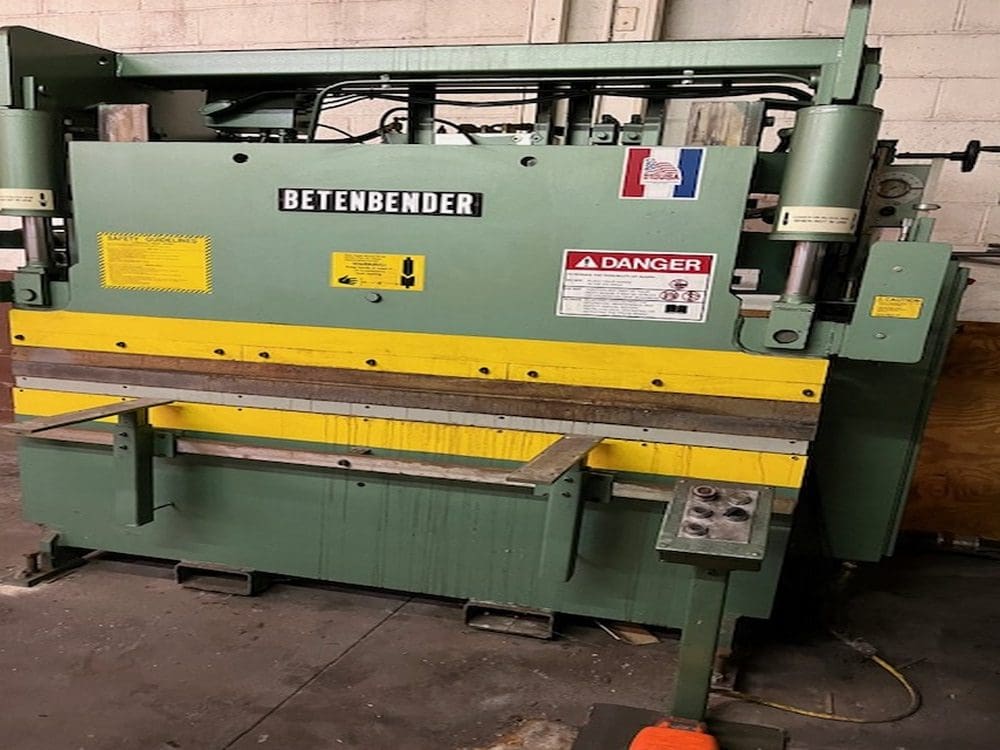

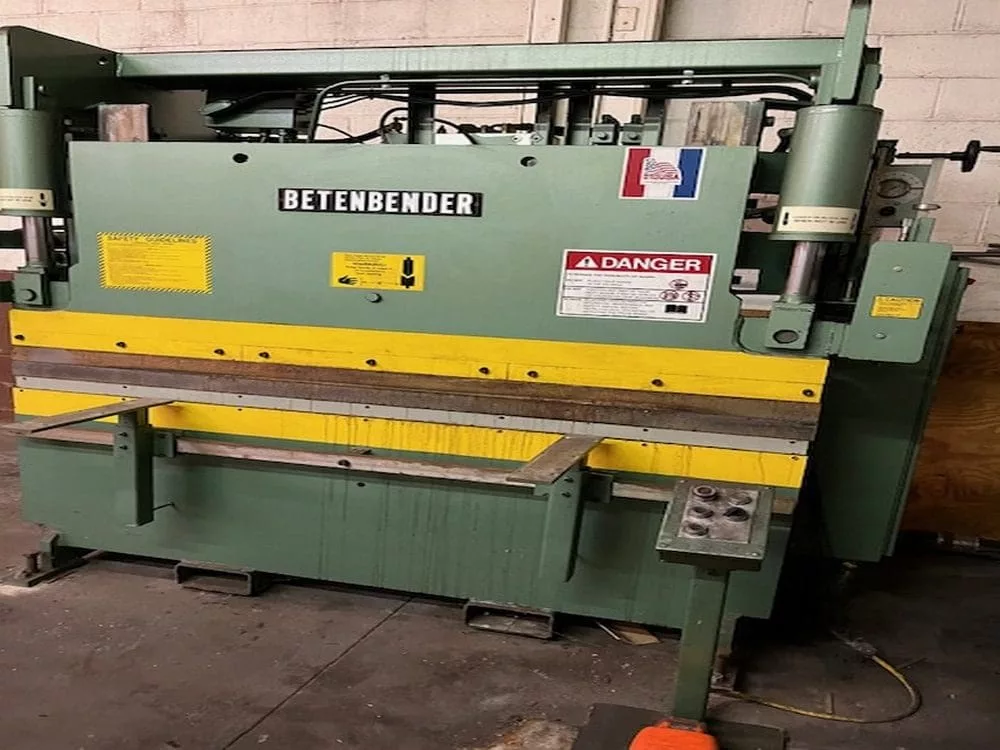

Used Betenbender 6-50T (1998) Press Brake for Sale. This hydraulic press brake is rated at 50 ton capacity with a 6′ overall bed length and 54 1/2″ between housings. It runs an 8″ stroke, 8″ throat depth, 14″ open height and 6″ closed height, with hydraulic pressure of 2,750 PSI and a 10 HP motor. Controls are pedastool type with a 3 speed ram, bottom time delay and disconnect switch. The 24″ manual clamp type back gauge is adjustable in X, Y and Z with a multi switch panel and foot switch. Power requirement is 230/3/60. Weight is 6,800 lbs., dimensions 87″ x 45″ x 104″. The machine can be seen under power for an inspection. See more used press brakes, Activate Pricing, or Request a Quote.
Specifications
| Capacity |
50 Ton |
|---|---|
| Overall Length of Bed |
6' |

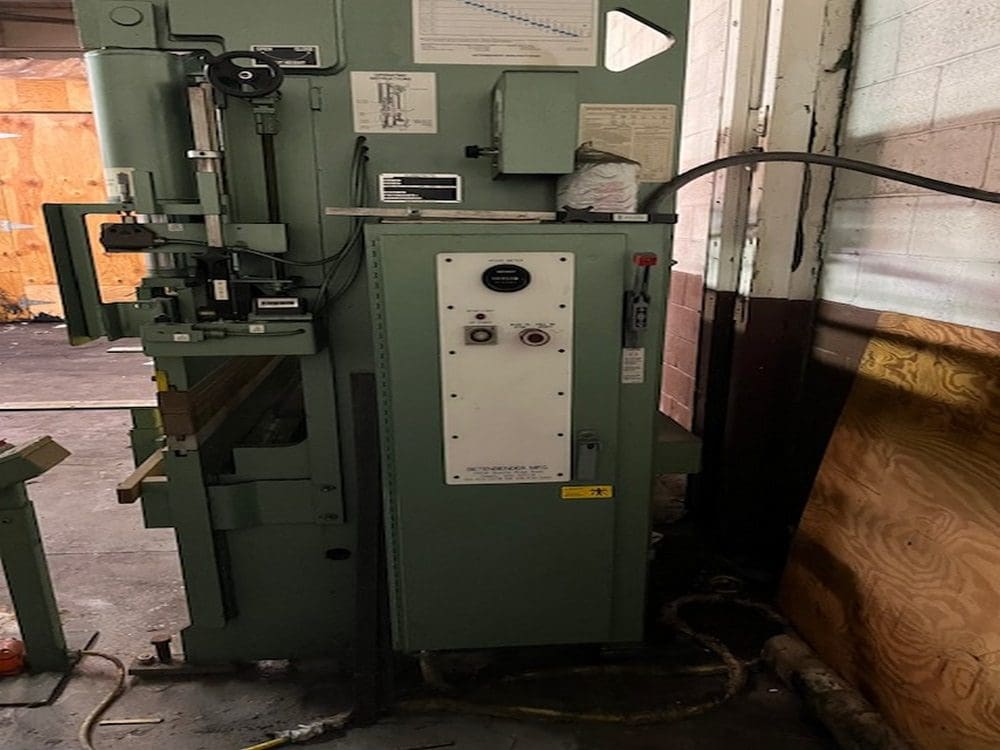

| Control |
Pedastool |
| Back Gauge |
Multi Switch Panel/Foot Switch, 24″ Manual Clamp Type, Adjustable X, Y, and Z |
| Distance Between Housings |
54 1/2" |
| Stroke |
8" |
| Throat Depth |
8" |
| Open Height |
14" |
| Closed Height |
6" |
| Power Requirement |
230/3/60 |
| Width of Bed |
2″ |
| Width of Upper Machined Ram |
1 3/4″ |
| Width of Upper Ram |
2″ |
| Width of Upper End Plates |
36" |
| Return to Open |
92" |
| Hydraulic Pressure |
2,750 PSI |
| Dimensions |
87" x 45" x 104" |
| Weight |
6,800 Lbs. |
Features
|
10 HP Motor |
3 Speed Ram |
|
Bottom Time Delay |
Disconnect Switch |
