Year |
1997 |
|---|---|
Make |
Sterling |
Model |
Dual 5 Lb |
Description |
Blow Molder |
Reference # |
8078234 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

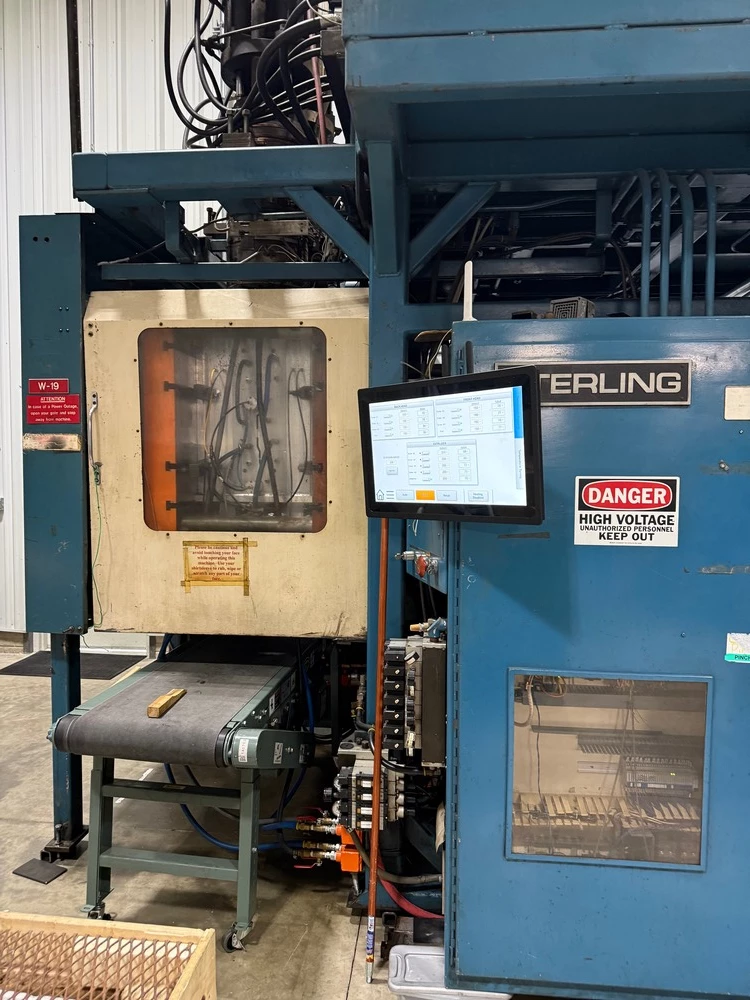

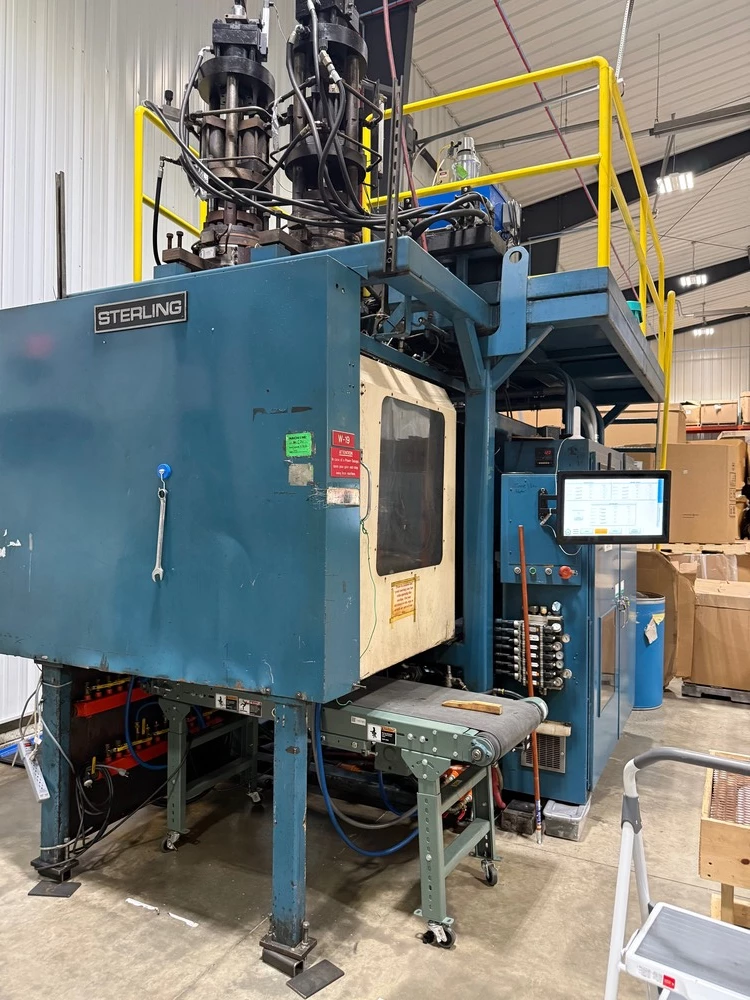

Used Sterling Dual 5 Lb (1997) Blow Molder for Sale. This machine runs dual heads with a 5 lb head shot size and 21″ head center spacing. Platen size is 42″ x 36″, with vertical adjustment of +/- 4″ and side to side and front to back adjustment of +/- 3″. Minimum and maximum daylight measure 15″ and 39″, with 65 tons of clamp tonnage. Screw size is 3.5″ at a 24:1 L/D ratio, driven by a 125 HP hydraulic drive. It carries a new BR controller and a 100 point parison programmer. The platen hydraulic cylinders were rebuilt, the majority of hydraulic hoses replaced, many hydraulic and air valves replaced, and the electrical cabinet updated. Available to be seen under power for inspection. See more used blow molding machines, [Activate Pricing](#activate-pricing), or Request a Quote.
Specifications
| Number of Heads |
Dual Heads |
|---|---|

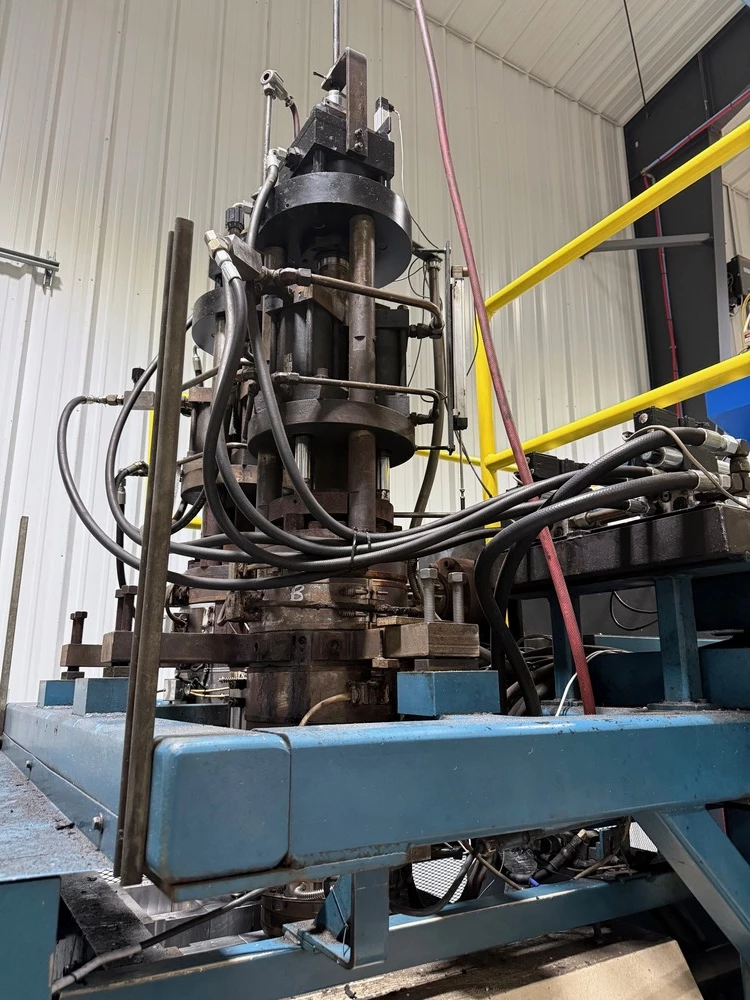

| Head Shot Size |
5 Lcs |
| Head Center Spacing |
21" |
| Platen Size |
42" x 36" |
| Platen Adjustment |
Vert. (+/- 4") / Side to Side & Front to Back (+/- 3") |
| Min / Max Daylight |
15" / 39" |
| Clamp Tonnage |
65 Tons |
| Screw Size |
3.5" |
| L/D Ratio |
24:1 |
| Horsepower |
125 HP Hydraulic Driven |
| Control |
BR Controller (New) |
| Parison Programmer |
100 Pt. Parison Programmer |
Features
|
Rebuilt the Hydraulic Cylinders on the Platen |
Replaced majority of the Hydraulic Hoses |
|

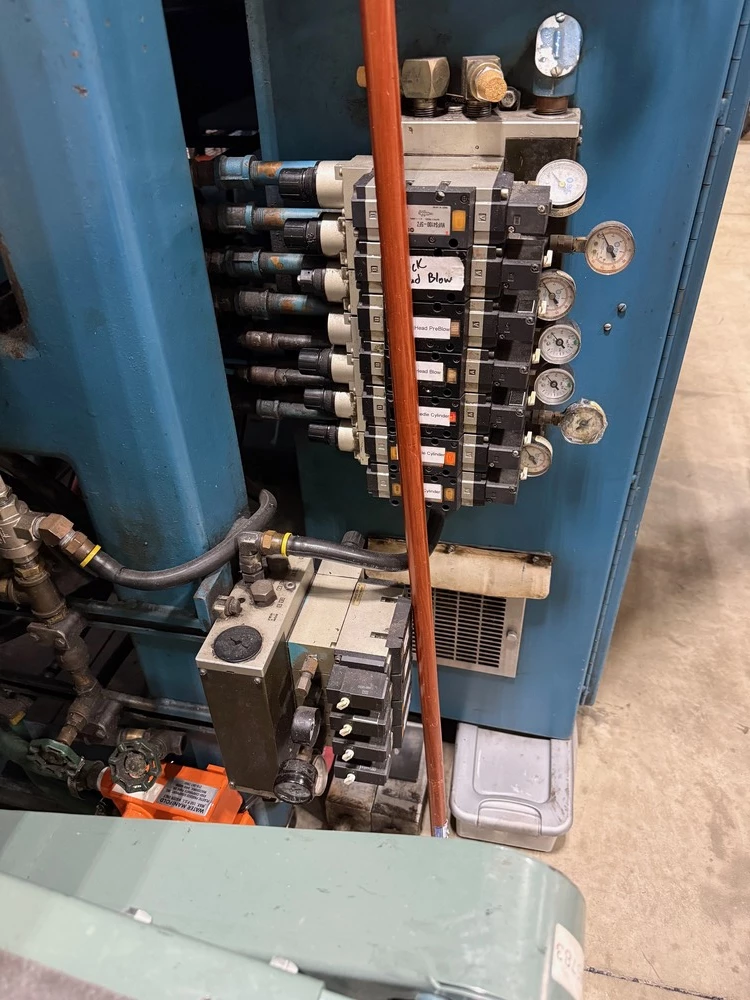

Replaced many of the Hydraulic and Air Valves |

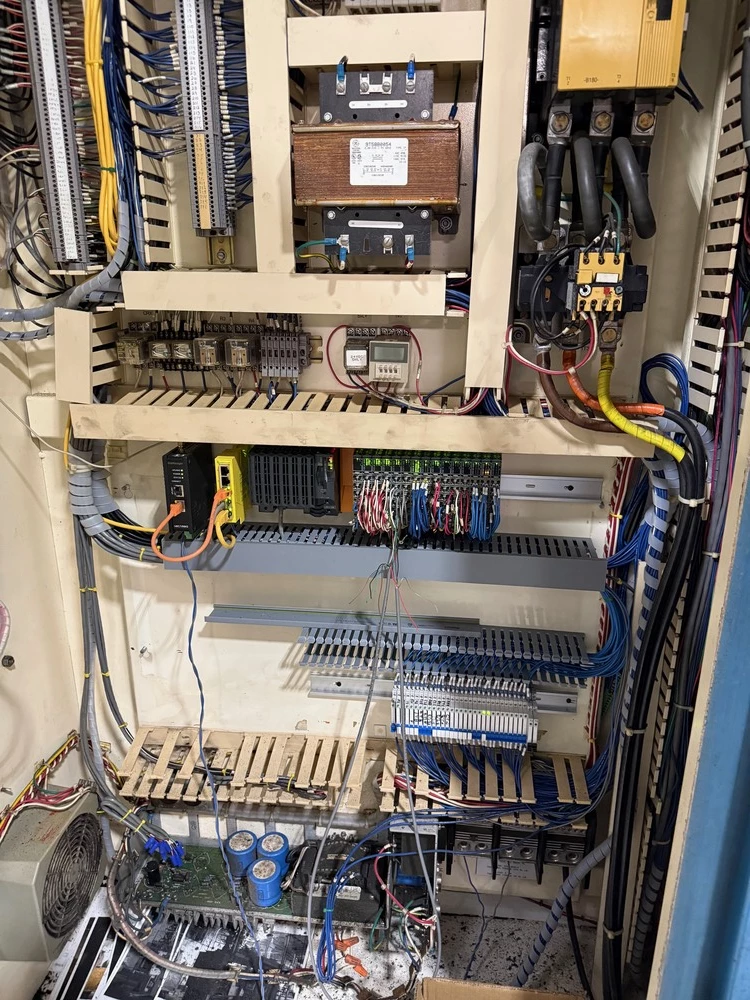

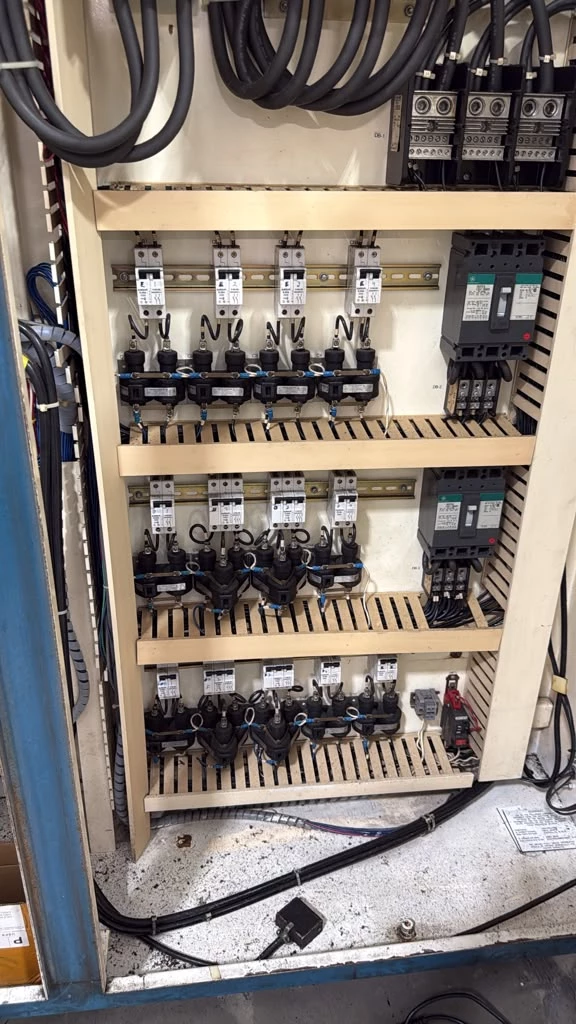

Updated Electrical Cabinet |
