Year |
1997 |
|---|---|
Make |
SNK |
Model |
FSP-120V |
Description |
CNC Vertical Machining Center |
Reference # |
8078222 |
Price |
Activate Pricing |

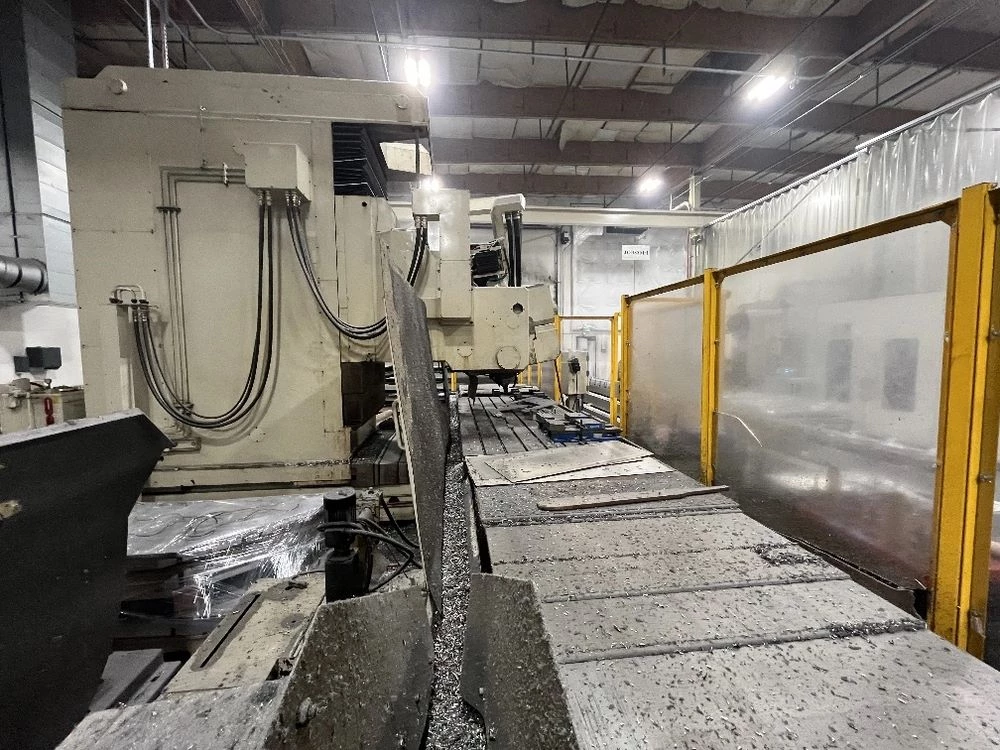

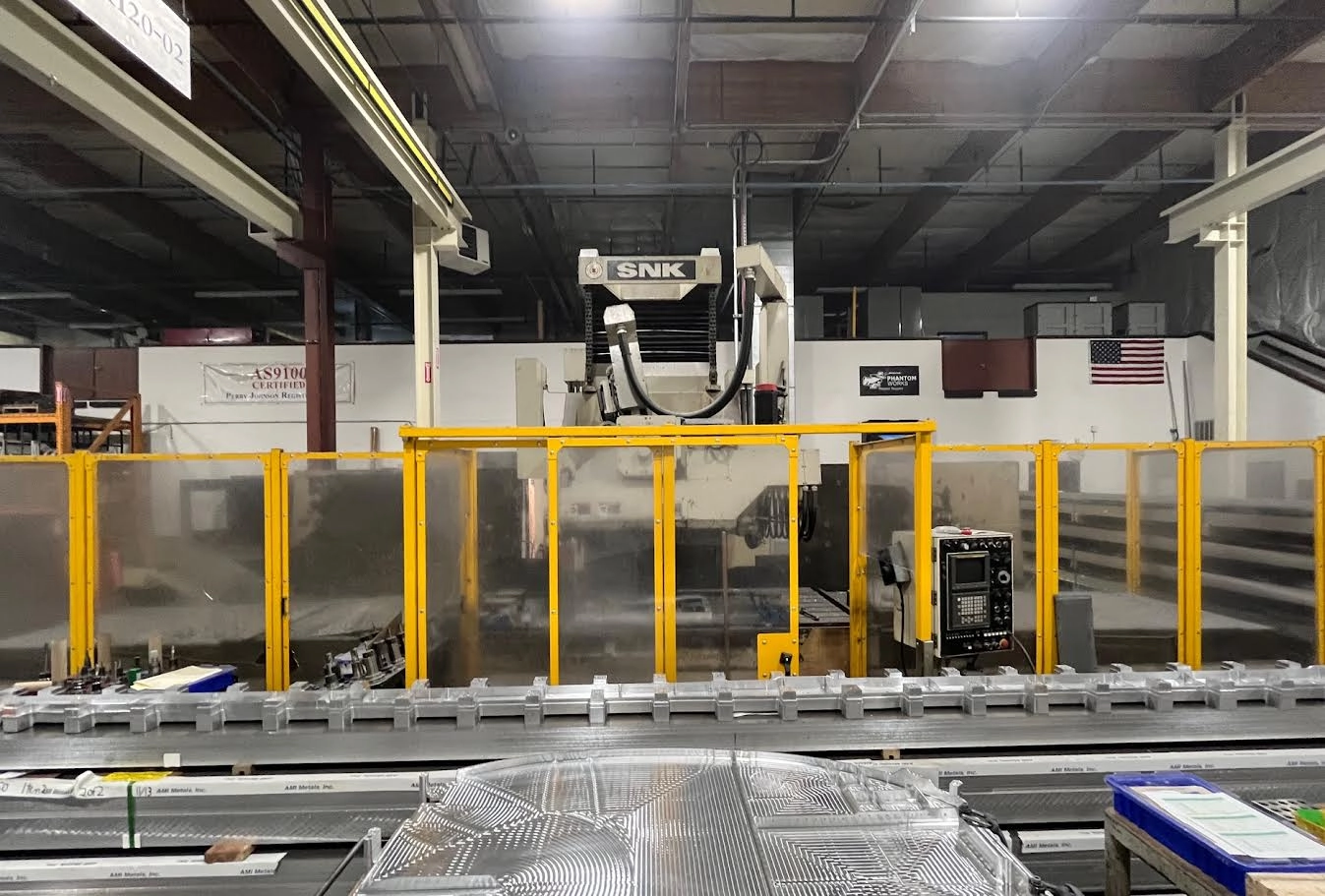

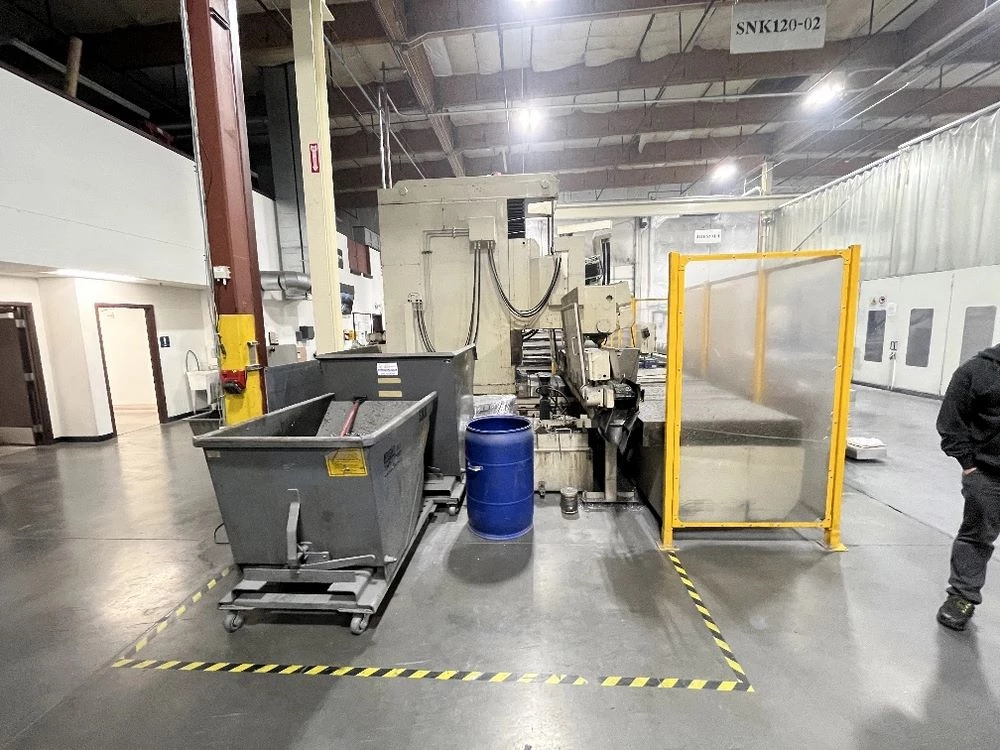

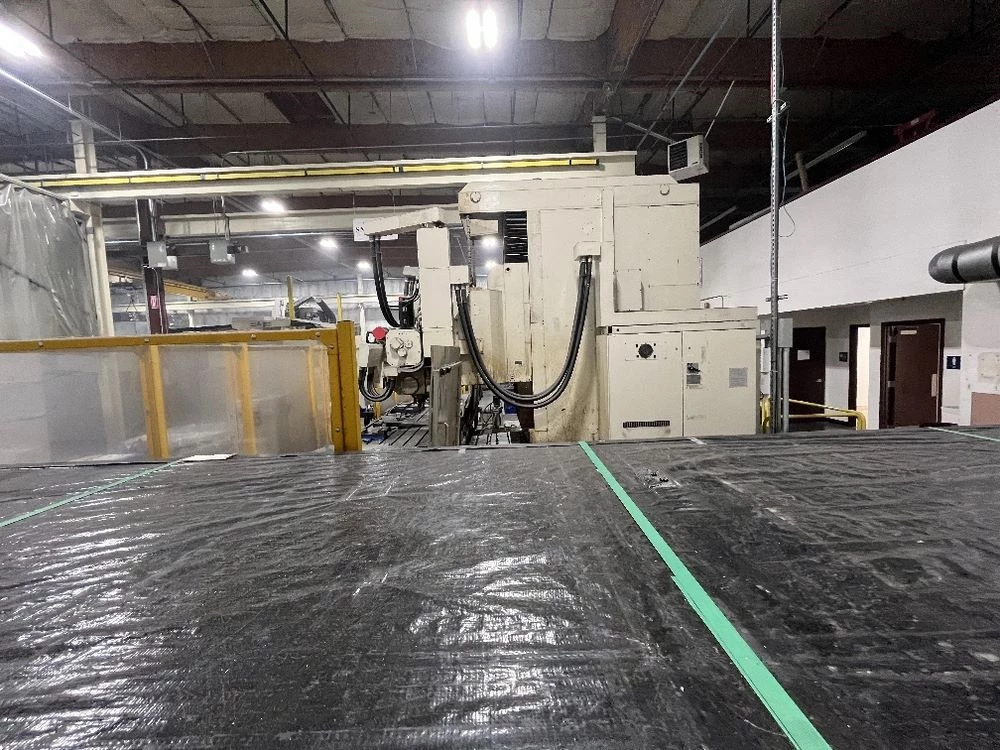

Used SNK FSP-120V (1997) CNC Vertical Machining Center for Sale. This 5-axis CNC vertical profiler offers 120″ of X-axis travel, 50″ in Y, and 24″ in Z, with an articulating 5-axis head providing +/- 25 degree A and B axes. The BT 50 spindle is driven by a 30 HP motor with speeds to 4,000 RPM, and tool changes are handled by a 40-station ATC. Control is Fanuc Series 16-M. Equipped with flood coolant and a chip conveyor. Power requirement is 200/220V, 3 PH. The machine can be seen under power for an inspection by appointment. See more machines in our CNC vertical machining centers inventory, use Activate Pricing, or Request a Quote for details.
Specifications
| X-Axis Travel |
120" |
|---|---|
| Y-Axis Travel |
50" |
| Z-Axis Travel |
24" |
| Spindle Speed |
4,000 RPM |
| Spindle Taper |
BT 50 |
| Spindle Motor |
30 HP |
| Tool Magazine Capacity |
40 ATC |
| Control |
Fanuc Series 16-M |
| Chip Removal |
Chip Conveyor |
| Coolant |
Flood Coolant |
| Power Requirement |
200/220V / 3 PH |
Features
|
+/- 25 Degree A & B Axes |
5-Axis CNC Vertical Profiler |
|
Articulating 5-Axis Head |
