Year

1995

Make

Okada

Model

3024

Description

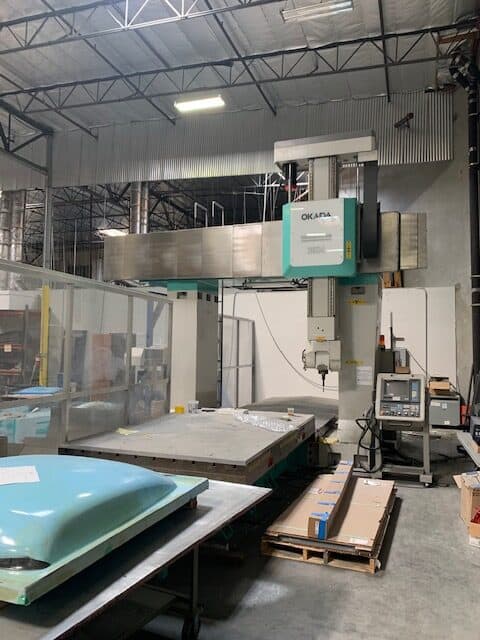

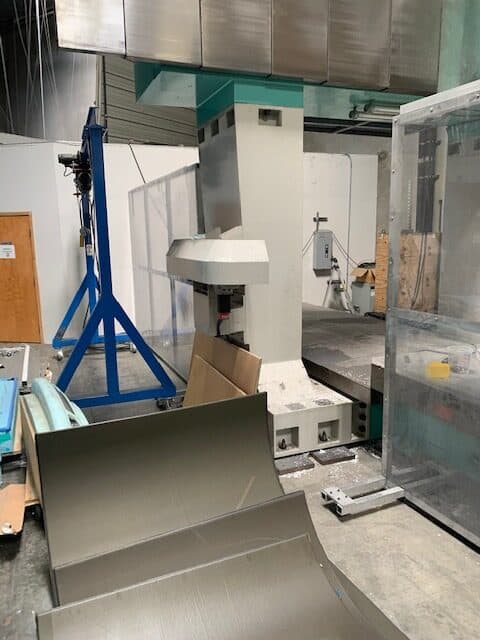

CNC Router

Reference #

8070160

Price

Activate Pricing

This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you.

Specifications

Table Width

78"

Table Length

118"

X-Axis Travel

66"

Y-Axis Travel

124"

Z-Axis Travel

48"

Spindle Speed

10,000 RPM

Spindle Motor

7.5 HP

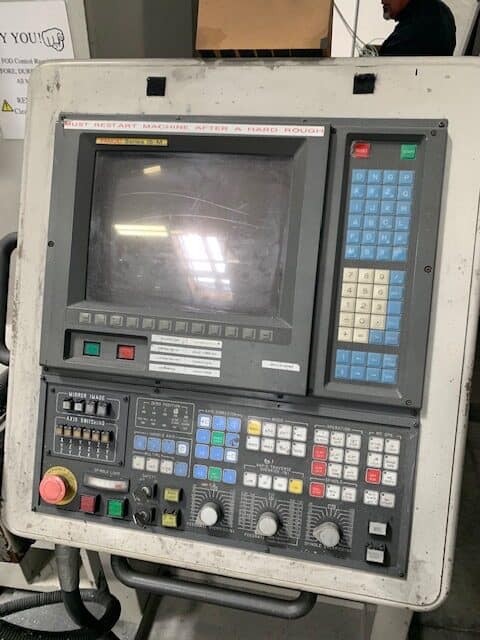

Control

Fanuc 15mb CNC

Maximum Table Load

4,400 Lb

Distance from Floor to Table Surface

31”

X, Y, Z Cutting Feed Rate

0.0394 - 275 IPM

Rapid X, Y Feed Rate

394 IPM

Rapid Z Feed Rate

315 IPM

Distance Between Columns

96”

Maximum Height Under Cross Rail

84”

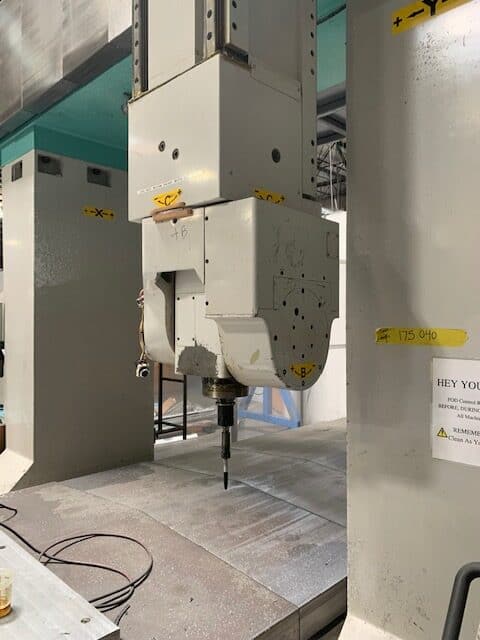

Spindle Nose Taper

BT 40

Spindle Head to Table Surface

10.83” - 50.23”

Degree Spindle Unit Revolutions Direction

0 - 190

Spindle Unit Swinging Direction

+ or - 110 Degree

Features

Full Enclosure

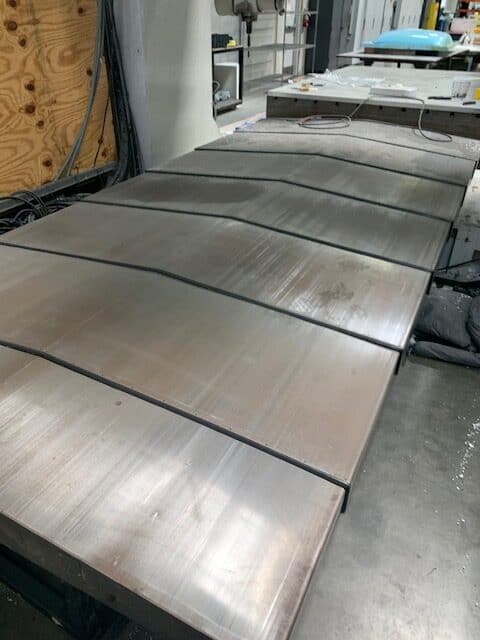

Way Covers

T-Slotted Table

78” Glass Scales on All Linear Axes

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
