Year |
1995 |
|---|---|
Make |
Amada |
Model |
RG-50 |
Description |
55 Ton x 6.8′ Hydraulic Press Brake |
Reference # |
8079056 |
Price |
Activate Pricing |

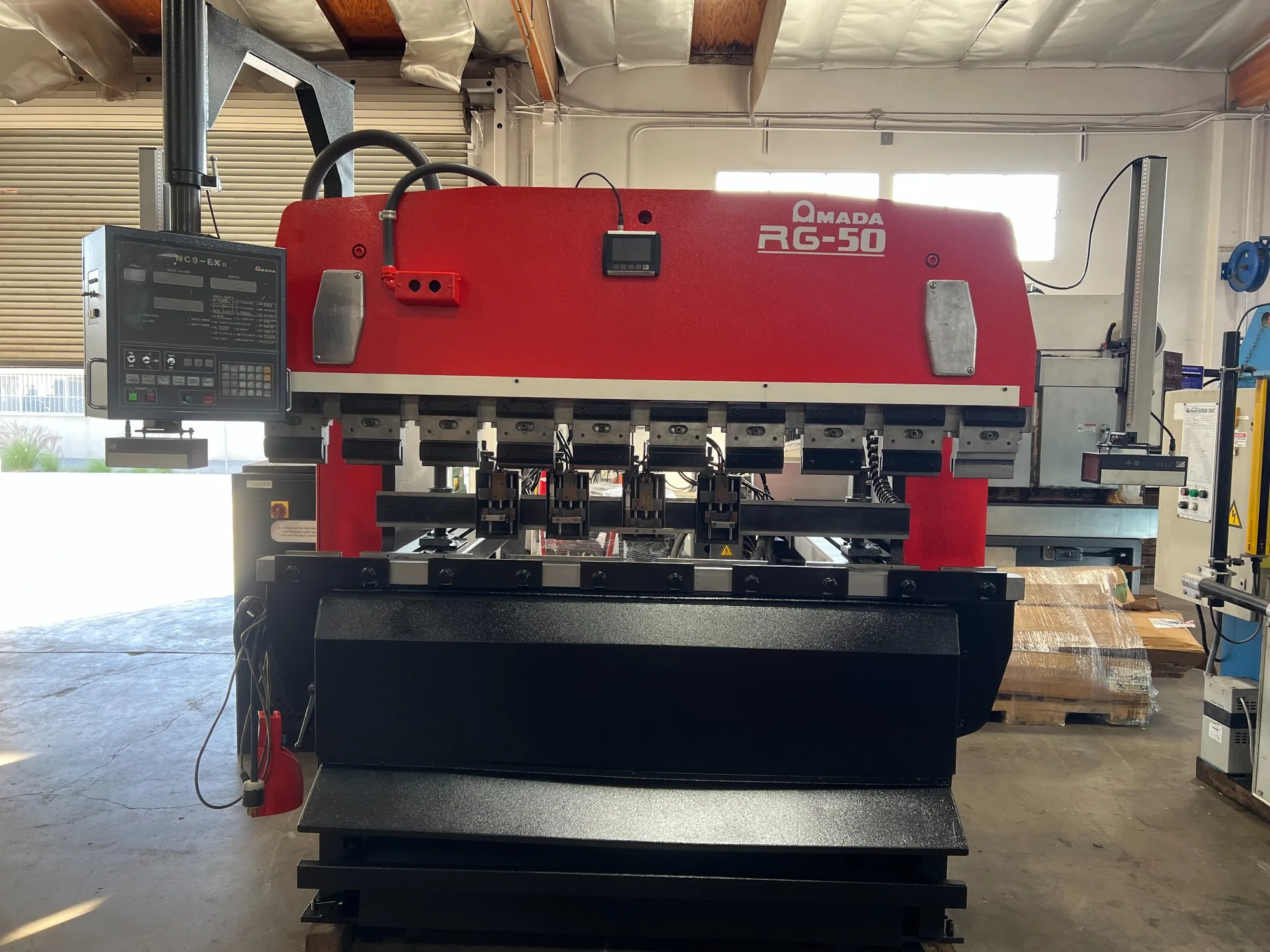

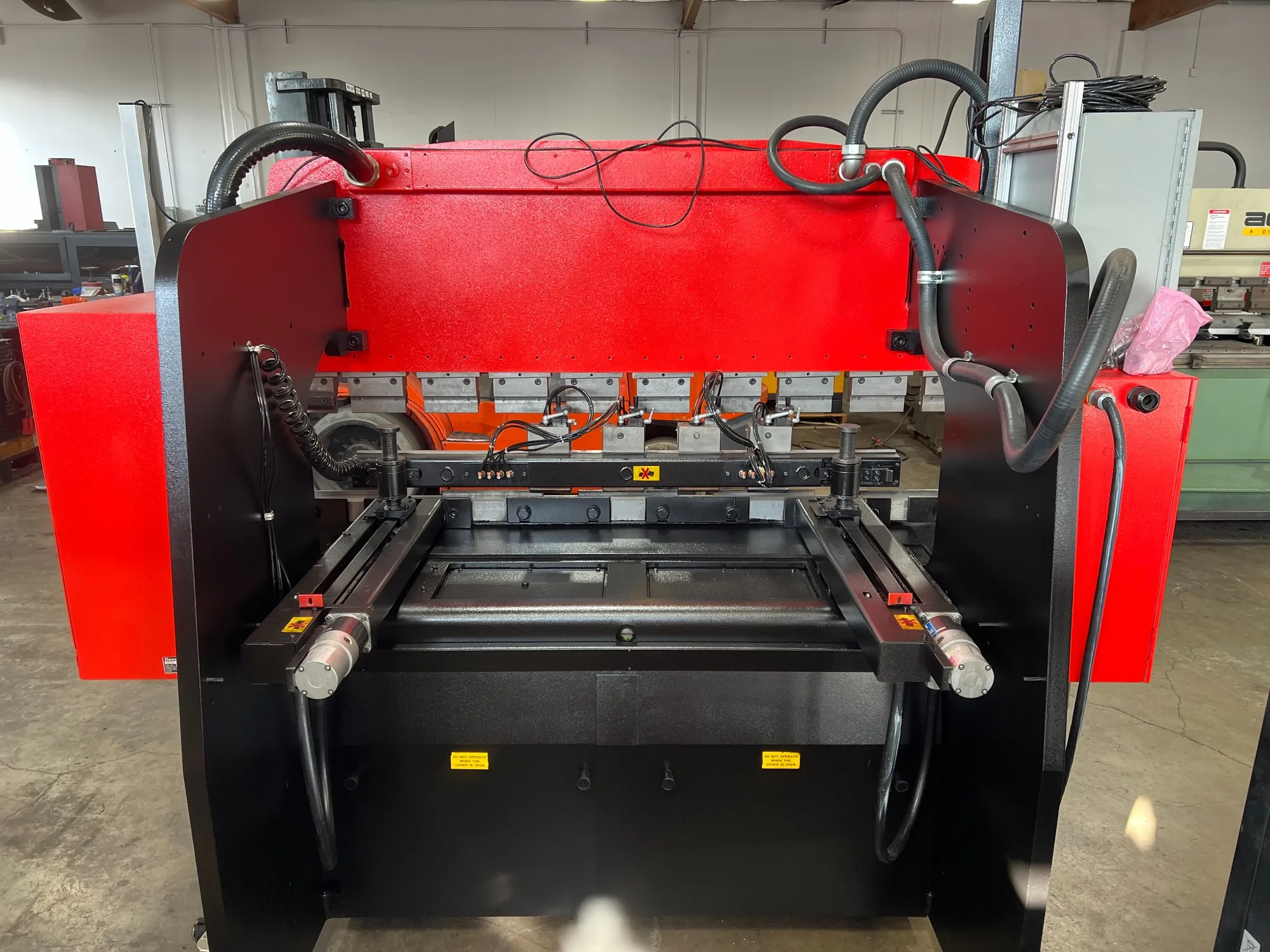

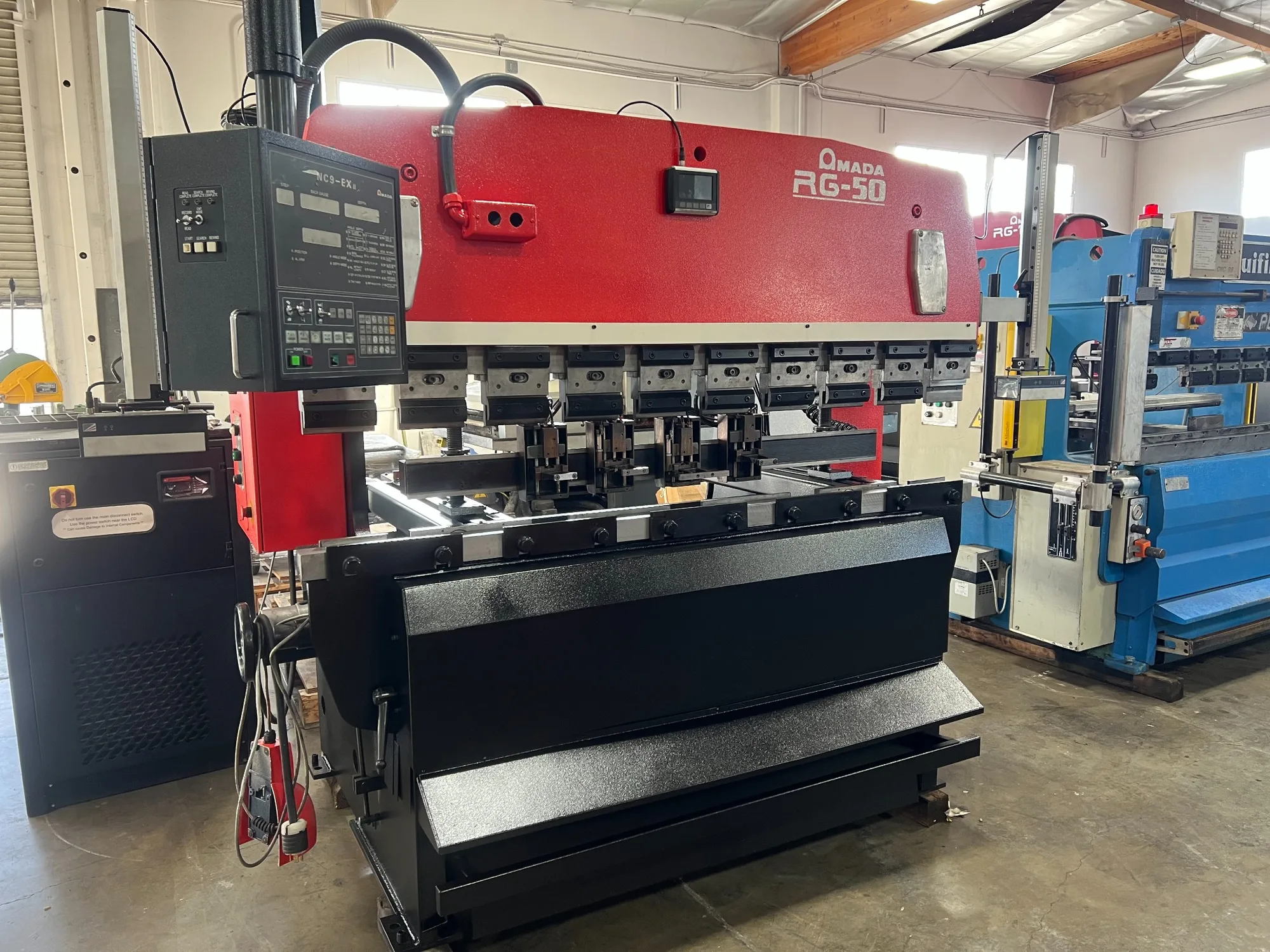

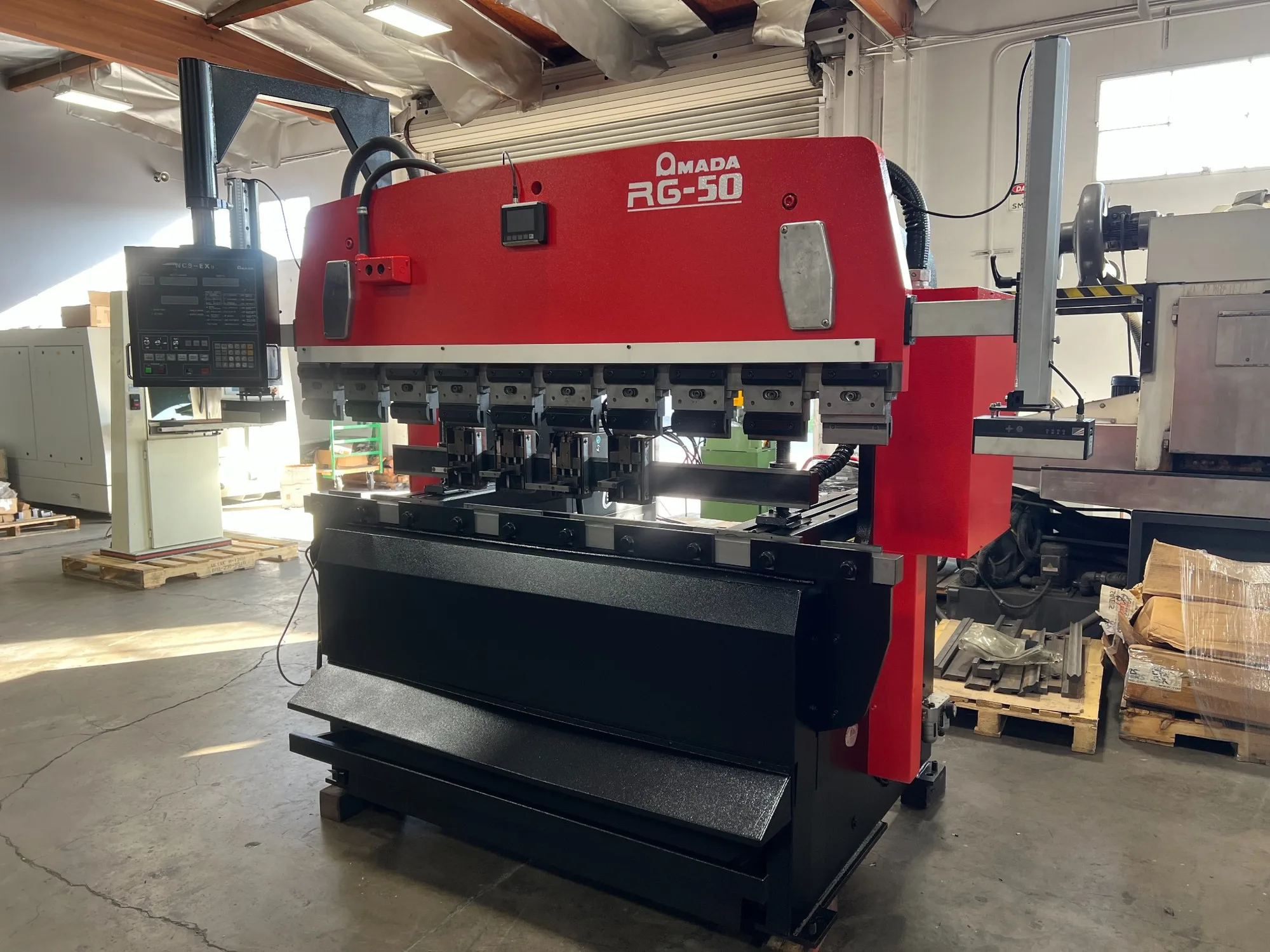

Used Amada RG-50 (1995) Press Brake for Sale. This hydraulic press brake is rated at 55 ton capacity, with an overall bed length of 6.8′, 59.84″ between housings and a 15.75 throat. Stroke is 3.9″, with an open height of 14.57″ and a closed height of 10.67″. Driven by a 5 HP main motor. Equipped with a full set of punch holders, 4 finger stops, LaserSafe light curtains, foot treadle and electronic foot pedal. Machine dimensions are 80″ x 55″ x 86″H and it weighs 6,600 lbs. The RG-50 can be seen under power for an inspection by appointment. See our other used press brakes and additional used Amada machines, then Activate Pricing or use the Inquire Now button to reach us.
Specifications
| Capacity |
55 Ton |
|---|---|
| Overall Length of Bed |
6.8' |
| Distance Between Housings |
59.84" |
| Stroke |
3.9" |
| Open Height |
14.57" |
| Closed Height |
10.67" |
| Throat |
15.75 |
| Main Motor |
5 HP |
| Dimensions |
80" x 55" x 86"H |
| Machine Weight |
6600 lbs |
Features
|
4 Finger Stops |
LaserSafe Light Curtains |
|
Electronic Foot Pedal |
Foot Treadle |
|
Full Set of Punch Holders |
