Year |
1994 |
|---|---|
Make |
Cincinnati |
Model |
230AF10 |
Description |

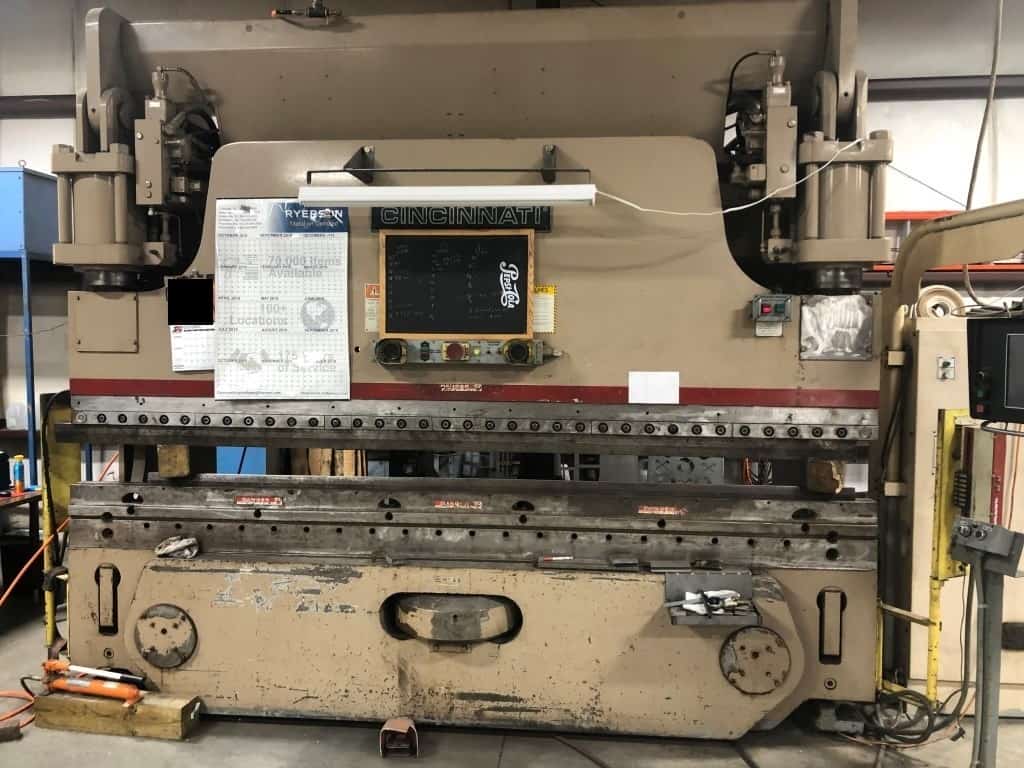

250 Ton x 12' Hydraulic Press Brake |
Reference # |
8068313 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Capacity |
230 Ton |
|---|---|
| Overall Length of Bed |
12' |

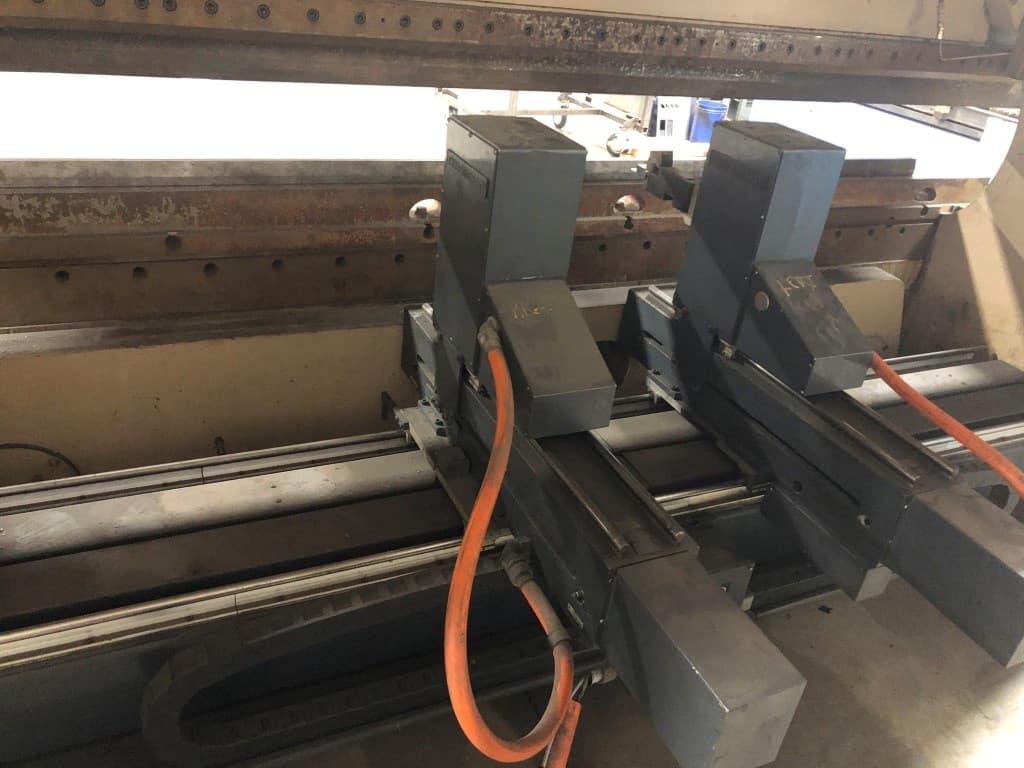

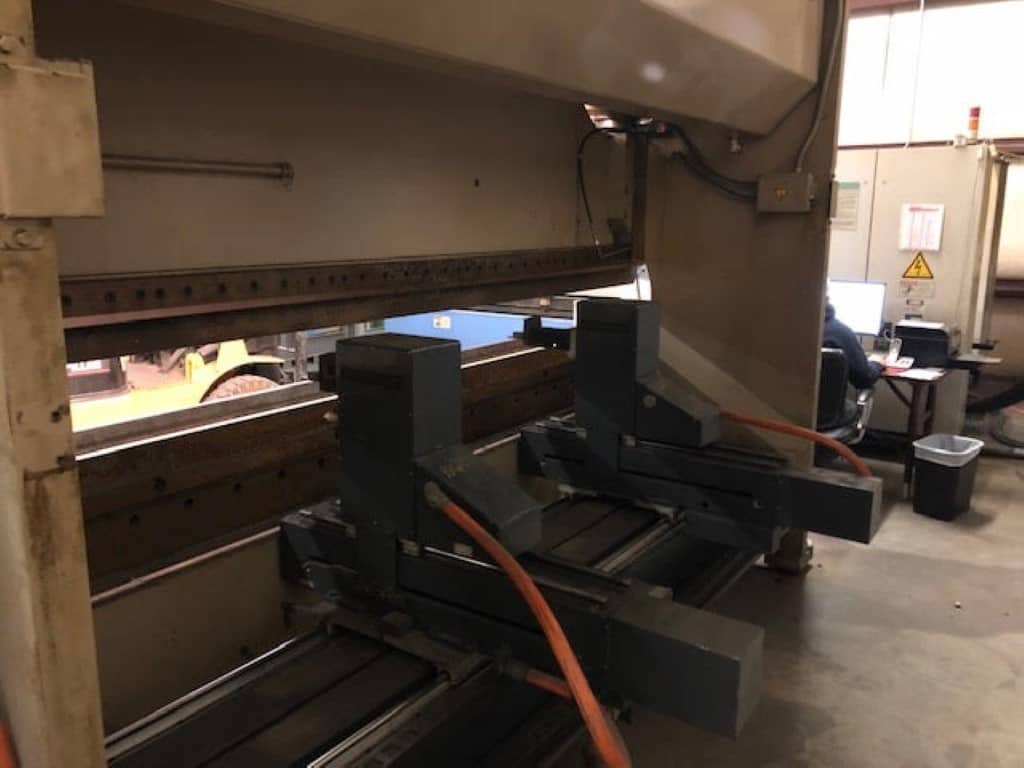

| Back Gauge |
6 Axis |
| Distance Between Housings |
126.5" |
| Stroke |
10" |
| Throat Depth |
12" |
| Open Height |
17" |
| Closed Height |
7" |
| Approach |
230 Inch/minute |
| Forming |
1 To 45 Inch/minute |
| Return |
1 To 250 Inch/minute |
| Width at Top of Bed |
5 1/2" |
| Main Motor Horsepower |
25 HP 460/3/60 |
| Approx Overall Weight |
39000 Lbs |
| Approx Overall Dimensions |
177"L x 72"W x 126"H |

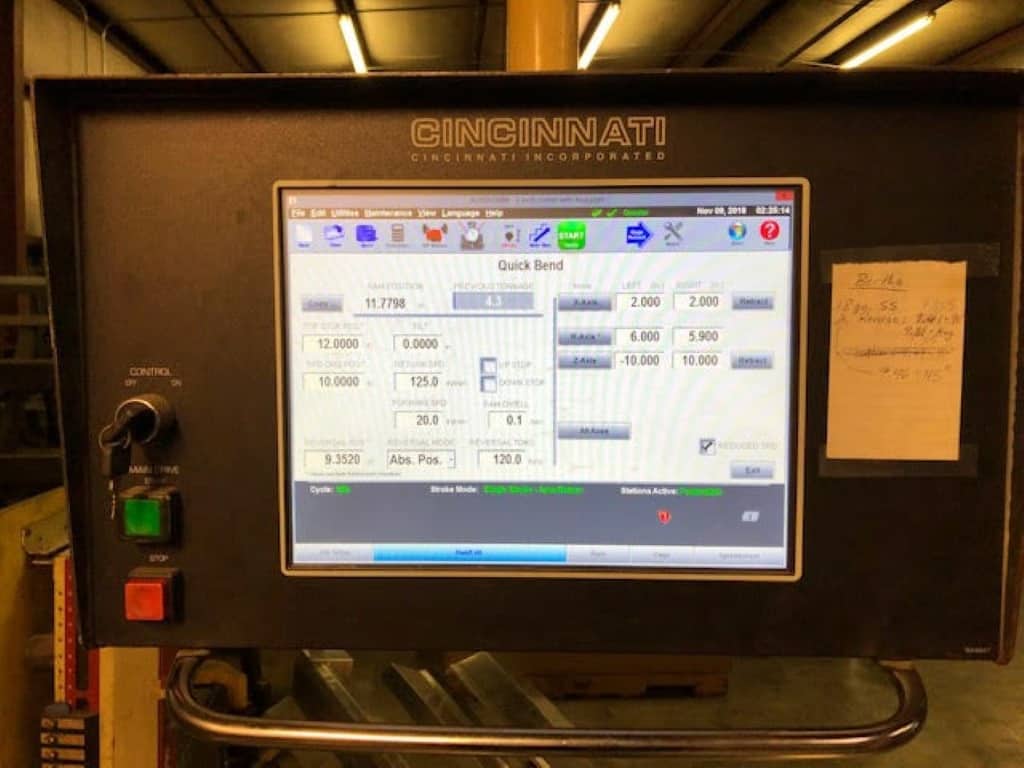

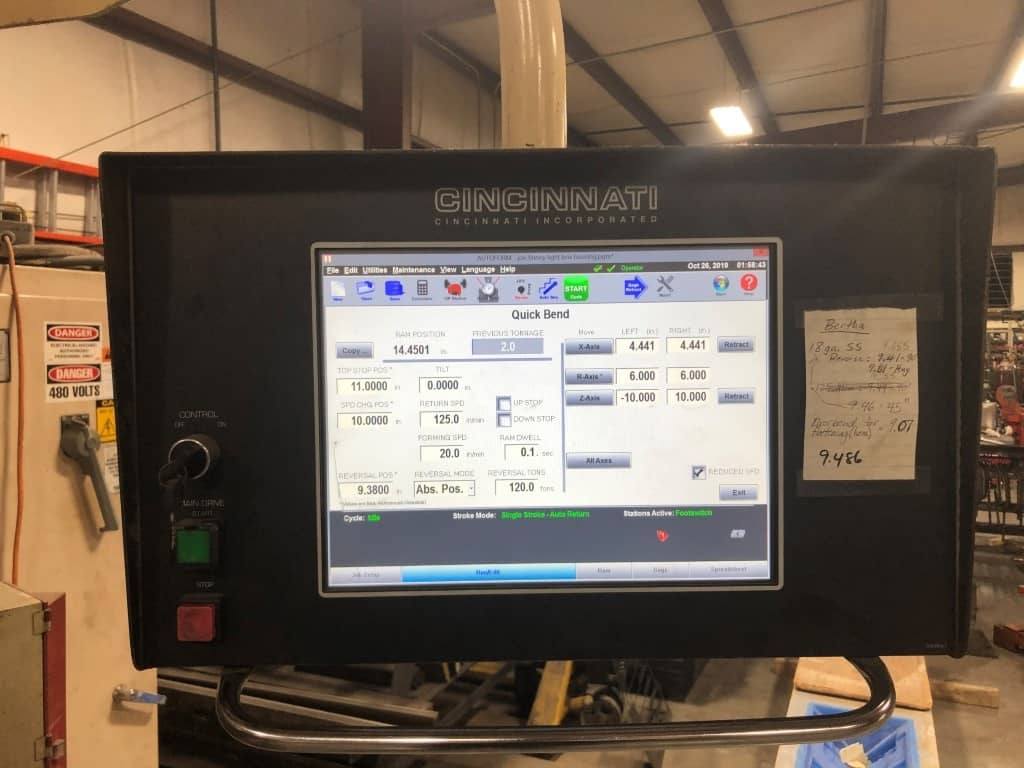

| Control |
Cincinnati Control Retrofit 2015 |
Features
|
6-Axis Gauge (X1 X2 Z1 Z2 R1 R2) |
Have a Cincinnati 230AF10 to sell?
This Cincinnati 230AF10 has sold. KD Machinery buys the Cincinnati 230AF10 and other used press brakes outright. Tell us what you have and how to reach you; the make and model are enough to start.
