Year |
1992 |
|---|---|
Make |
FSP |
Model |
M-100PC |
Description |
Rotational Molder |
Reference # |
8078800 |
Price |
Activate Pricing |

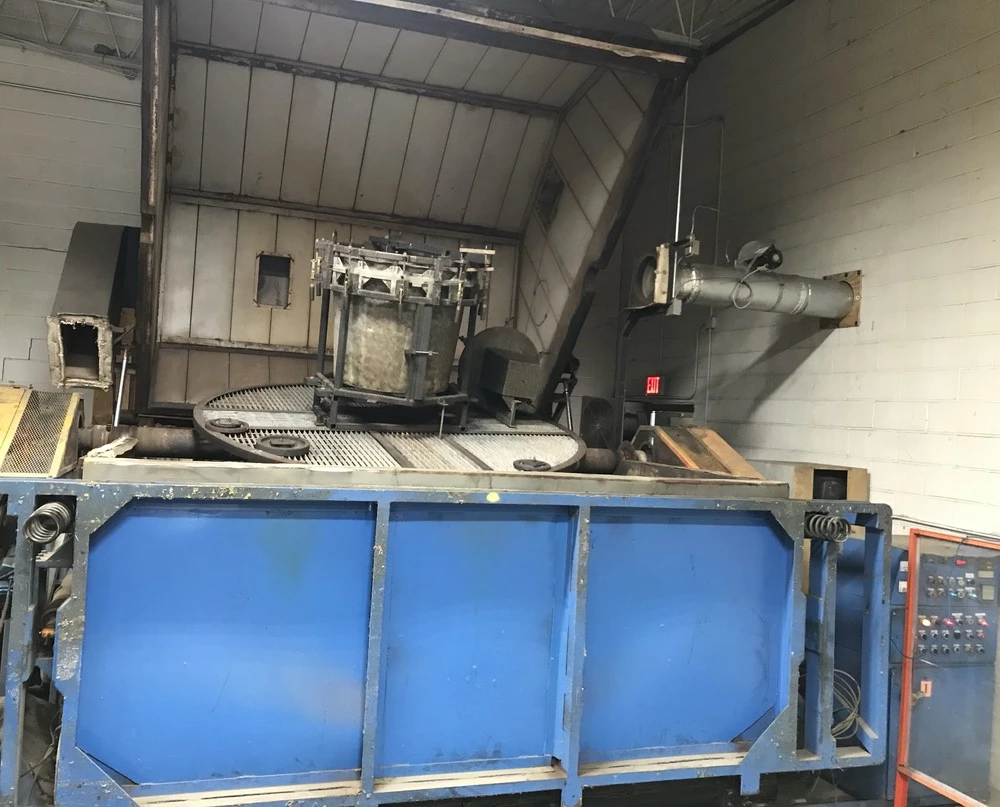

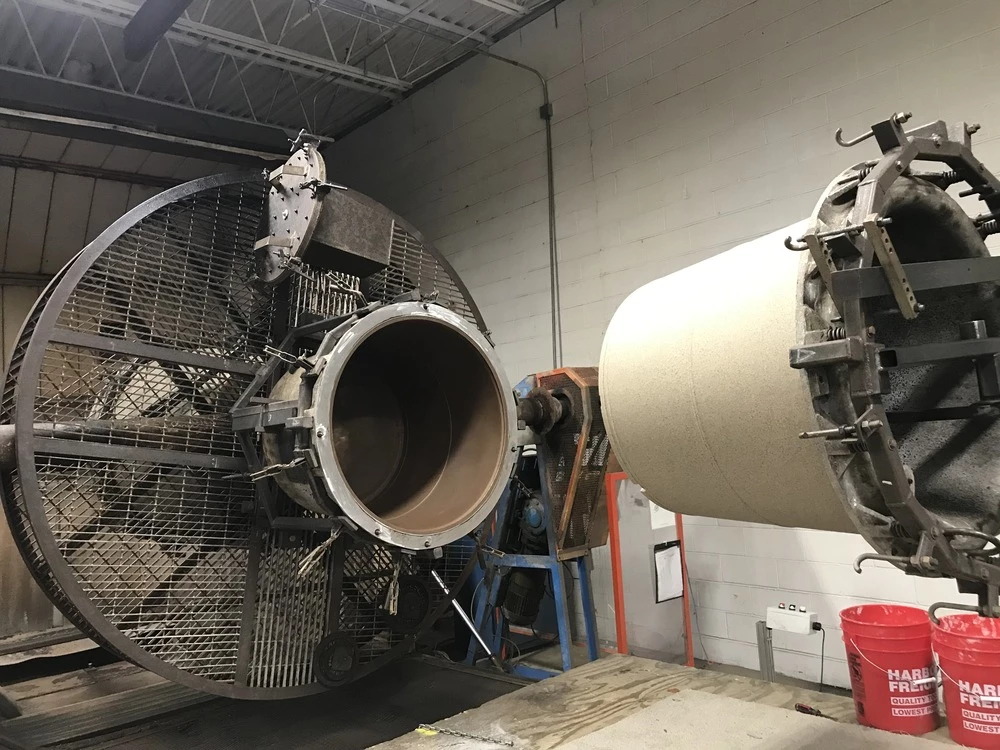

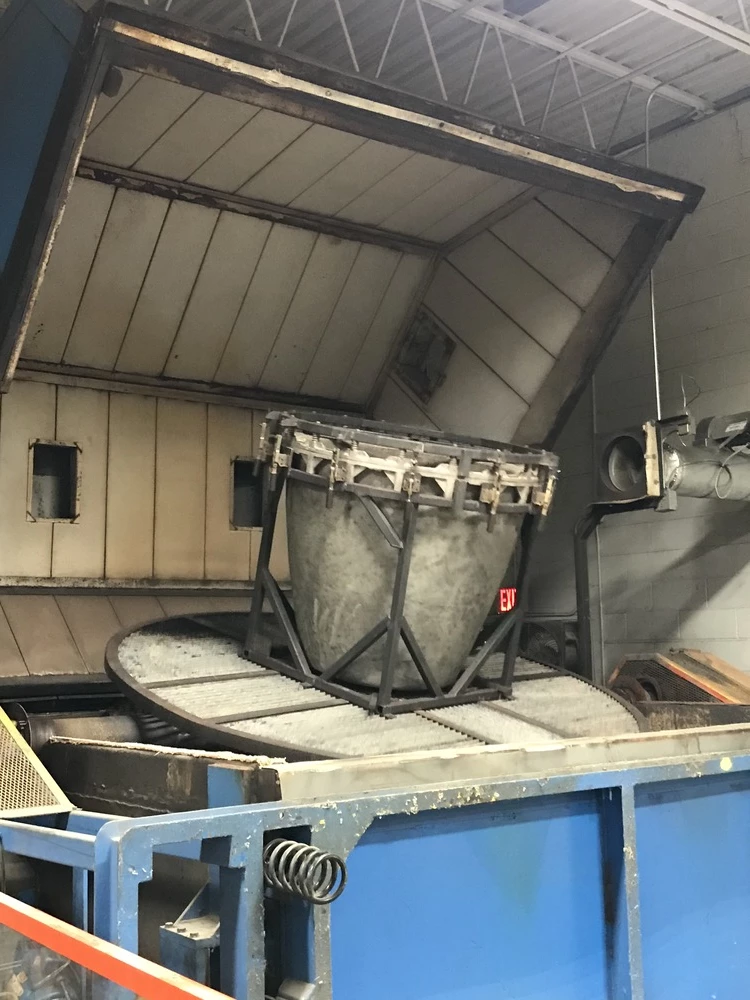

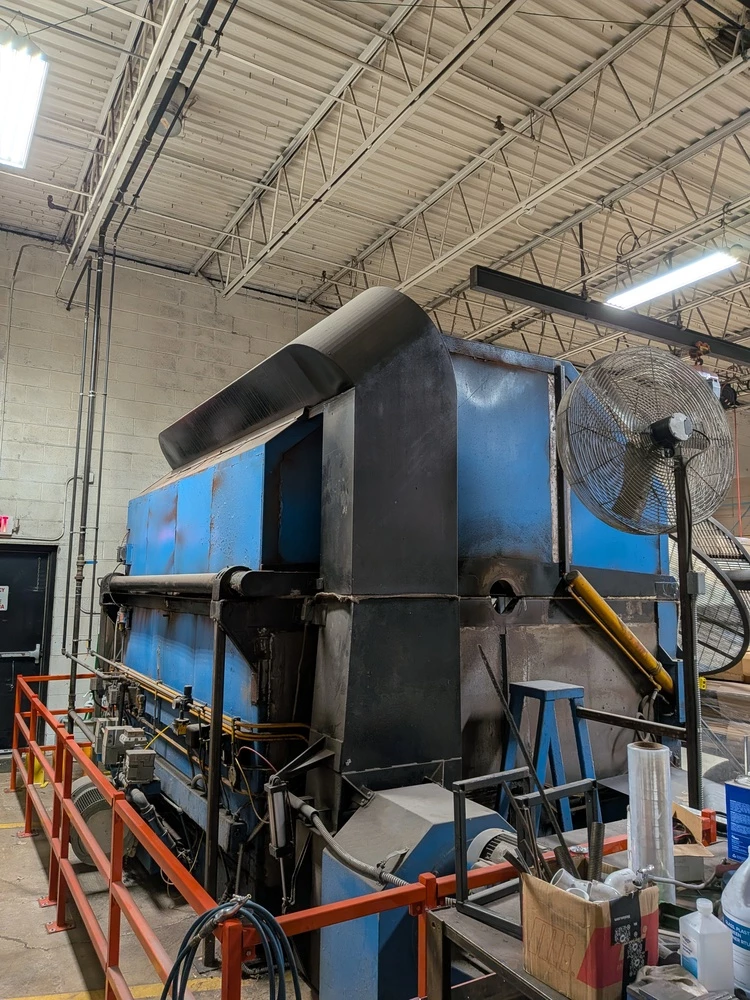

Used FSP M-100PC (1992) Clamshell Rotational Molding Machine for Sale. This clamshell style roto molder is built with (1) one straight arm rated for a maximum swing diameter of 118″ and a maximum load capacity of 3000 lbs. Machine functions are handled by an IDEC controller. Space required is 20.06′ x 13.6′ x 10.8′. Documented service includes a secondary axis drive shaft repair in December 2015 ($675), a new hub plate fabricated in July 2016 ($940), hub assembly repair in July 2016 ($6207), a new drive shaft in April 2022 ($8780), and a center section rebuild with drawings in June 2022 ($10043). The machine can be seen under power for an inspection. Activate Pricing for figures, or Request a Quote and we will follow up with details.
Specifications
| Style of Roto Molder |
Clamshell |
|---|---|
| Number of Arms |
(1) One |
| Arm Type |
Straight Arm |
| Straight Arm Max Swing Diameter |
118" |
| Straight Arm Max Load Capacity |
3000 Lbs |
| Control |
IDEC Controller |
| Space Required |
20.06' x 13.6' x 10.8' |
Features
|
12/01/2015: 2nd ary Axis Drive Shaft Repaired - $675 |
4/21/2022: $8780 New Drive Shaft |
|
6/30/2022: Rebuilt the Center Section with Drawings - $10043 |
7/08/2016: Fabricated a New Hub Plate - $940 |
|
7/13/2016: Repair the Hub Assembly - $6207 |
