Year |
2025 |
|---|---|
Make |
Akyapak |
Model |
3 ADM 1200/AST 1300 |
Description |
CNC Beam Drill |
Reference # |
8078284 |
Price |
Activate Pricing |

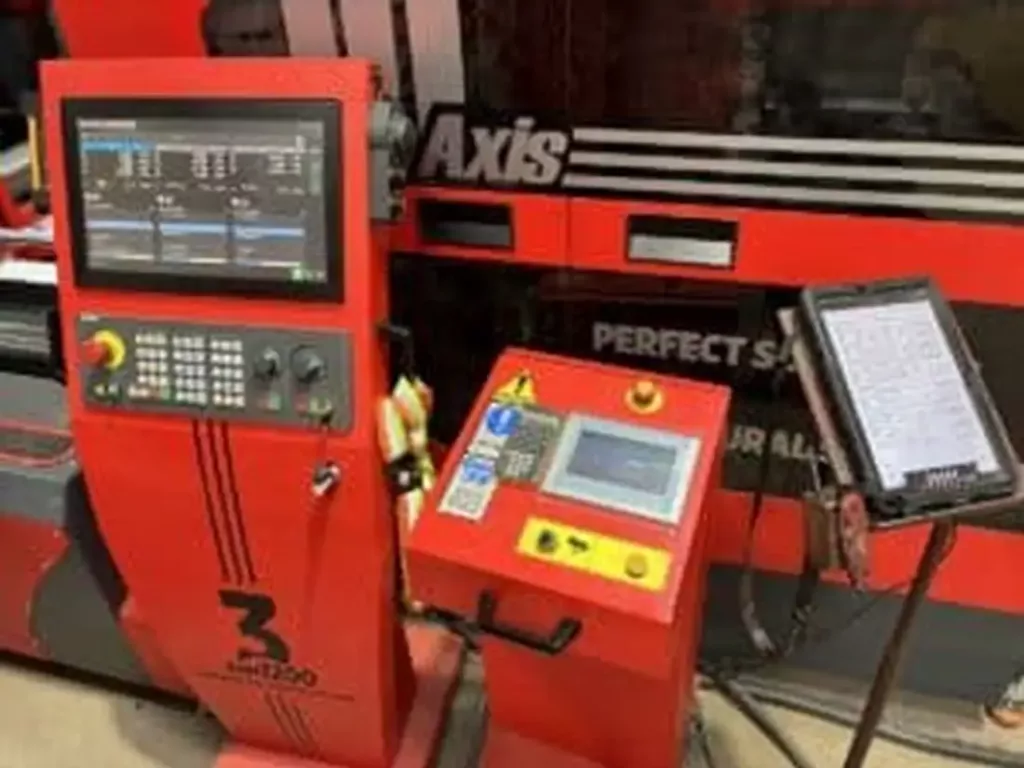

Used Akyapak 3 ADM 1200/AST 1300 (2025) CNC Beam Drill for Sale. This pre-owned Akyapak CNC beam drill machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Akyapak CNC Beam Drill, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Min/Max Beam Size |
8" x 3.15" / 48" x 20" |
|---|---|
| Number of Drill Heads |
3 (4 Station) |
| Automatic Tool Changer |
3" |
| Drill Diameter |
3/8" - 1-1/2" |
| Drilling Thickness |
0.2" - 3.94" |
| Spindle Power |
50 HP |
| Spindle Speed |
3,000 RPM (Stepless) |
| Vertical Spindle Strokes (X, Y, Z) |
57", 20", 36" |
| Horizontal Spindle Strokes (X, Y, Z) |
20", 21", 28" |

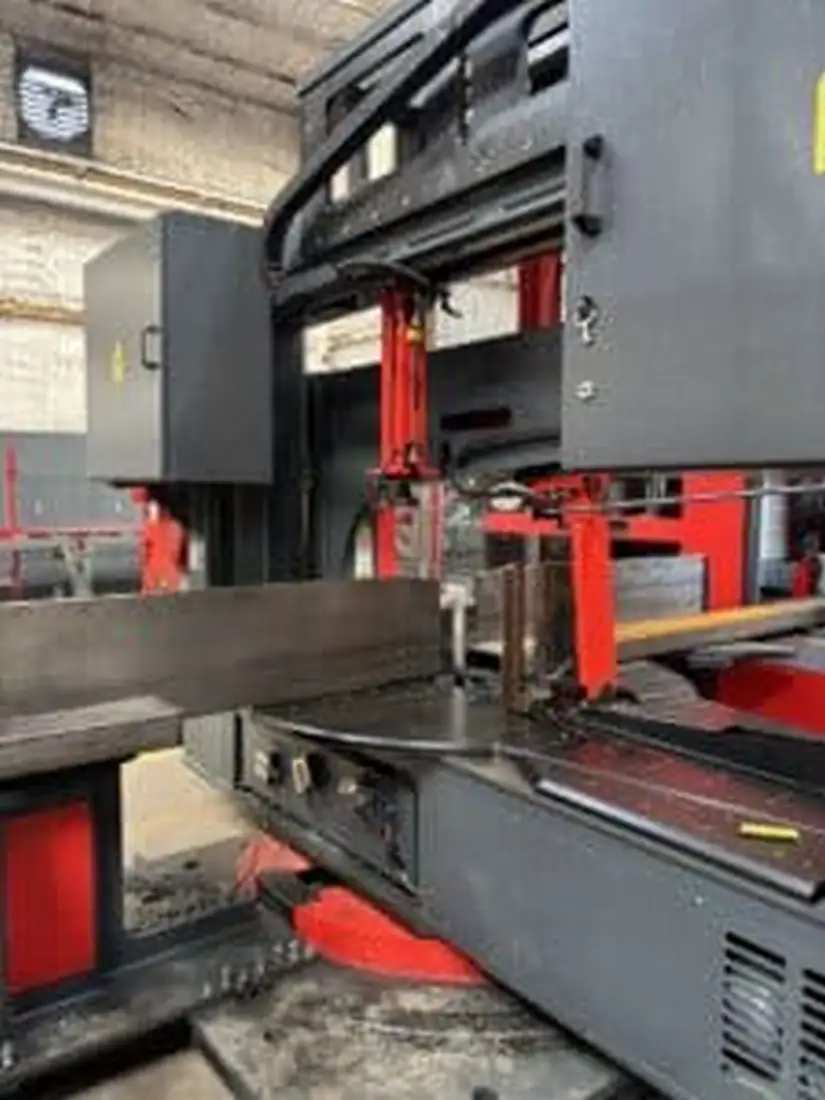

| Miter Bandsaw Cutting Capacity |
3.15" - 51.5" |
| Cutting Angle |
60°/60° |
| Blade Thickness |
67 x 1.6mm (2.64" x 16ga) |
| Blade Speed |
65.6 - 377.3 ft/min |
| Total Saw Power |
24 HP |
| Chip Removal |
Chip Conveyor |
| Capabilities |
Drilling, Milling, Tapping, Countersinking, Layout Marking |
| Material |
Beam, Channel, Tube, Angle, Plate |
Features
|
3 ADM Drilling Units with 3 Automatic Tool Changer |
4th Side Layout Marking |
|

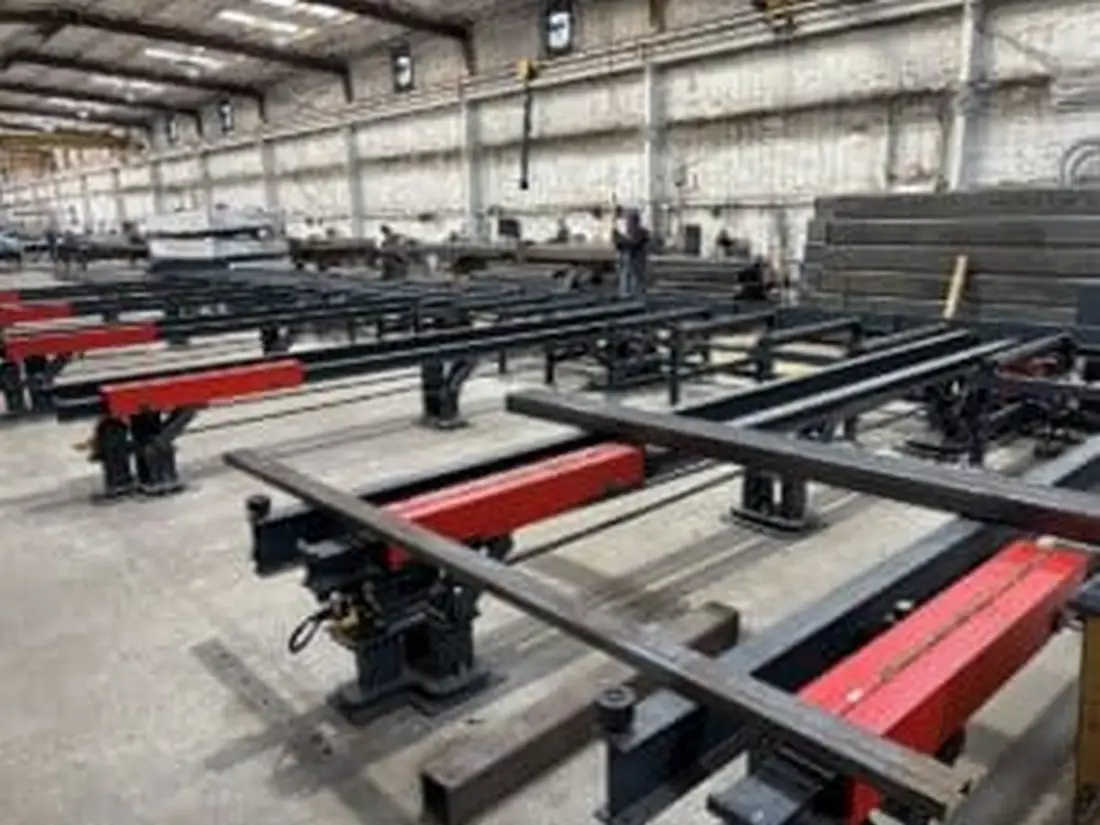

60' Infeed with Transfers |
60' Outfeed with Transfers |
|
AKYAPAK AST Controller Software |
Automatic Blade Tensioning System |
|
Automatic Tool and Material Measurement |
Bandsaw Integration |
|
BT40 Tool Holder |
Chip Brush for Blade |
|
Clamping Vice |
Feeding Arm |
|
High Speed Scribing Tools |
Lantek Flex 3D Steel Work SD Plus Software |
|
M10 - M24 Thread Tapping |
Magnetic Material Discharge System |
|
Material Clamping |
Part Marking |
|
Upper Pressure Cylinders for Batch Cutting |
