Year |
2023 |
|---|---|
Make |
ATL Autorail |
Model |
Mandrel Bender |
Description |
Tube Bender |
Reference # |
8077633 |
Price |
Activate Pricing |

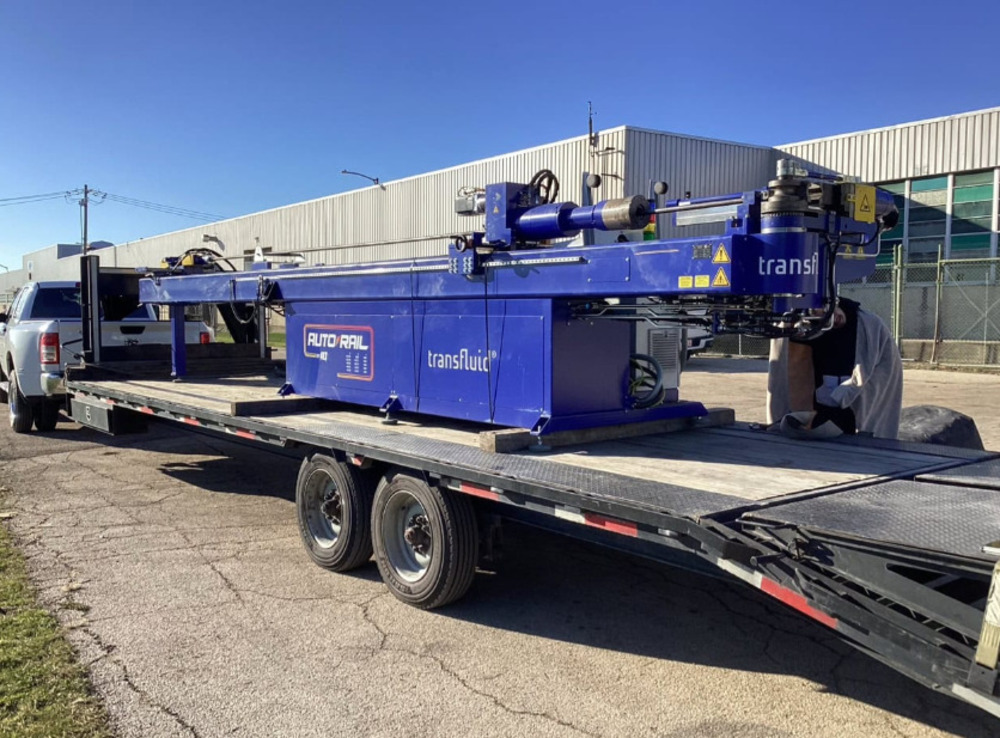

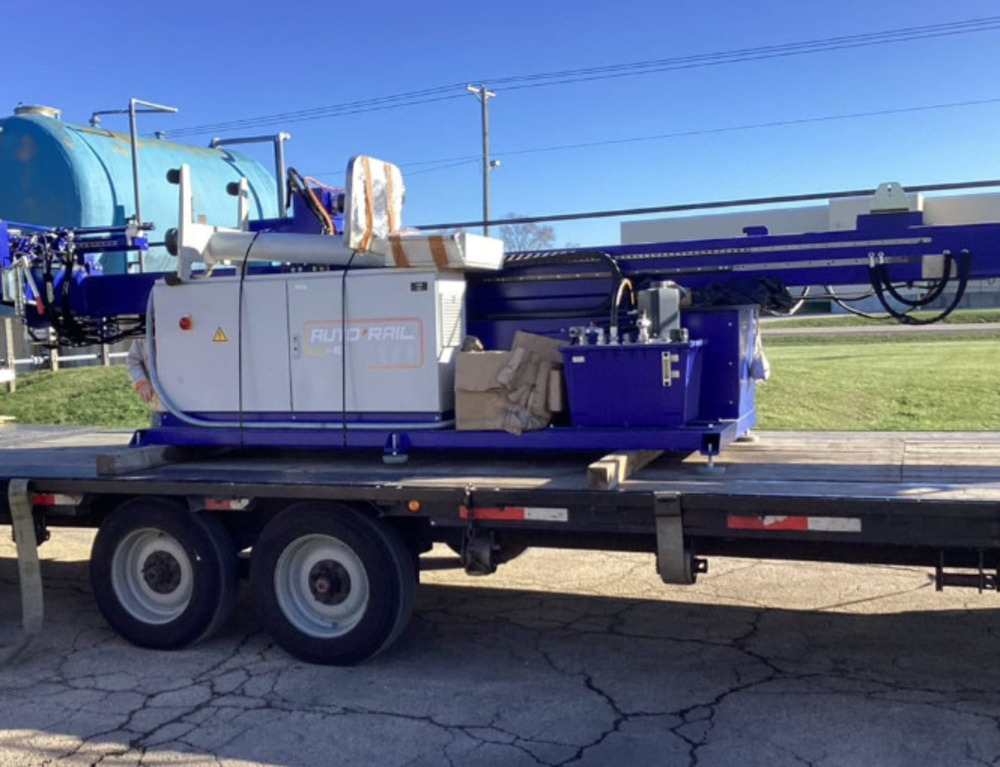

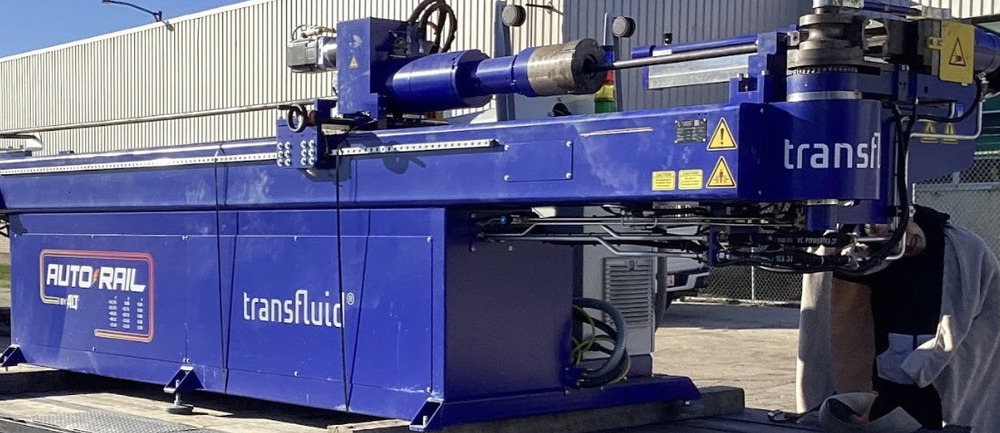

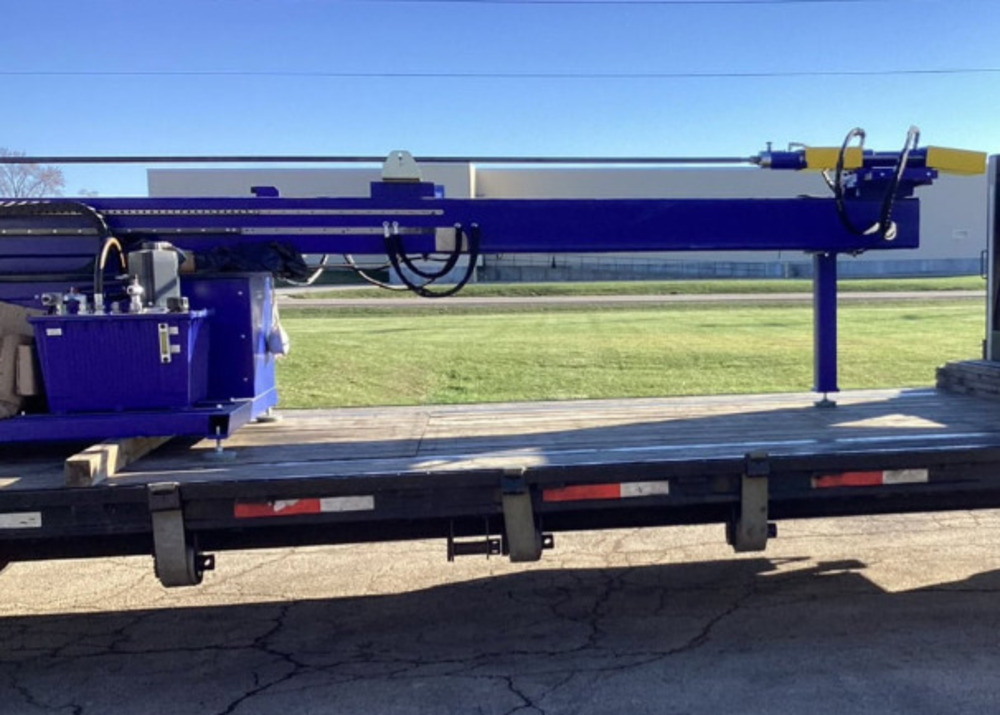

ATL Autorail Mandrel Bender
Specifications
| Capacity |
7" |
|---|---|
| Round Tubing Mild Steel |
2.375″” x .188 Wall for Full 20′ Length / 3” x .120” Wall Max at 10′ Length |
| Round Tubing Stainless Steel |
2.375″” x .120 Wall for Full 20′ Length / 3” x .065” Wall Max at 10′ Length / 2″ Pipe x Sch. 40 Mild Steel / 1-1/2” Pipe x Sch. 80 Stainless Steel |
| Max. Moment of Resistance |
11.1 cm3 |
| Bending Angle |
Up to 180 + 10 Spring Back |
| Bending Speed |
21 Degress/Sec |
| Speed at Front Feed |
12”/Sec |
| Speed of Rotation |
45 Degrees/Sec |
| Accuracy of Bend Axis |
+/- 0.2 Degrees |
| Accuracy of Length |
+/- 0.12” |
| Accuracy of Rotation |
+/- 0.2 Degrees |
| Arbor Length |
10′ |
| Radii Max |
7" |
| Bending Height |
49.2” |
| Power bending Axis |
Electro-Hydraulic |
| Wall Rail Example with 3 Bends and a Length of 6’-11” |
45 Seconds |
| Grab Rail Example with 5 Bends and a Length of 10’-6” |
65 Seconds |
| Guard Rail Example with 3 Bends and a Length of 15’-6" |
50 |
| Guard Rail Example w/ Off Set Handrail |
7 Bends at a Length of 10’-11’’, 120 Seconds |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
