Year |
2022 |
|---|---|
Make |
Advantate |
Model |
TIP-150AT-MZC-3P |
Description |

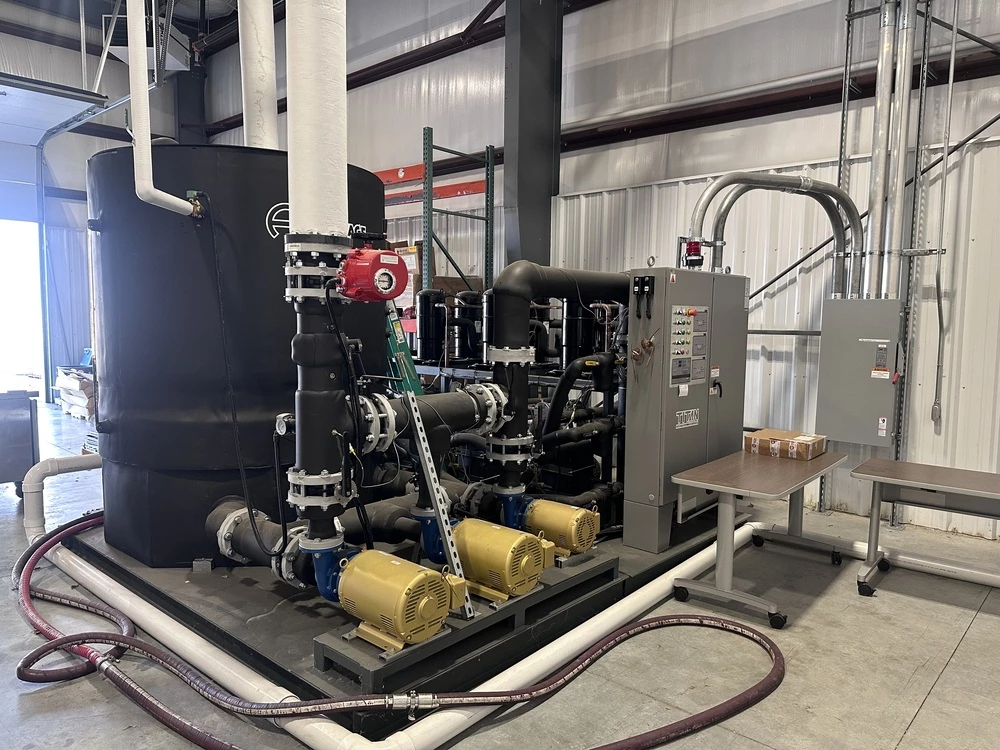

Air Cooled Titan Central Chiller with Remote Condensers |
Reference # |
8077805 |
Price |
Activate Pricing |
Advantage TIP-150AT-MZC-3P
Specifications
| Chiller Tonnage |
137 Ton Capacity |
|---|---|
| DETAILS INCLUDE: |
360 GPM 30% PG, 50 deg F leaving fluid & 95 deg F ambient air temperatures |

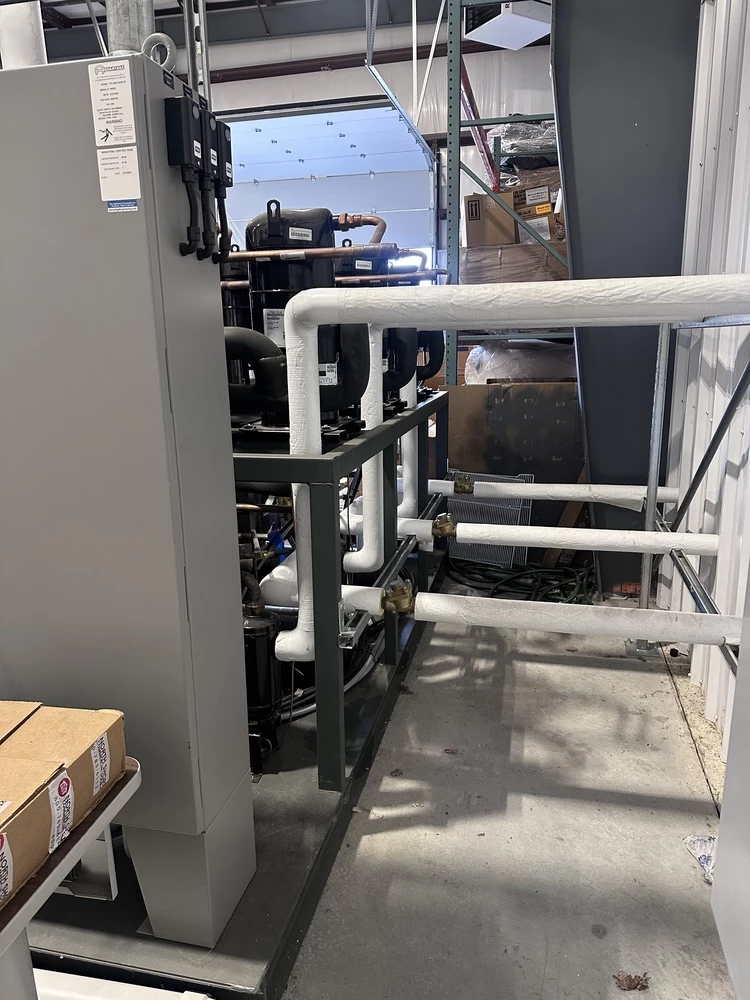

| (3) Independent air condensed R410A refrigeration circuits each with |
Tandem scroll compressors |
| | |
Discharge check valve |
| Staged compressors |
& hot gas bypass capacity control |
| High & low refrigerant pressure limit |
switches & gauges |
| Oil separator, liquid receiver, |
filter dryer, sight glass with moisture indicator, liquid line solenoid valve & thermal expansion valve |
| Brazed plate evaporator |
with stainless steel plates & copper brazing material |
| Inlet basket strainer |
with isolation valves |

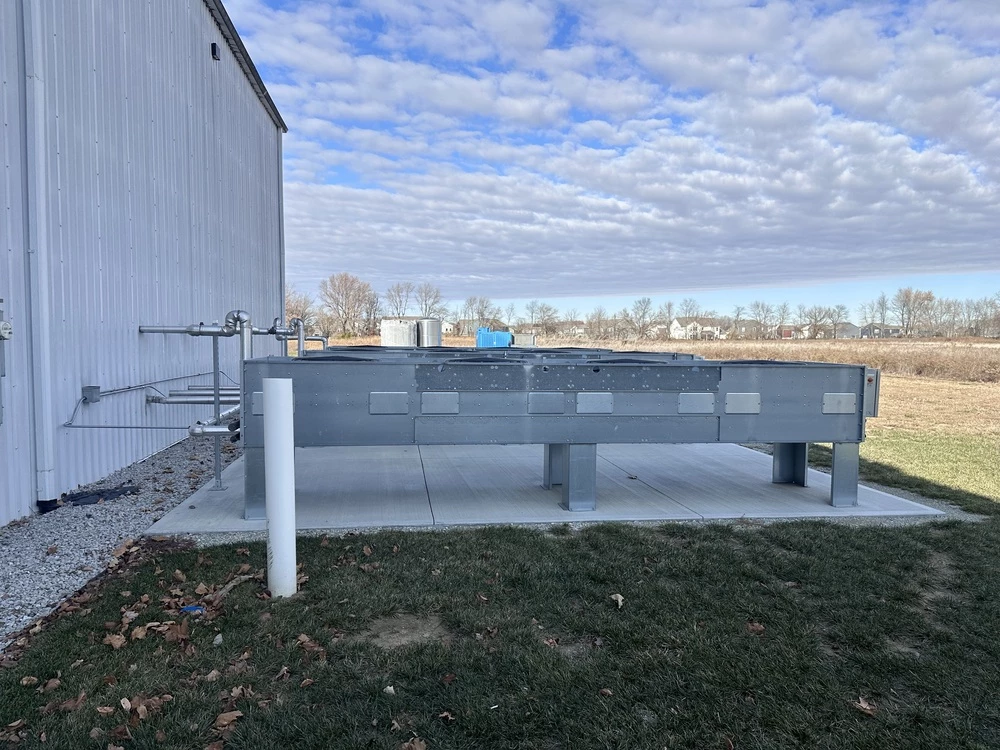

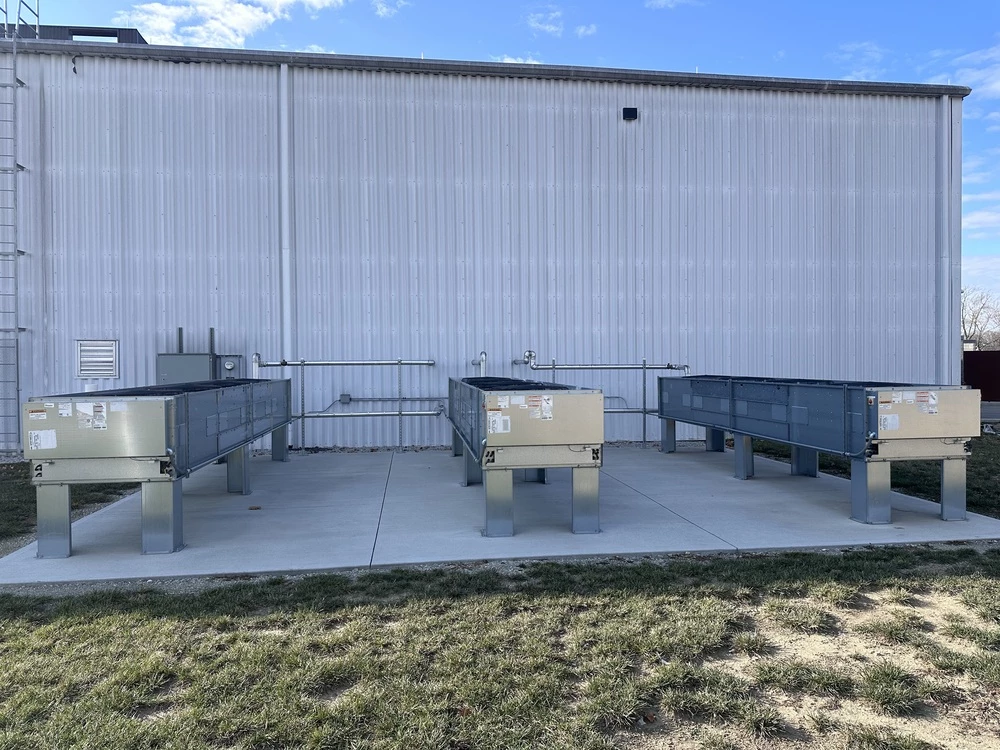

| Outdoor air cooled condensers |
(KCL-079, three included – shipped loose) |
| Refrigerant hot gas inlet connection |
25⁄8" |
| Refrigerant liquid line outlet connection |
21⁄8" |
| Approximate dimensions: |
156"W x 156"L x 116"H |
Features
|

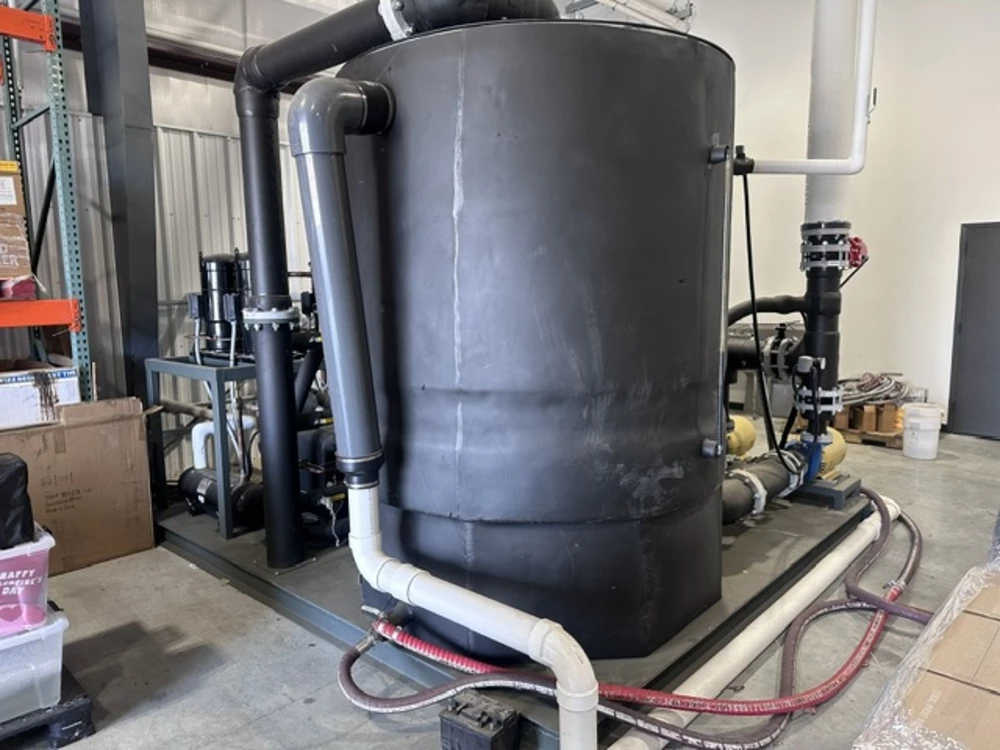

Integral 1500 Gallon Insulated Rotational Molded LLD Polyethylene Tank |
MANY MORE DETAILS!!!! |
|
PP-20 |
Cast iron centrifugal process pump |
|
360 GPM 30% PG @ 60 PSI |
SP-20 |
|
20 HP dual standby pump & 3-pump manifold |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
