Year |
2021 |
|---|---|
Make |
Hydmech |
Model |
V-18APC-60 |
Description |
Automatic Vertical Band Saw |
Reference # |
8072504 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

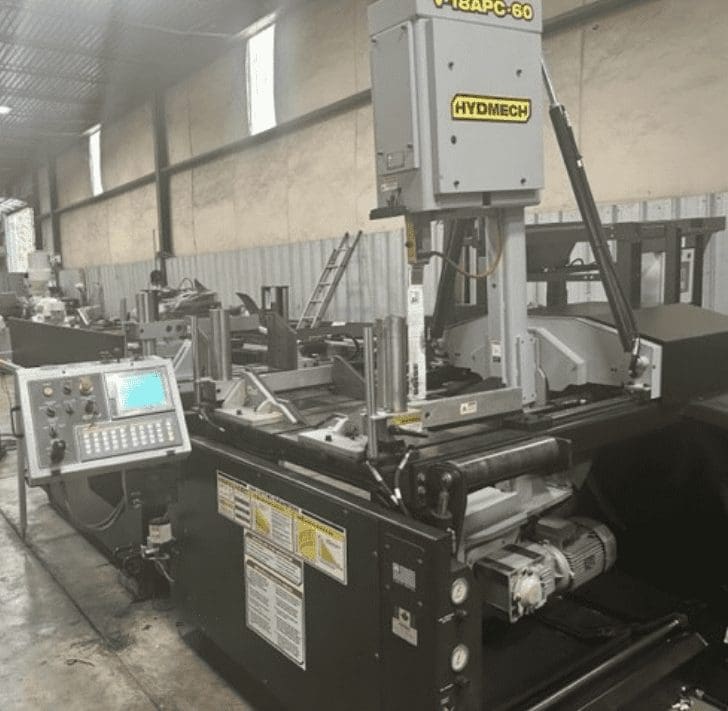

HydMech V-18APC-60
Specifications
| Capacity @ 90 Degrees |
18" x 22" (Rectangular) / 18" (Round) |
|---|---|
| Capacity @ 45 Degrees |
18" x 14.75" (Rectangular) / 13" (Round) |
| Capacity @ 60 Degrees |
18" x 9" (Rectangular) / 9" (Round) |
| 90 Degrees With Bundling |
18" x 22" (Rectangular) / 12" (Round) |
| 45 Degrees With Bundling |
18" x 22" (Rectangular) / 12" (Round) |
| 60 Degrees With Bundling |
18" x 6" (Rectangular) / 6" (Round) |
| Blade Size |
1-1/4" x 16'11" |
| Blade Speed |
65-385 SFM |
| Blade Drive |
7.5 HP VFD |
| Motor Voltage |
480V |
| Mitering Capability |
60 Degrees Left and Right |
| Table Height |
44" |
| Machine Dimensions |
120" x 188" x 112" |
| Machine Weight |
9,000 Lbs |
Features
|
Powered Movable Guide Arm |
Replaceable Blade Brush |
|
Replaceable Carbide Guide Inserts |
Robust Steel Base |
|
Safety Door Interlocks |
3 Degree Head Cant |
|

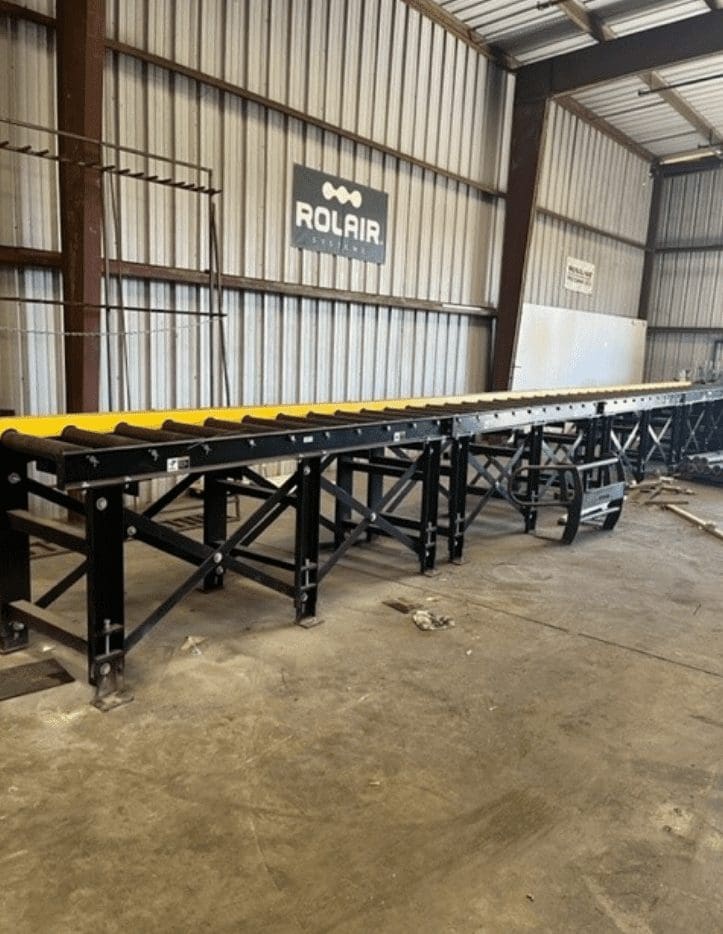

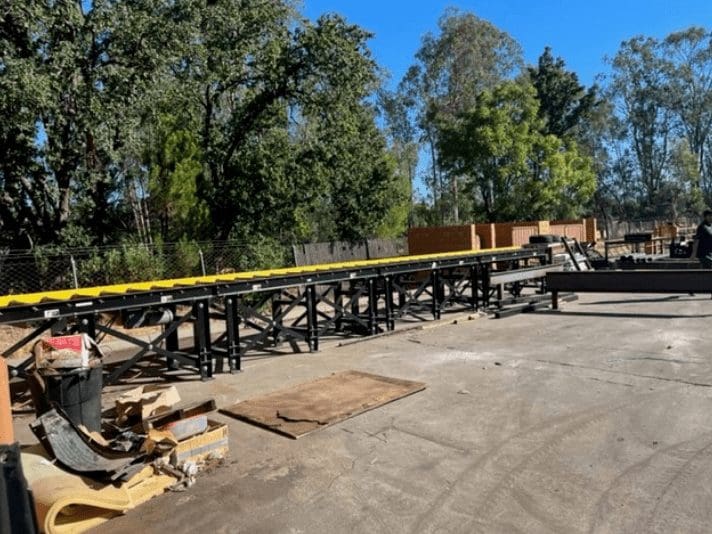

40' Powered Infeed/Outfeed Conveyors |

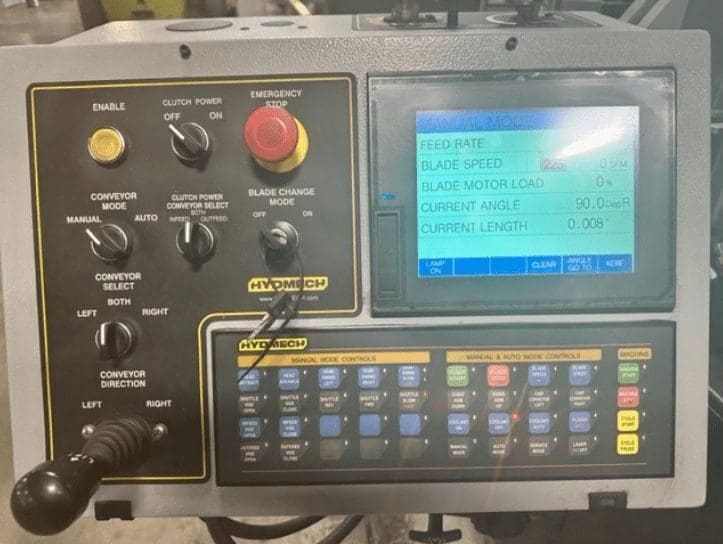

8.5” Mitsubishi FX5U PLC Color Touch Screen Controller |
|
True Direct Blade Drive – No Belts/Pulleys |
Variable Vise Pressure |
|
Automatic Multi-Indexing |
Automatic Programmable Mitering with Go-To Angle Functionality |
|
Blade Breakage Switch |
Blade Chamber Separates Material from Cut Part |
|
Cast Iron Band Wheels |
Chip Bucket |
|
Drag Chain Chip Conveyor |
Easy Access Electrical Panel and Hydraulics |
|
Flood Coolant with Wash Down Hose |

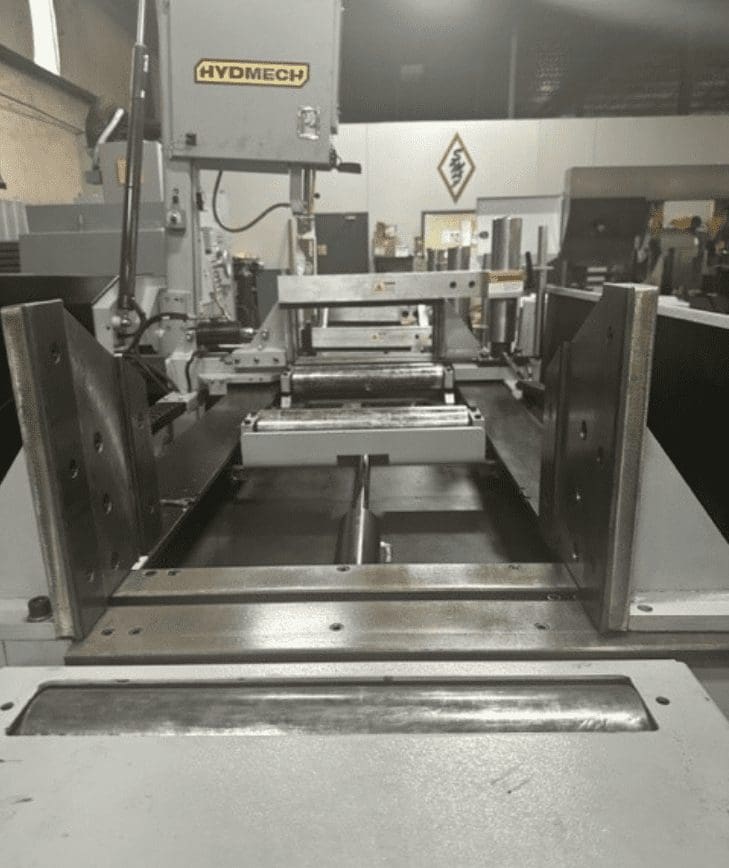

Four Full-Stroking Hydraulic Vises |
|
Hydraulic Band Tensioning with Digital Readout |
Hydraulic DDF System |
|
Hydraulic Overhead Bundling |
Hydraulic Pump Provides System Pressure |
|
Laser Light and Work Light |
Left Hand Feed Only |
|
Mist Lubrication |
Non-Driven Pop Up Lift Roller |
|
Out of Stock Switch |
