Year |
2019 |
|---|---|
Make |
Doosan |
Model |
NHP-5000 |
Description |
CNC Horizontal Machining Center |
Reference # |
8078076 |
Price |
Activate Pricing |

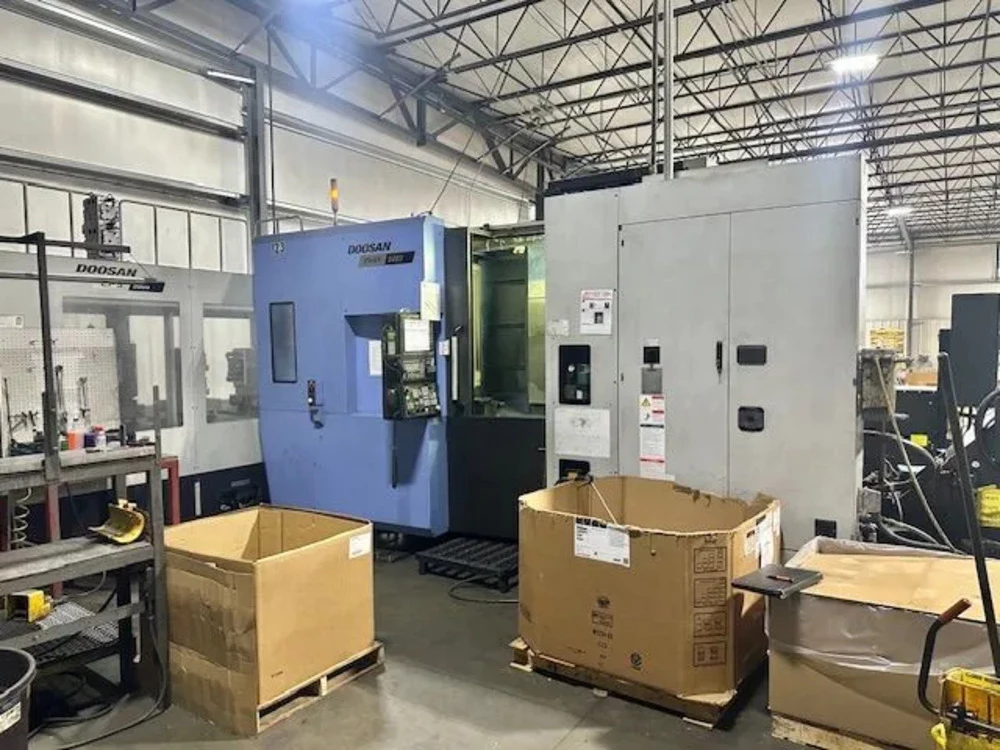

Used Doosan NHP-5000 (2019) CNC Horizontal Machining Center for Sale. This pre-owned Doosan CNC horizontal mill is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Doosan Horizontal Machining Center, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Pallet Size (Millimeters) |
500 |
|---|---|
| Pallet Size |
19.7" x 19.7" |
| X-Axis Travel |
28" |
| Y-Axis Travel |
28.7" |
| Z-Axis Travel |
34.6" |
| Tool Magazine Capacity |
275 ATC |
| Spindle Speed |
15,000 RPM |
| Spindle Taper |
CAT 40 |

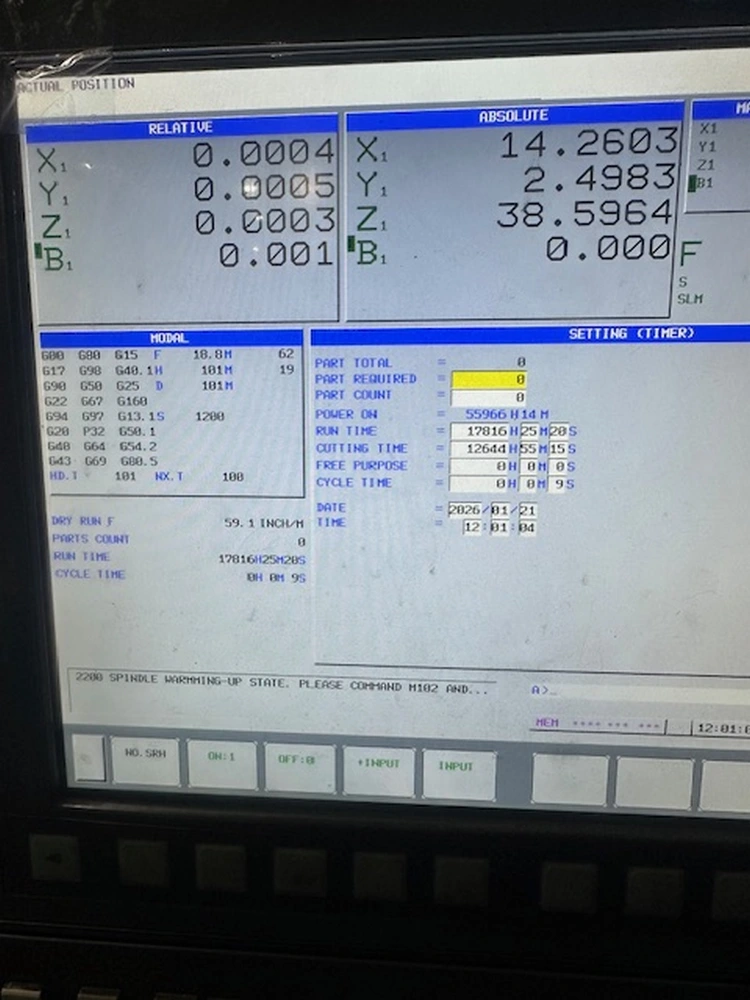

| Control |
Fanuc 31ib |
| Pallet Indexing |
Full 4th Axis |
| Chip Removal |
Chip Conveyor |
| Spindle Motor |
49.6 HP |
| Coolant |
Through Spindle Coolant |
| Power Requirement |
220V/3ph |
| Rapid Traverse Rate(X/Y/Z) |
2364 IPM |
| Cutting Feed Rate |
1181 in/sec |
| Pallet Weight Capacity |
1102 Lbs |
| Pallet Surface to Spindle Center |
3.1 - 29.1 |
| Pallet Center To Spindle Gage Line |
3.9 - 38.6 |
| Workpiece Dimensions |
31.5" x 39.4" |
Features
|

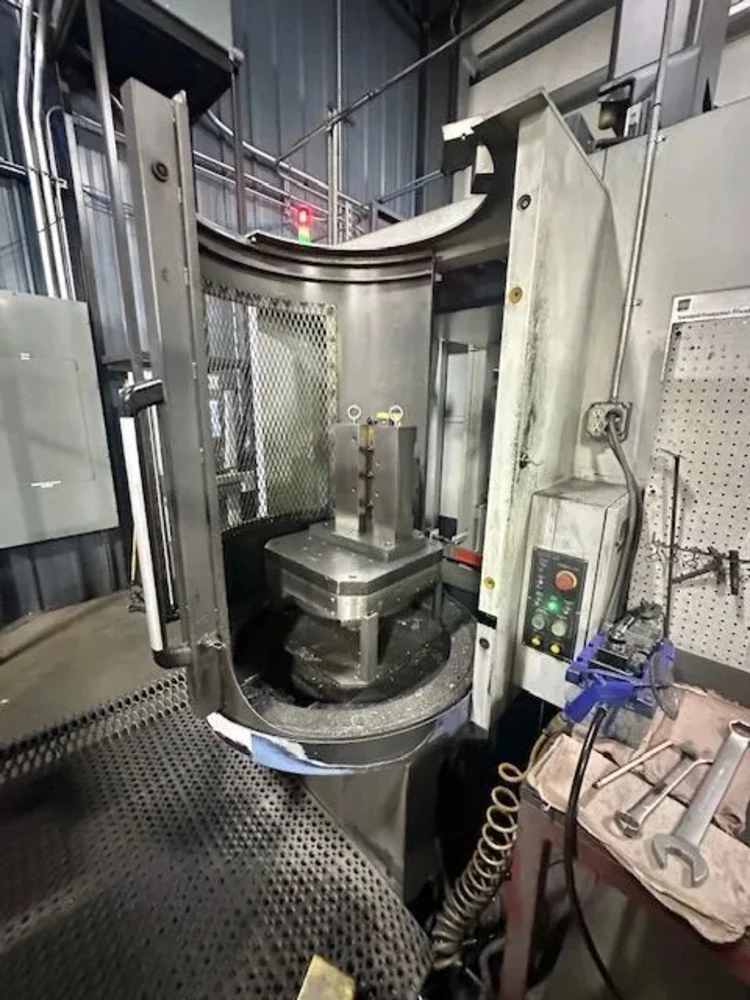

(1) Loading Station w/ LPS Controller |

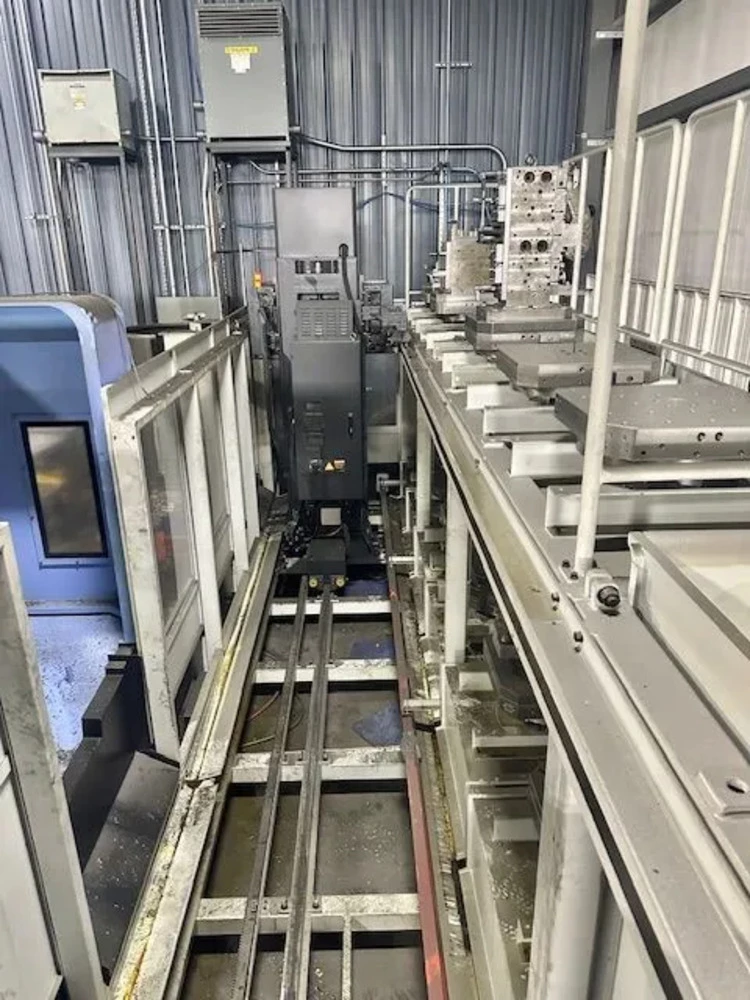

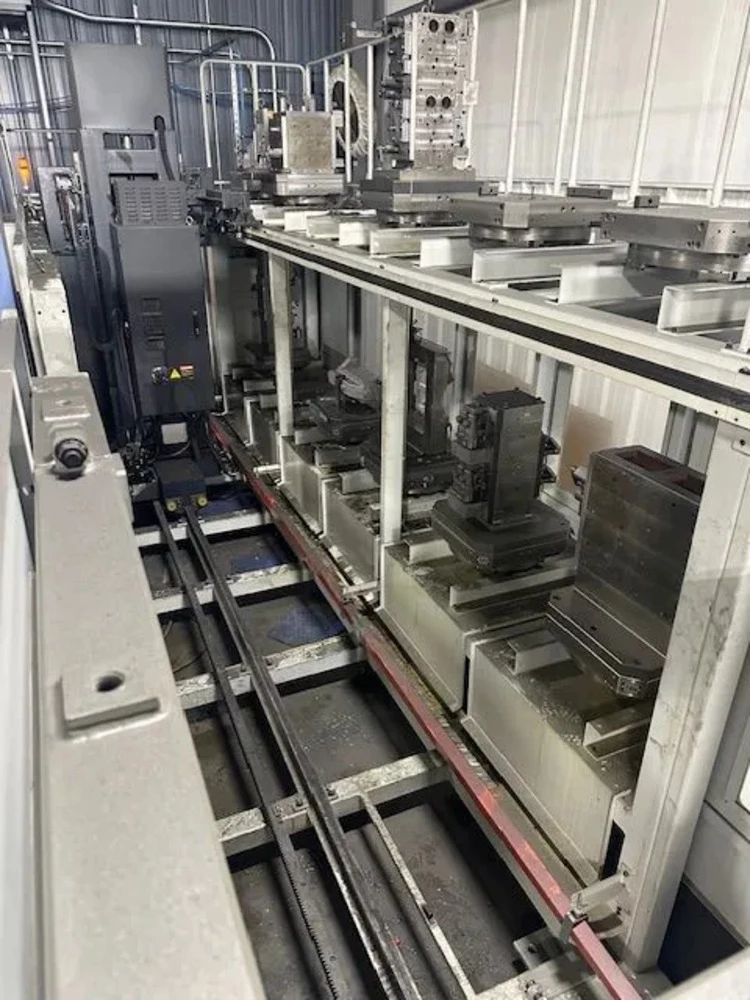

12 Linear Pallet System (6 Upper./6 Lower) |
|
48 Pairs Work Coordinates |
80MG Part Program Storage |
|
Advanced Tool & Pallet Retract Function |
Air Limit Pallet Clamping System |
|
Auto Tool Damage Detection BK 9 |
Auto Tool Measurement Touch Probe RMI - Q Only Renishaw |
|
Embedded Ethernet Function |
Fastems Interface |
|
Flood and Flushing Coolant |

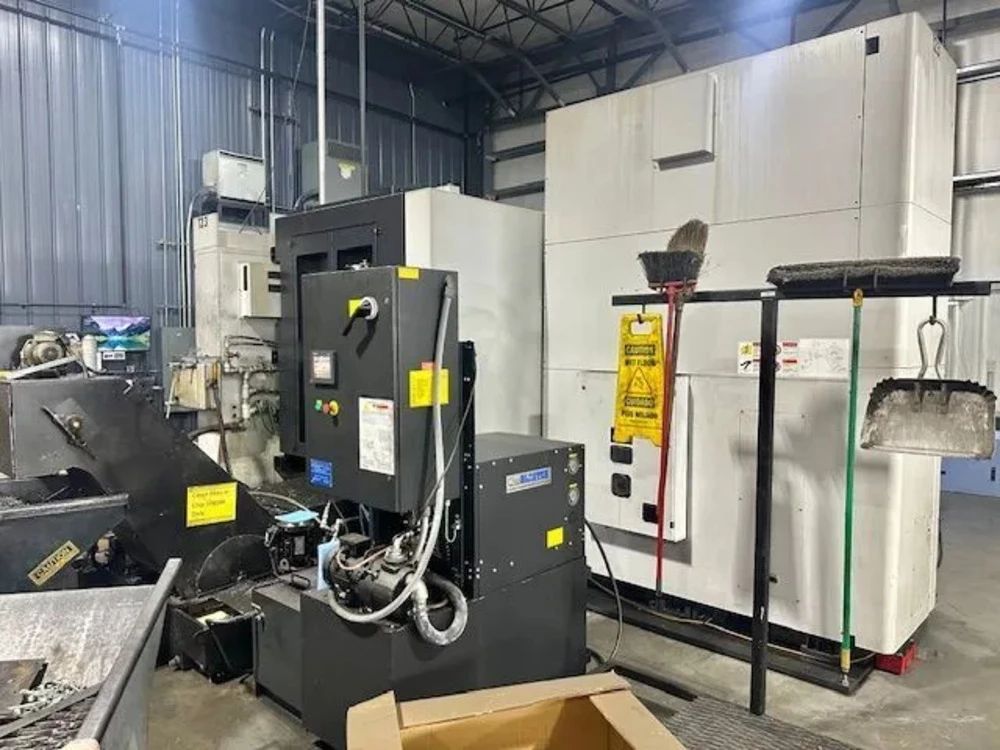

LNS Chip Blaster 1000 PSI |
|
Matrix Auto Tool Changer |
Nanno Smoothing |
|
PCMCI Card Slot |
Remote DPM + Cosy Remote H/W/(LPS) |
|
Tool Offsets 400 Pairs |
Video Monitouring Solution (Machining Area & LPS Set Up) |
|
Custom Macro B |
Renishaw Part Probe |
|
USB Port |
Tool Retract & Recover |
|
Hand Held Remote MPG |
Manual Guide I Conversational Programming |
