Year |
2019 |
|---|---|
Make |
Amada |
Model |
Dynasaw 430 |
Description |
CNC Horizontal Post Style Band Saw |
Reference # |
8077503 |
Price |
Activate Pricing |

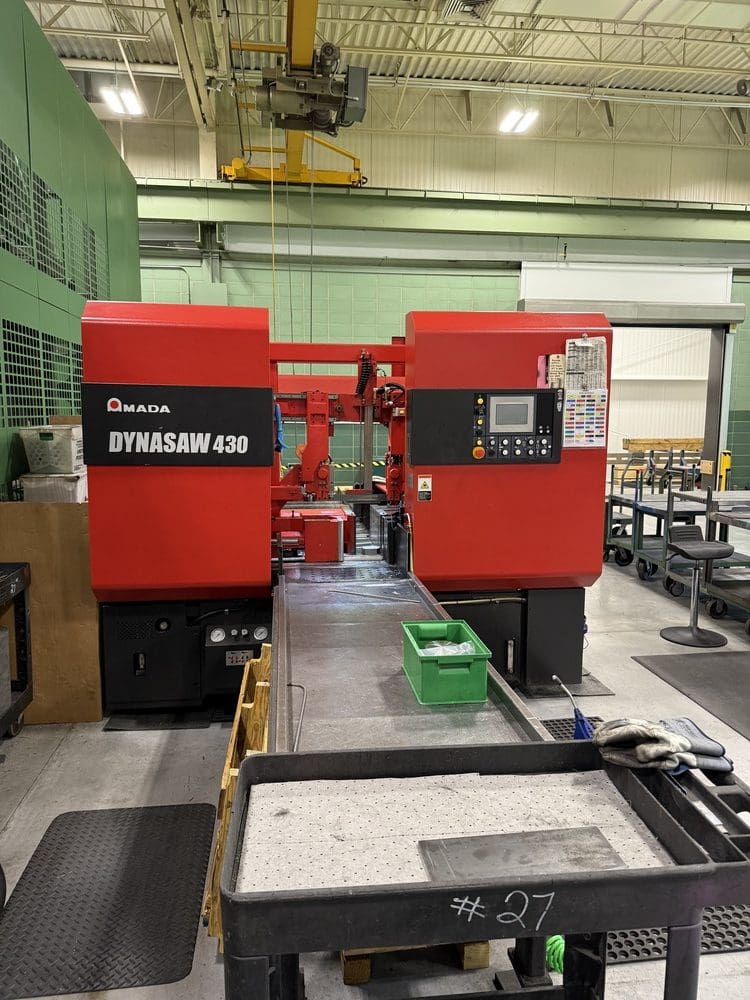

Used Amada Dynasaw 430 (2019) Saw for Sale. This pre-owned Amada automatic horizontal bandsaw is located in The United States. If you have any questions regarding this Amada Saw, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity (Round) |
1.18” - 16.93” |
|---|---|
| Capacity (Rectangle) |
1.18” x 1.18” - 16.93” x 16.93” |
| Work Load Capacity |
6613 Lbs |
| Material Index Stroke |
27.559” |
| Material Index Length |
0.394” - 99.999” |
| Min Remnant Length |
1.38” Plus Length of Parts |
| Blade Size (L x T x W) |
17’5” x 0.050” x 1 1/2” |
| Blade Speed |
49~394 ft/min, by Inverter |
| Blade Motor |
7.5 HP |
| Hydraulic Pump Motor |
2 HP |
| Power Requirement |
13 kVA / AC220V±10% / 3 PH / 60 Hz (All Other Voltages Require Transformer) |
| Table Height |
27.6” |
| Machine Weight |
7718 Lbs |
Features
|
Auto Trim Cut Function |
Back Gauge Stopper |
|
Blade Deviation Monitor |
Blade Speed Controlled by Inverter |
|
Chip Conveyor Included |
CNC Cutting Control with Hydraulic Pressure |
|
Motion Detector |
Self-Adjusting Wire Brush |
