Year |
2018 |
|---|---|
Make |
Hyundai |
Model |
Wia L230LMSA |
Description |
CNC Lathe |
Reference # |
8077371 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

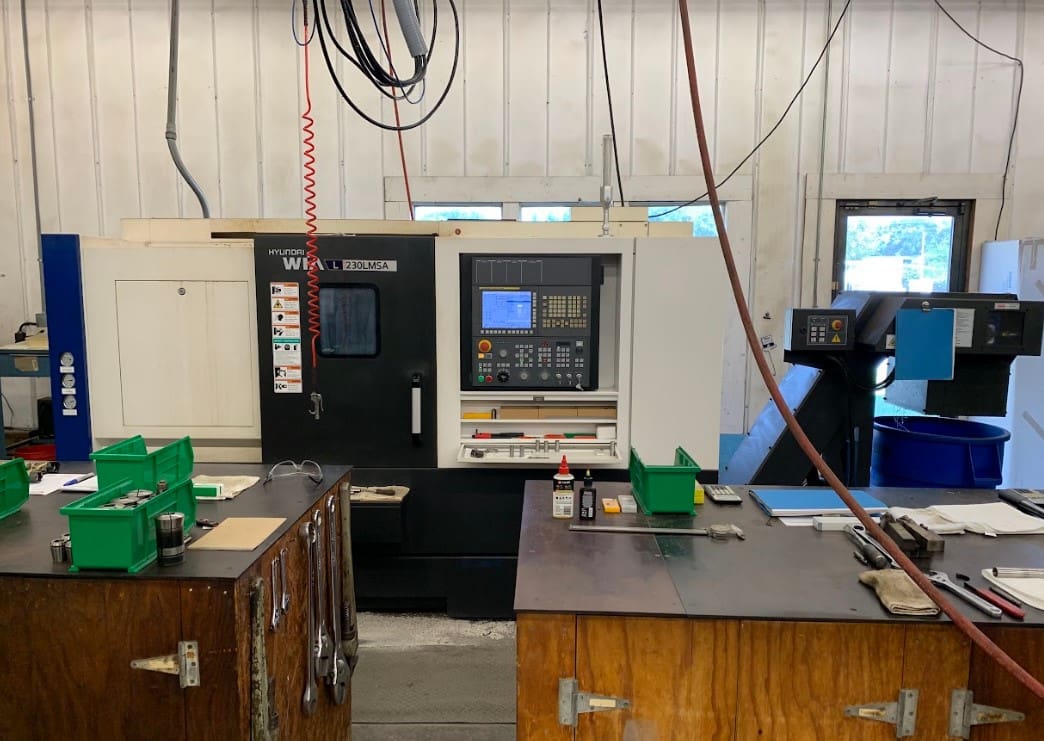

Used Hyundai Wia L230LMSA (2018) CNC Lathe for Sale. This pre-owned Hyundai Wia CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Hyundai Wia Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
8" |
|---|---|
| Bar Capacity |
2.6" |
| Swing |
23.6" |
| Turning Diameter |
12.2" |
| Spindle Speed |
4,000 RPM |
| Control |
Fanuc OiF |
| Distance Between Centers |
20.5" |
| Turret |
12 Station |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
| Sub-Spindle |
1.7" Bar Capacity |
| Spindle Motor |
20/15 HP |
| Chip Removal |
Chip Conveyor |
| Power Requirement |
220/3/60 |
| Dimensions |
132.76" x 66.34" x 73.23" |
| Weight |
11,023 Lbs |
Features
|
300 PSI Coolant Pump System |
LM Slide Type |
|
Royal 3J Accu-Length Collet Chuck (A2-5 Dead Length) |
Royal S-26 Accu-Length Collet Chuck (A2-6 Dead Length) |
|
Spindle Liners |
Oil Skimmer |
