Year |
2017 |
|---|---|
Make |
Ficep |
Model |
1204 DDRC |
Description |
CNC Drilling & Thermal Cutting System |
Reference # |
8076891 |
Price |
Activate Pricing |

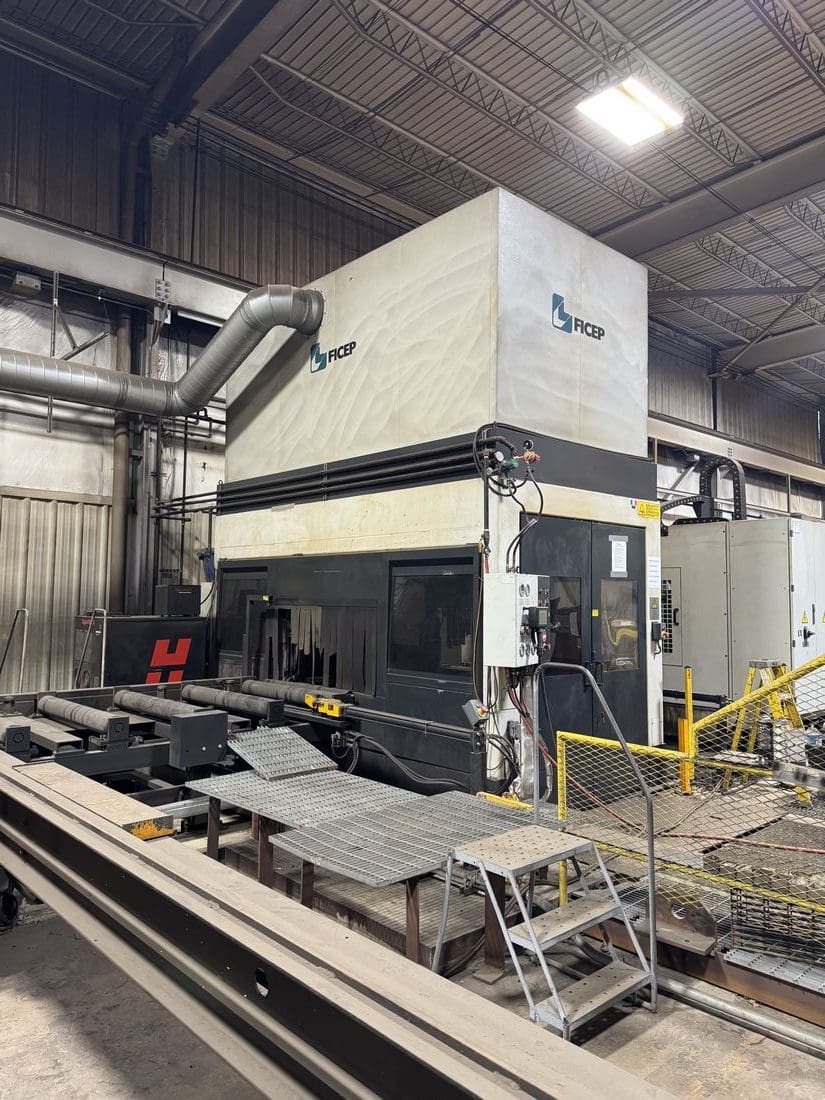

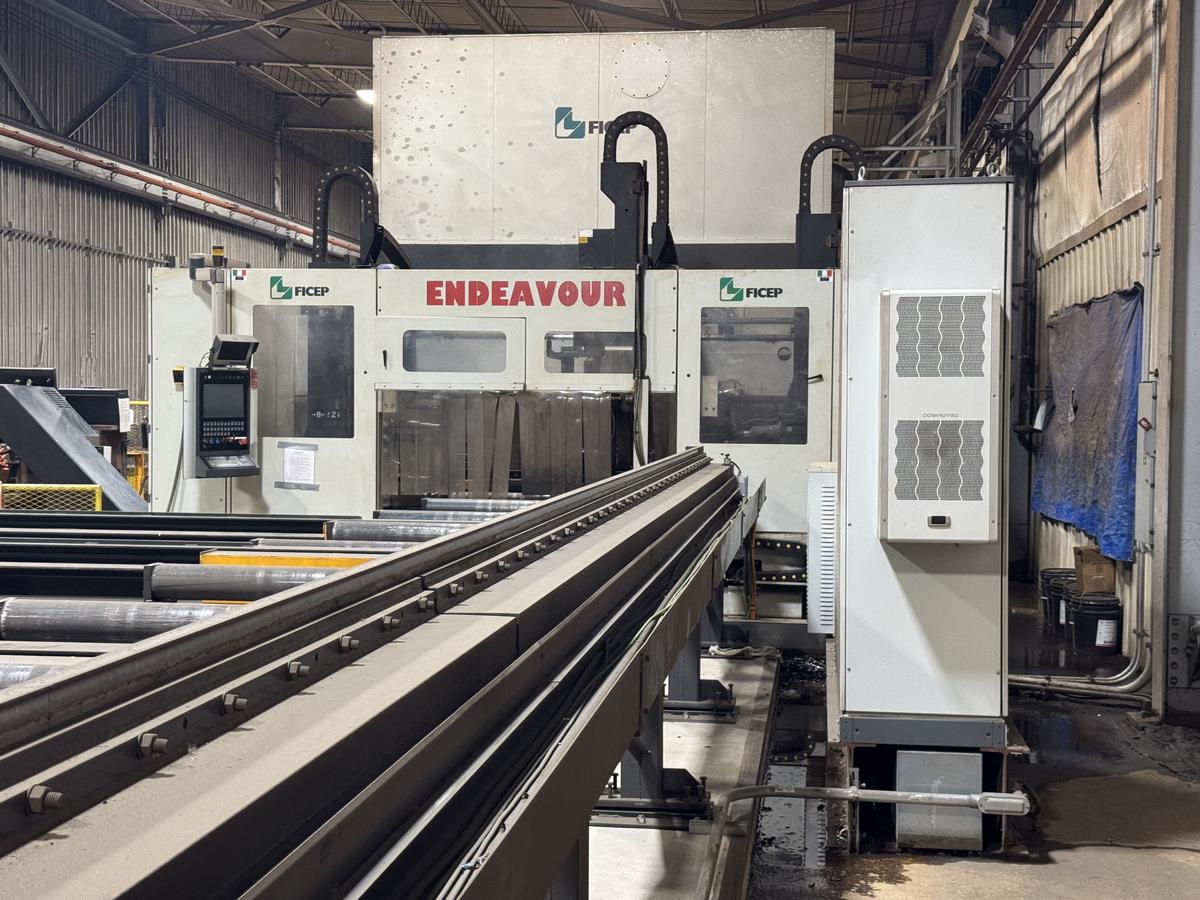

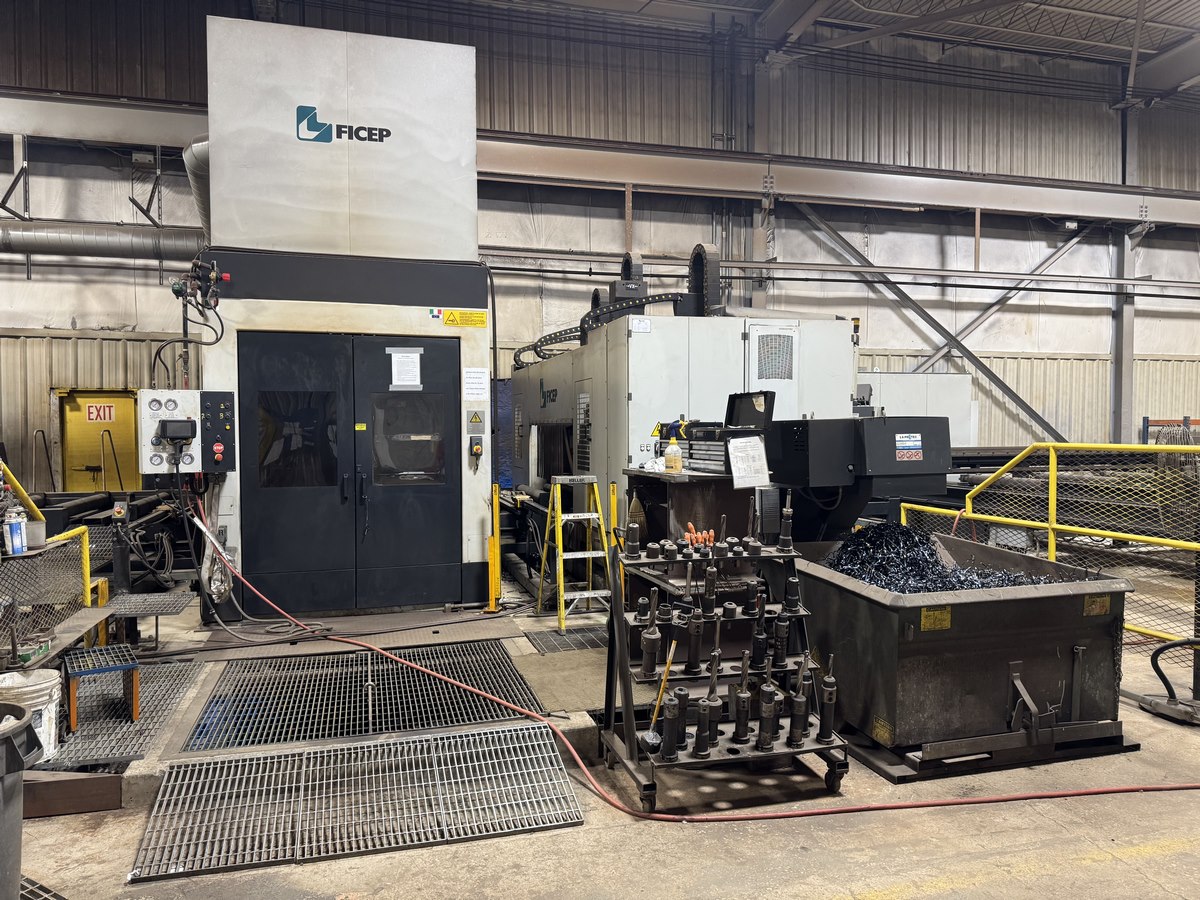

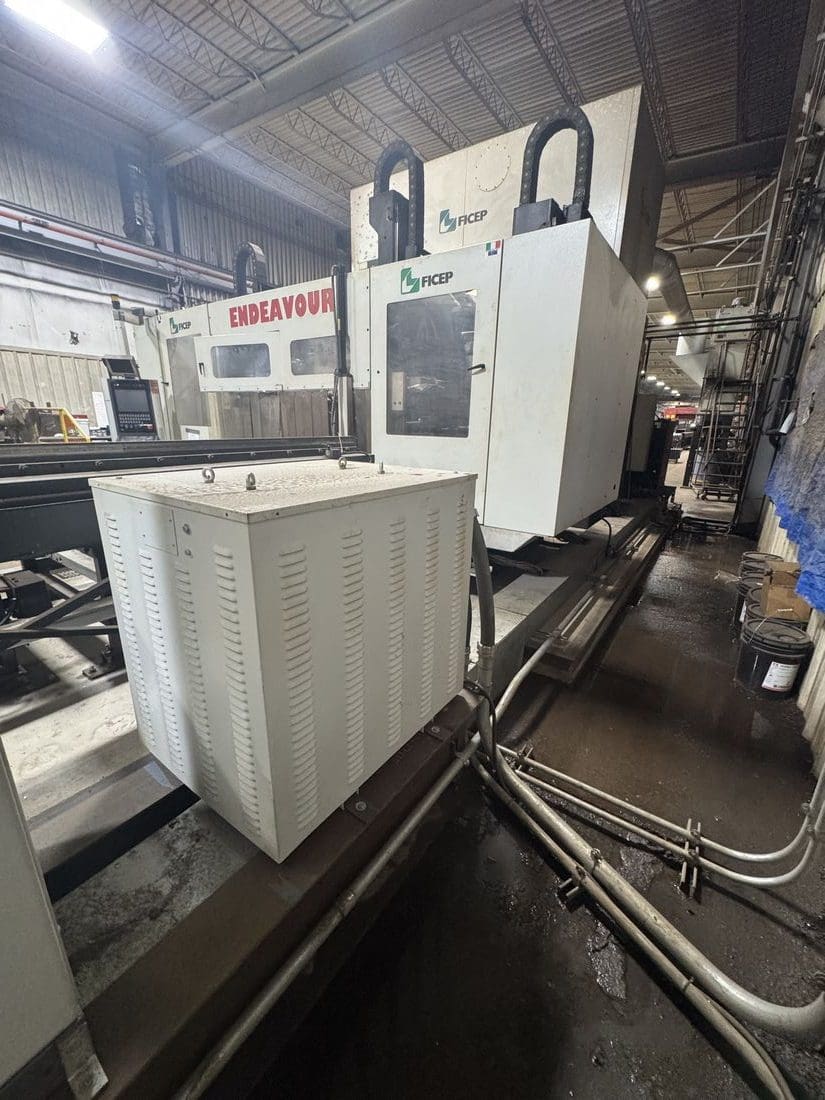

Ficep 1204 DDRC
Specifications
| Beam Depth |
Min 3-1/8” & Max 48” |
|---|---|
| Flange Height |
Min 3/8” & Max 24” |
| Spindle Speed |
180 - 5,000 RPM |
| Passline |
34" |
| Plasma Cutting System |
Carbon Steel (Mild Steel) / Max Thickness: 1” / Ratio Diameter/Thickness from 1:1 to 2:1 |
| Note |
All Beams Complete with Longitudinal Copes on Both Heads Having a Max Length of 15-3/4” on the Lower Half Flanges |
| Additional Information |

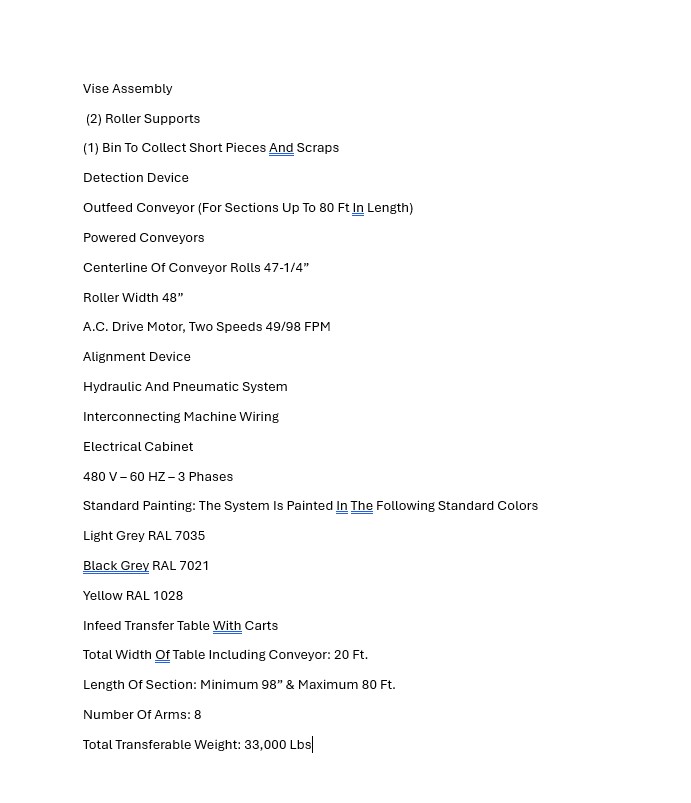

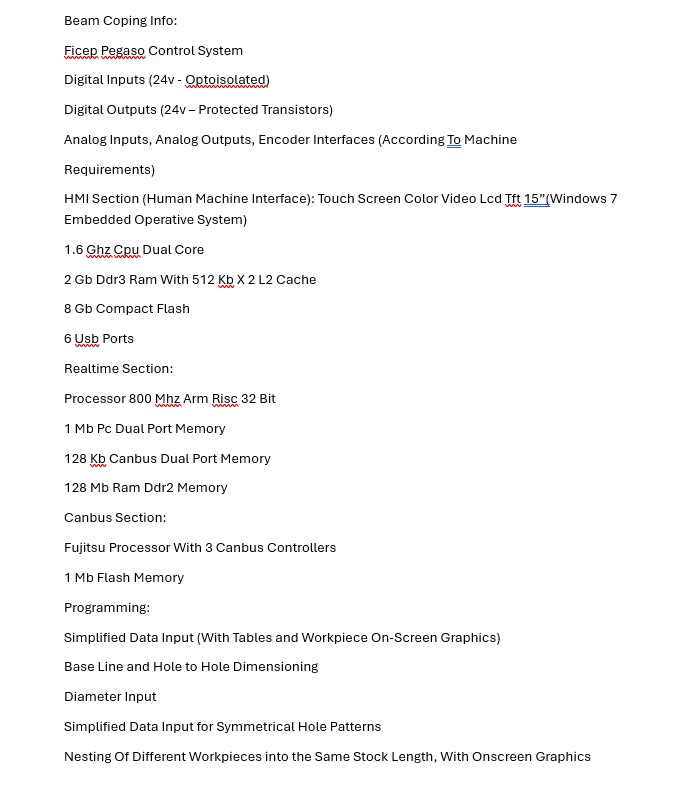

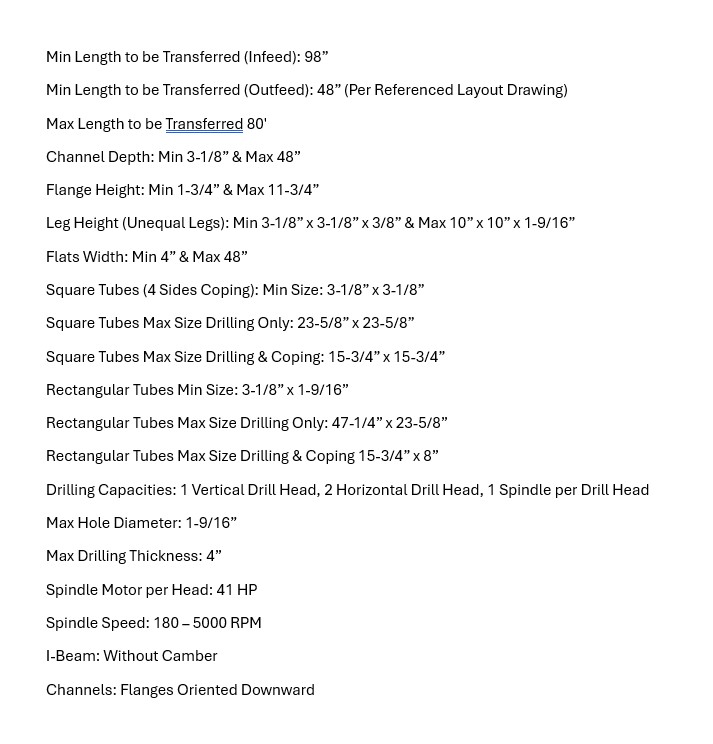

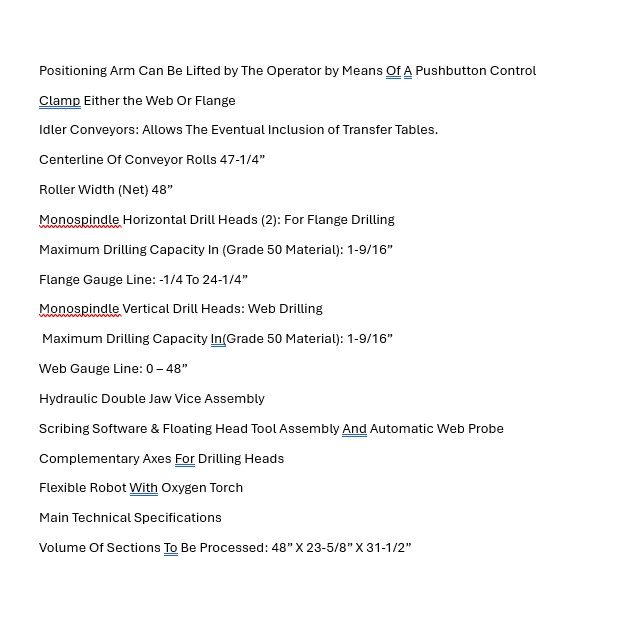

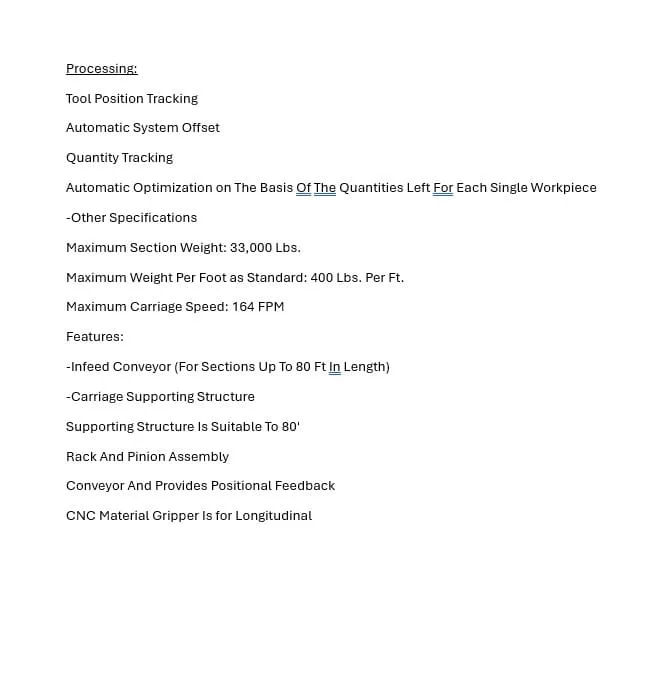

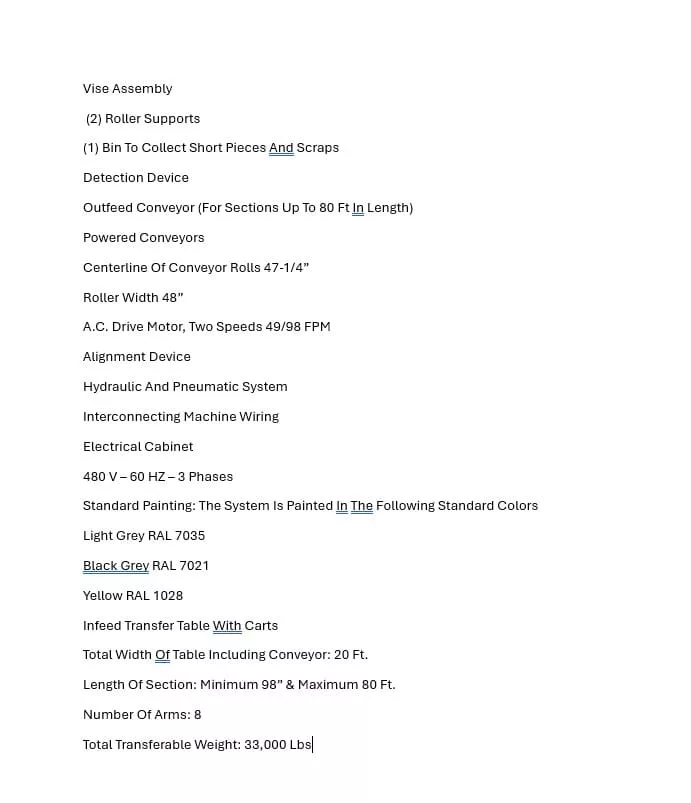

Please See Photos for More Specs |
Features
|
(15) HSK-A80 Connections for Tool-Change System |
(2) Additional Scribing Tools |
|
Air Conditioner Units for Electrical Equipment |
Automatic Gas Control Panel |
|

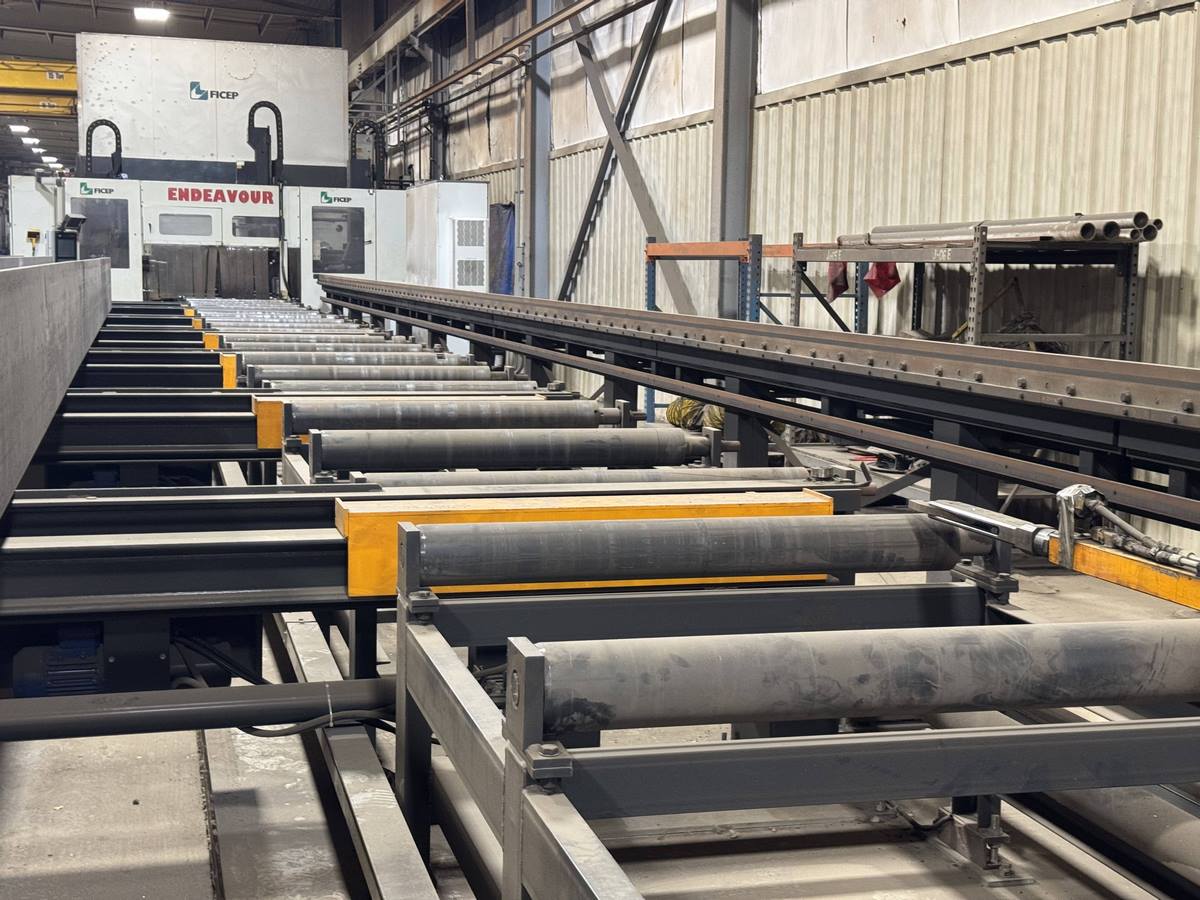

Automatic Loading Using Transfer Table with Catches |
Automatic Unloading Using the Transfer Table with Catches |
|
Automation System for Sections/Pieces Loading and Unloading |
Camera Mounted on Material Gripper |
|

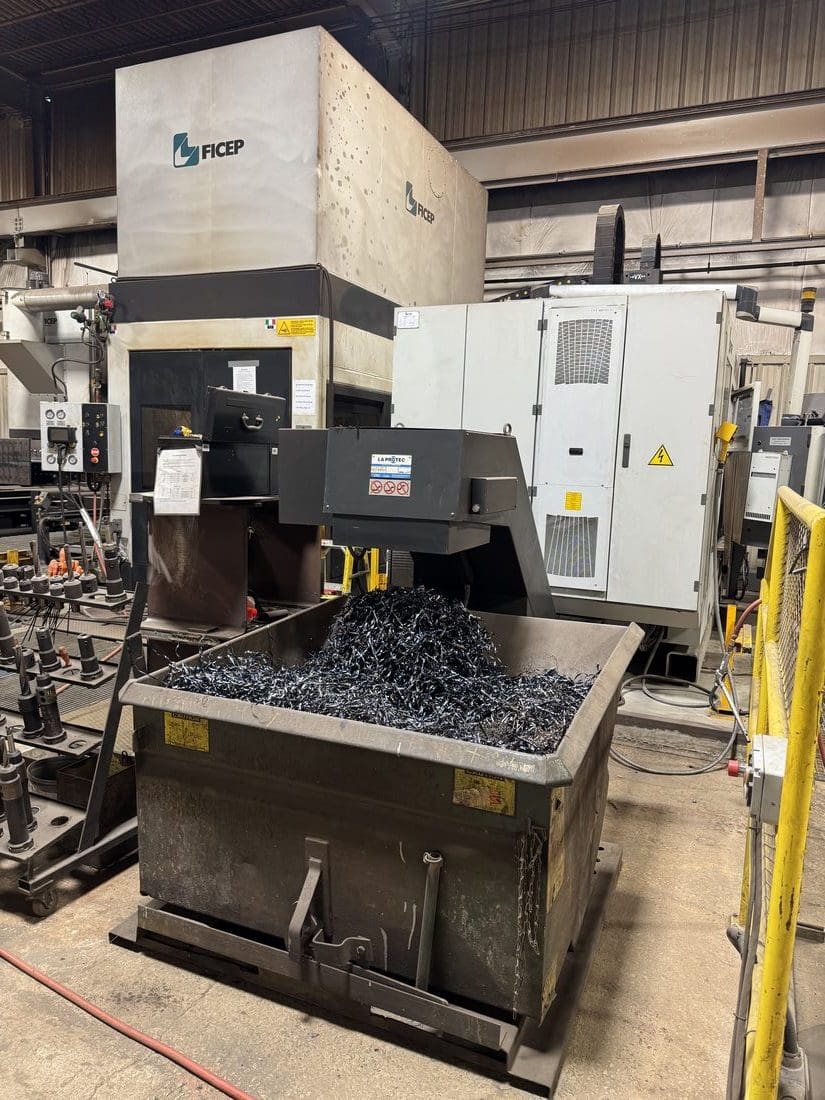

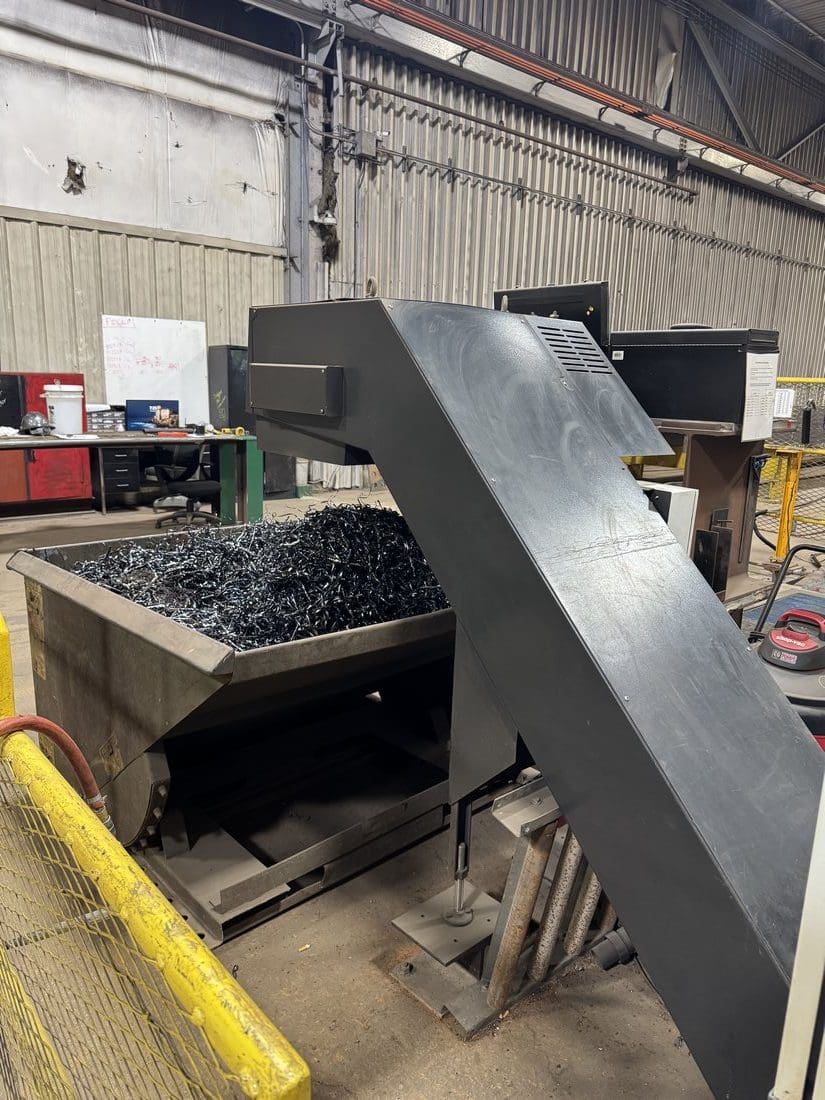

Chip Conveyor for the Drilling Unit |

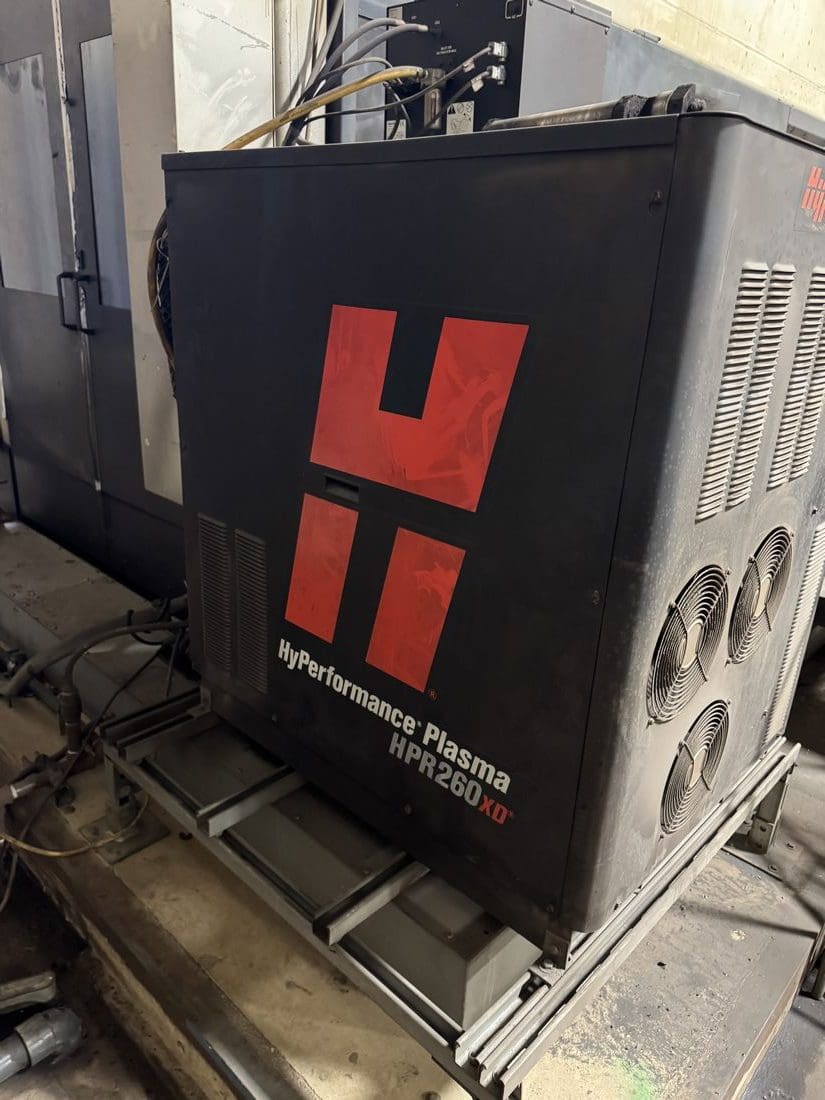

HPR260XD Plasma Cutting System with Automatic Oxy Fuel Torch Changer |
|
HSK-A80 Toolholder |
Profile Survey Device with Laser Unit |
|
Short Piece and Scrap Unloading Device |
Smoke Intake System for Robot |
|
Tool Change System with (6) Positions |

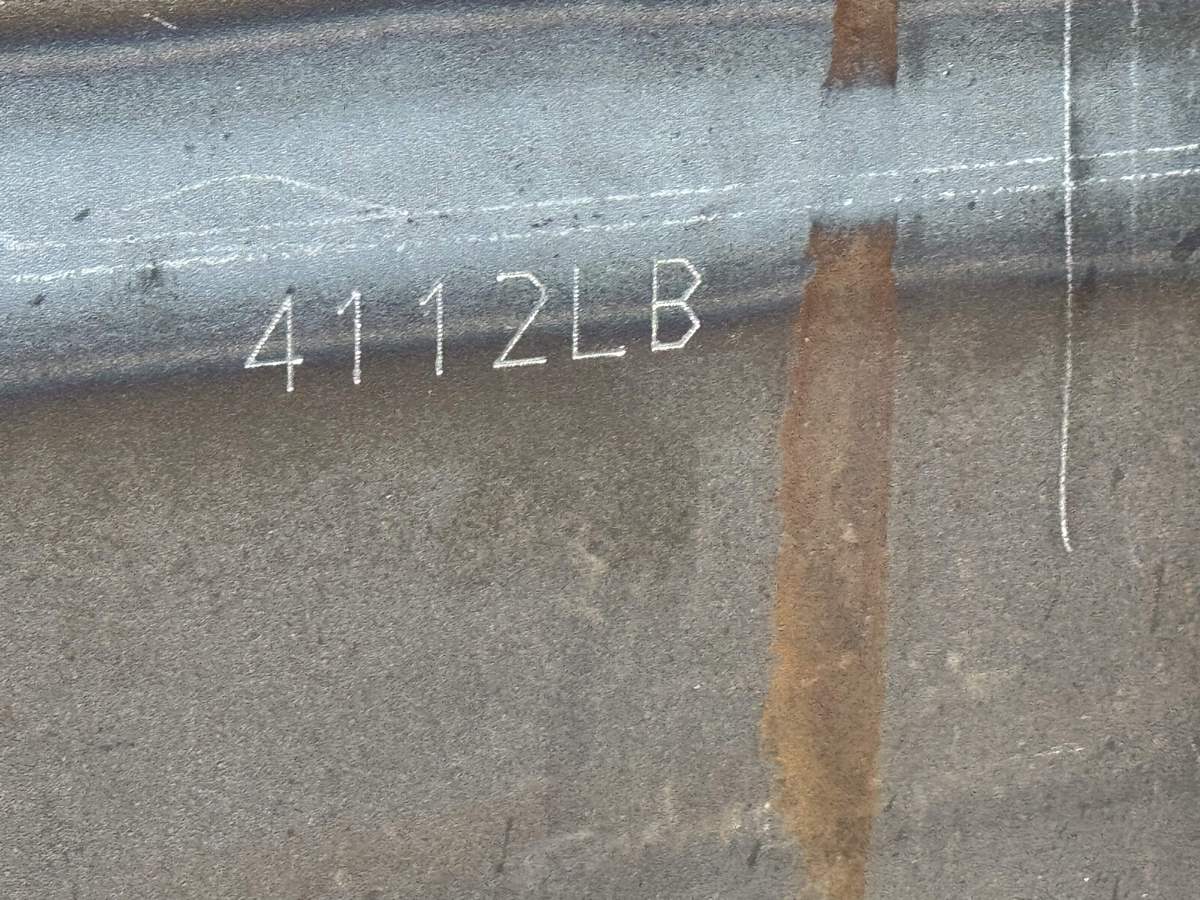

Underside Scribing |
