Year |
2014 |
|---|---|
Make |
Mori Seiki |
Model |

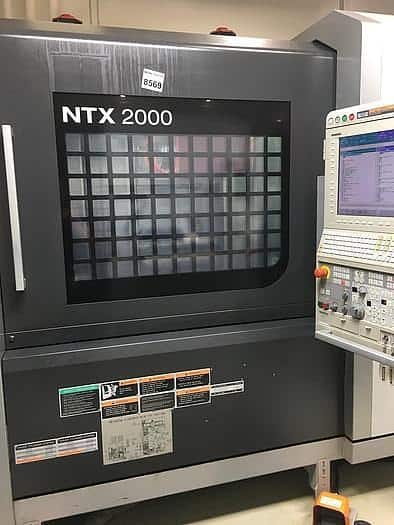

NTX2000/15000SZ |
Description |
CNC Lathe |
Reference # |
8068603 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Chuck Size |
8" |
|---|---|
| Bar Capacity |
2.5" |
| Swing |
27.5" |
| Turning Diameter |
24" |

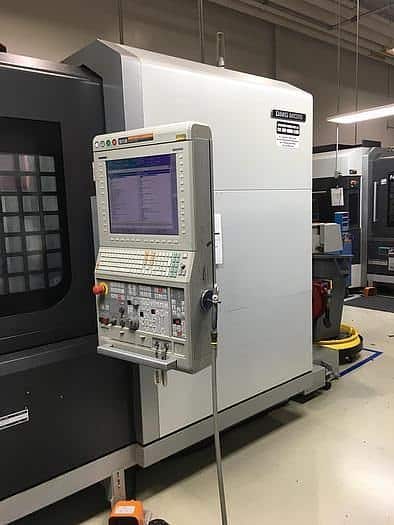

| Control |
Fanuc 31ib |
| Distance Between Centers |
60.6" |
| Live Tooling |
Milling, C-Axis Live Tooling, Y-Axis |

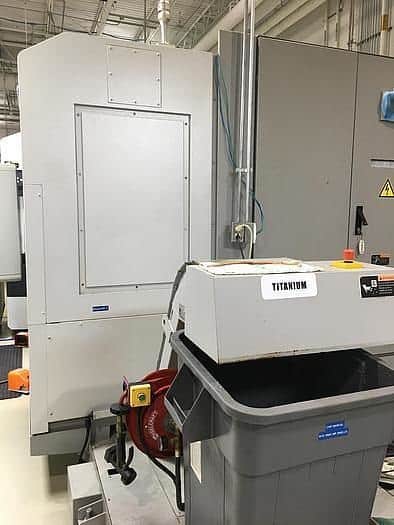

| Chip Removal |
Chip Conveyor |
| Integrated Spindle Motor With C-Axis |
0.0001 Deg – 5,000 Rpm |
| Output Power-On Time |
24.8 Hp |
| Max. Rotational Speed of The Working Spindle |
10,000 Rpm |

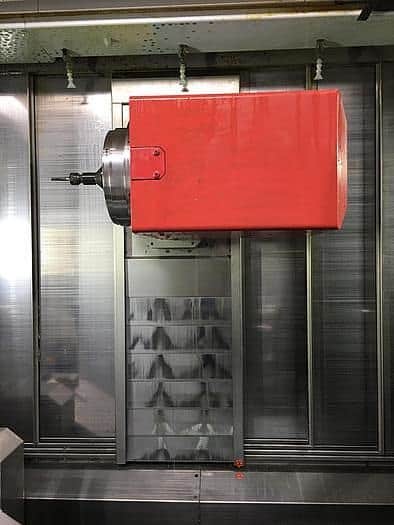

| Taper Hole of Rotary Tool Spindle |
Capto C6 |
| B-Axis Swivel Range |
+- 120 Deg |
| Tool Magazine Capacity |
40 ATC |
| Max Tool Diameter |
4.9" |
| X-Axis Travel |
19.5" |
| Y-Axis |
4.9" |
| Z-Axis Travel |
61.4" |
| X2-Axis Travel |
6.3" |
| Z2-Axis Travel |
55.2" |
Features
|
Renishaw Omp60 Probe By NCS |
Signal Tower 3 Layers |
|
Spindle 1 Hobbing Function |

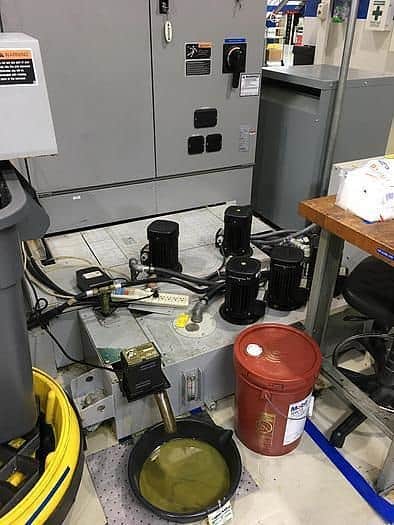

Super High Pressure Coolant I/F |
|
5 External M-Codes |
Tool Storage 76 Tools Capto C6 |
|
Bar Feeder I/F (LNS Multiple) |
Capto C6 |
|
Chip Conveyor Rh Hinge Type |
Counter Spindle Option |
|
DMSQP - Chipblaster D30/70 P/N Msd30/70ntx2000 |
DMSQP - Number Of Reg. Prog. Exp. P/N A02b-0326-R191 |
|
DMSQP - Part Program Storage 1mb P/N A02b-0326-R177 |
Dual Spindle |
|

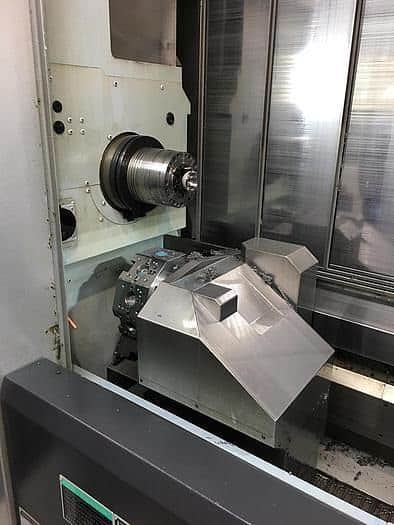

Lower Turret |
High Torque Spindle (Spindle 1) |
|
High Torque Spindle (Spindle 2) |

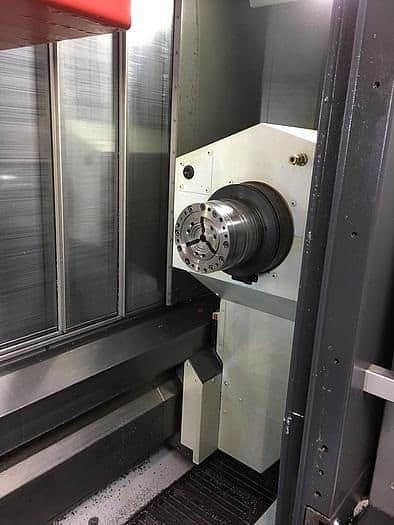

Kitagawa 8" Chuck (Spindle 1) |
|
Kitagawa 8" Chuck (Spindle 2) |
Manual Set - P/N Morimanuale |
|
P&D - Standard Ladder For 31ib - I81799a50 |
P&D Electrical Circuit Diagrams P/N I48568c04 |
|
P&D Programming Resolution By 1/10 Saaopntx2001101 |
