Year |
2009 |
|---|---|
Make |
Quintax |
Model |
Q5H |
Description |
5 Axis CNC Router |
Reference # |
8077970 |
Price |
Activate Pricing |

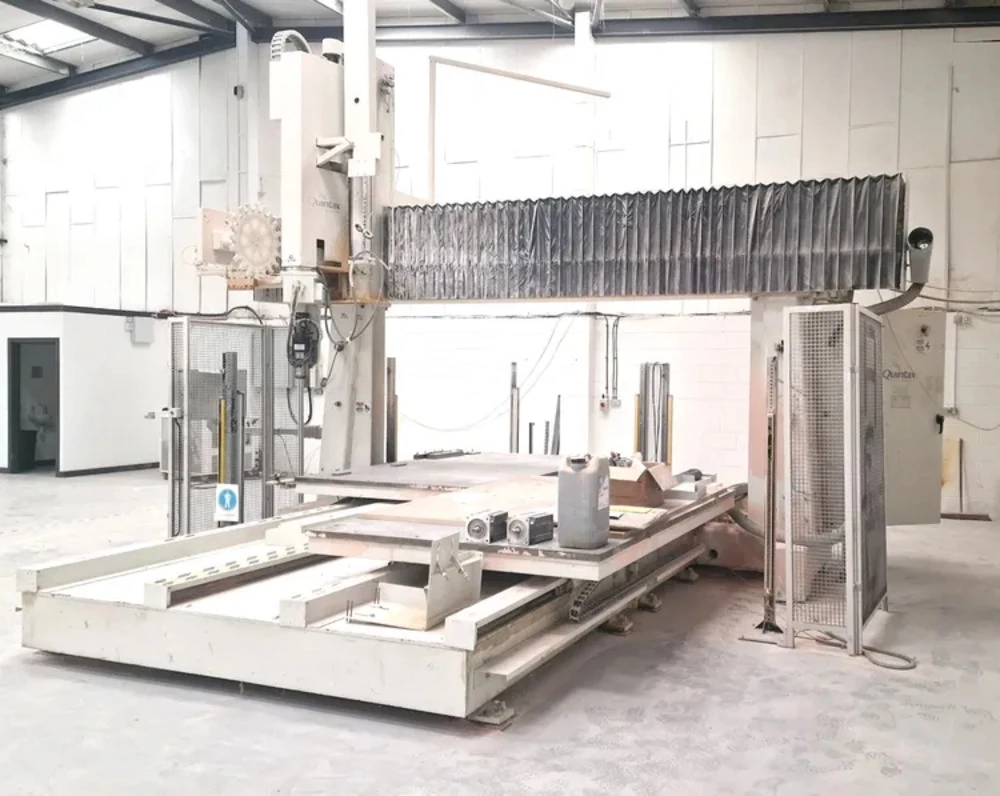

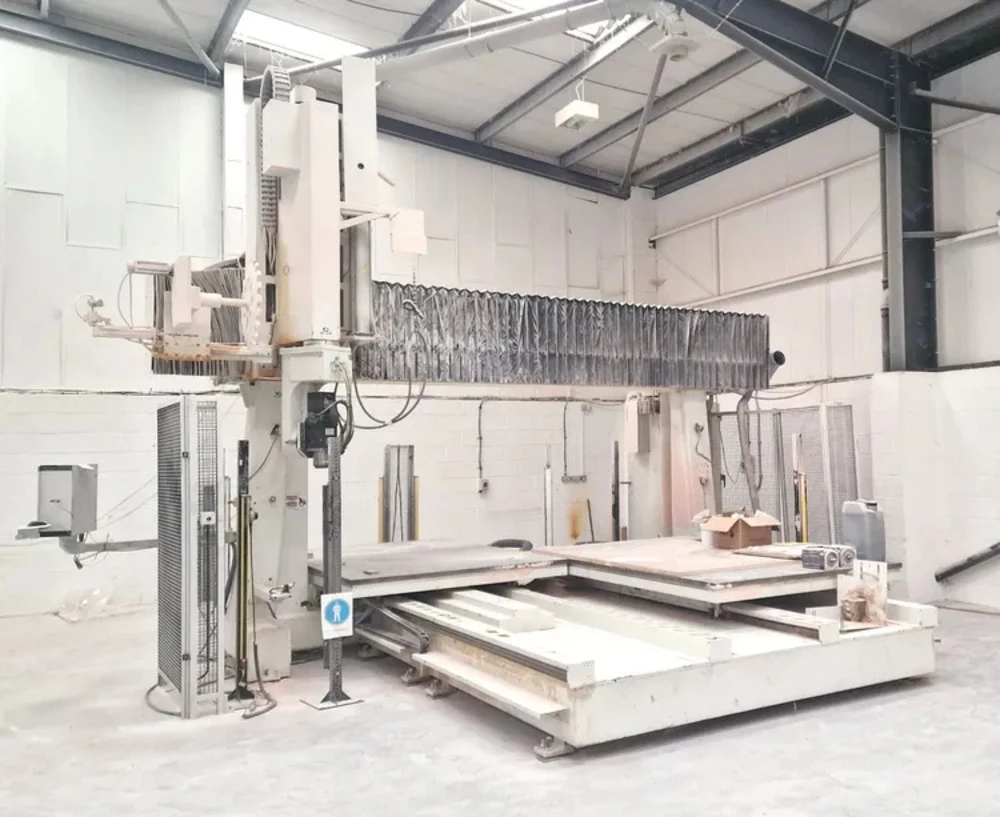

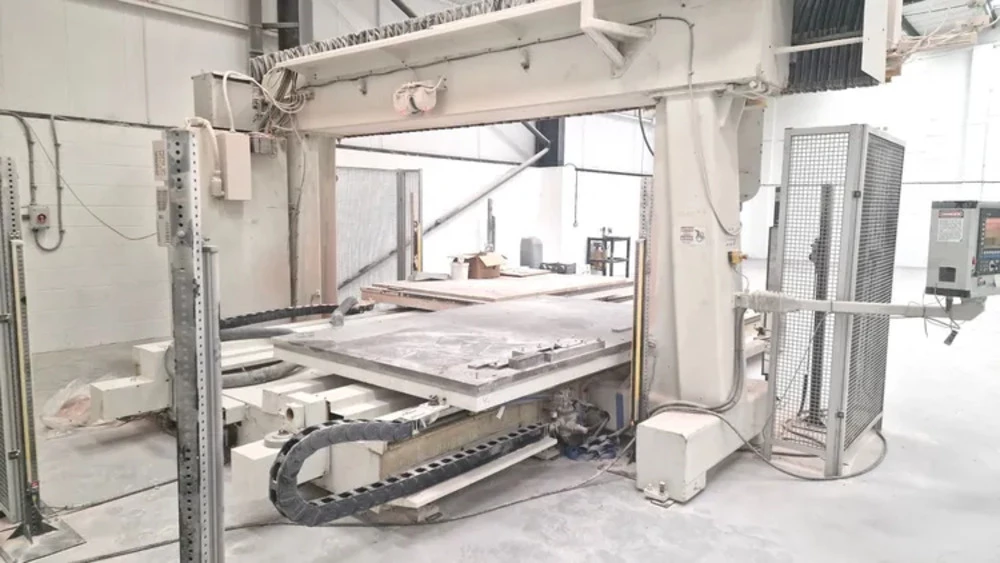

Used Quintax Q5H (2009) CNC Router for Sale. This pre-owned Quintax 5 axis cnc router is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Quintax CNC Router, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
72" |
|---|---|
| Table Length |
120" |
| Number of Axis |
5 Axis |
| Number of Tables |
(2) Two |
| Longitudinal |
173.2" (4400 mm) |
| Y-Travel |
149.6" (3800 mm - Cross) |
| Z-Travel |
59.1" (1500 mm - Vertical/Limitation Under the Cross Rail) |
| C-Travel |
+/- 360" |
| B-Travel |
+/- 120" |
| Spindle |

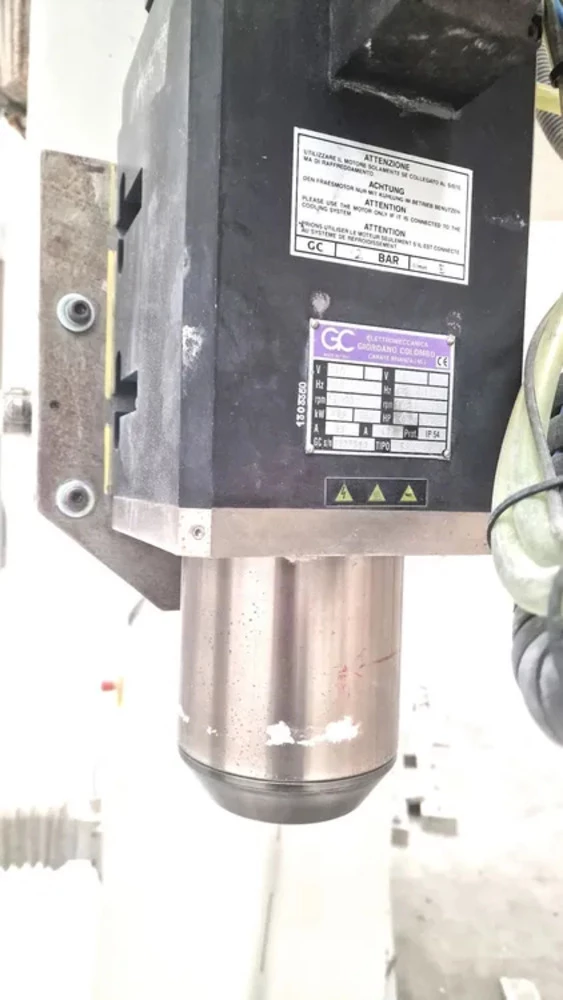

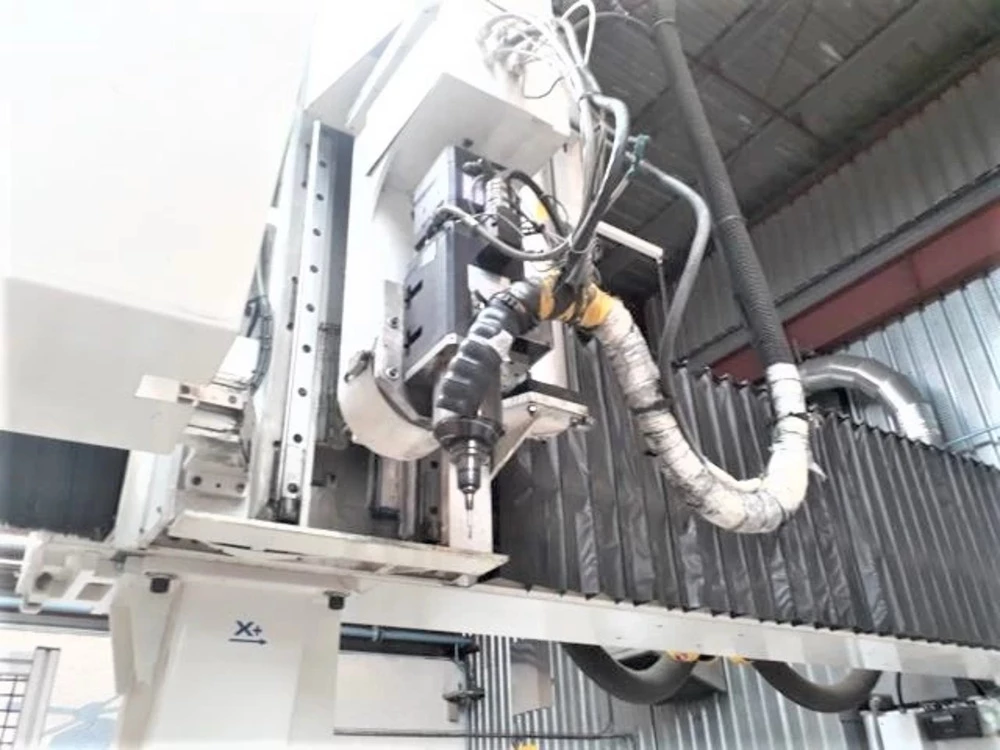

30 kW 40HP HSK 63F Tool Change Style Spindle / Liquid Cooled / Air Clamping Including |
| Automatic Tool Changer |

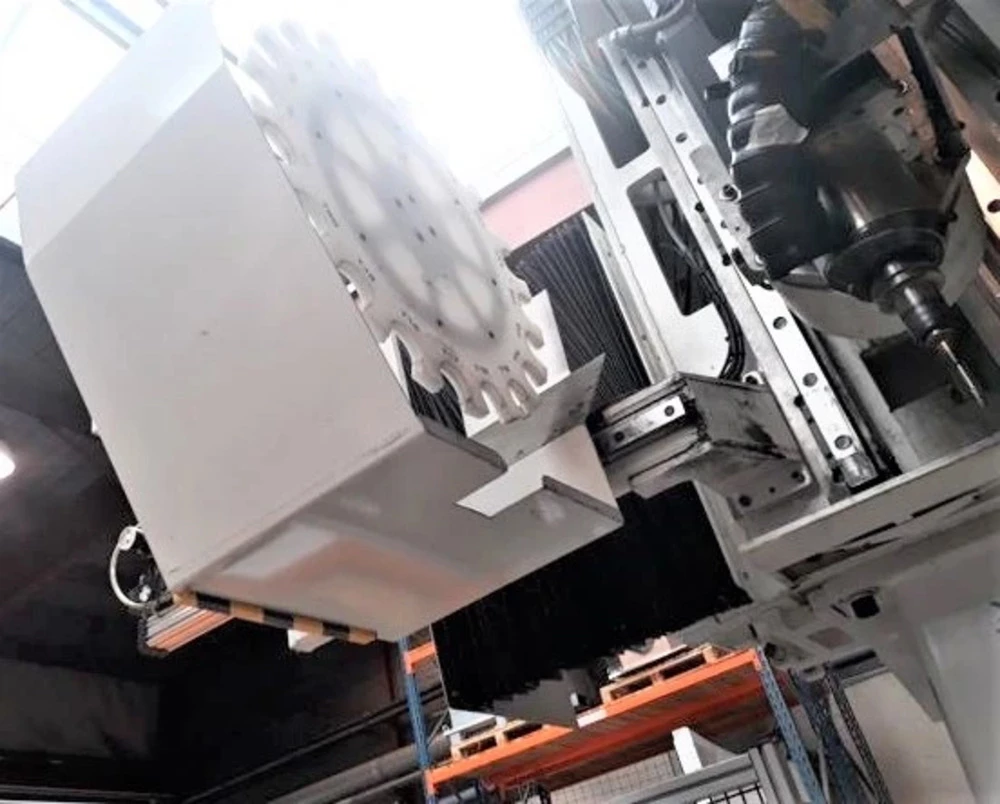

20-Station Automatic Rotary Carousel Tool Changer |
| Spindle Drive |

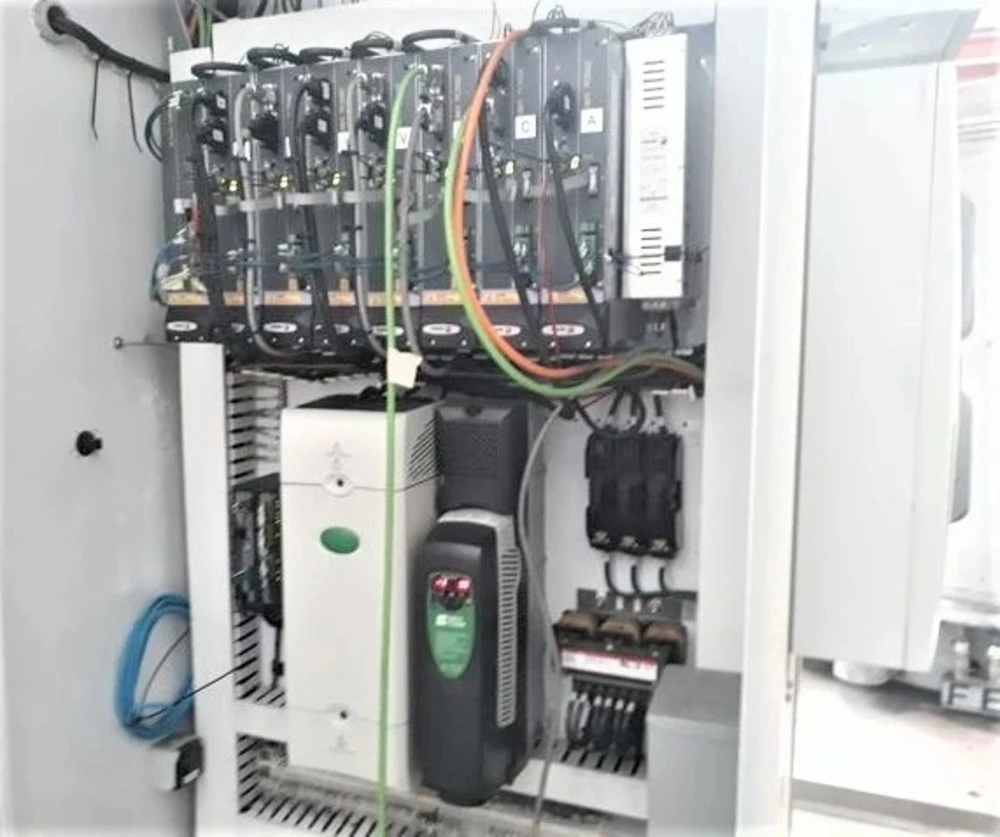

AC Variable Speed Inverter Drive for Spindle |

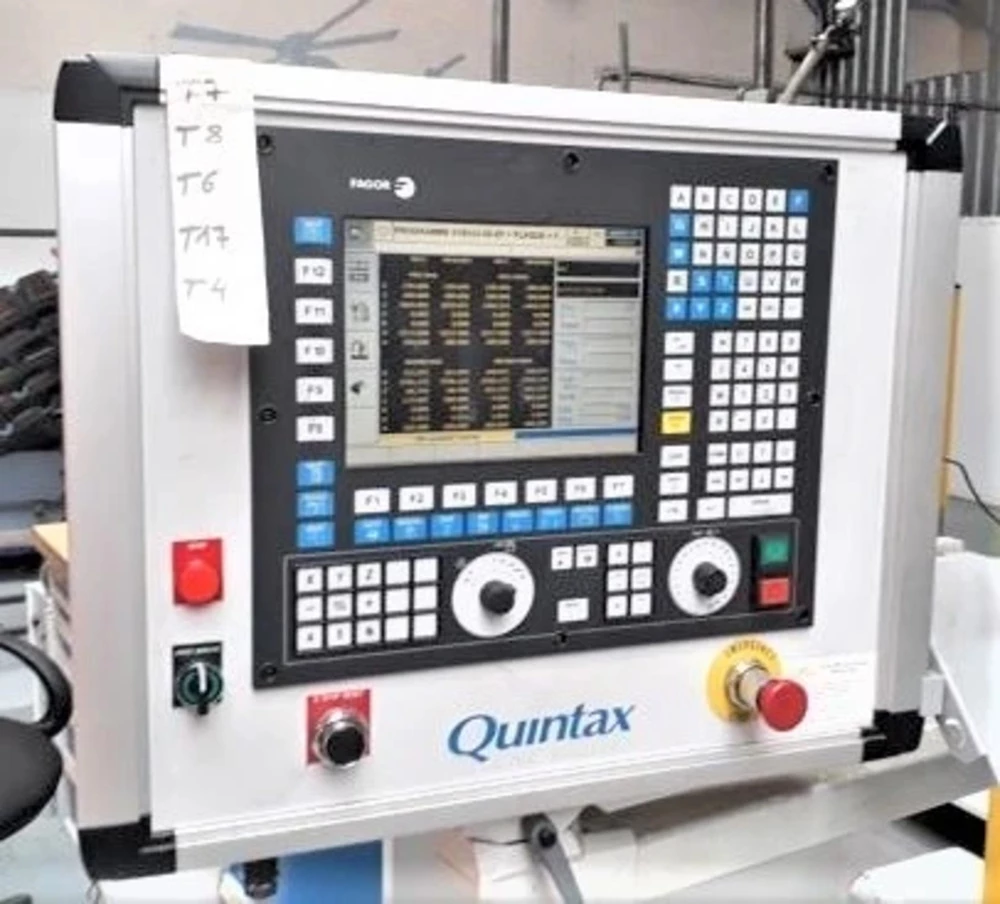

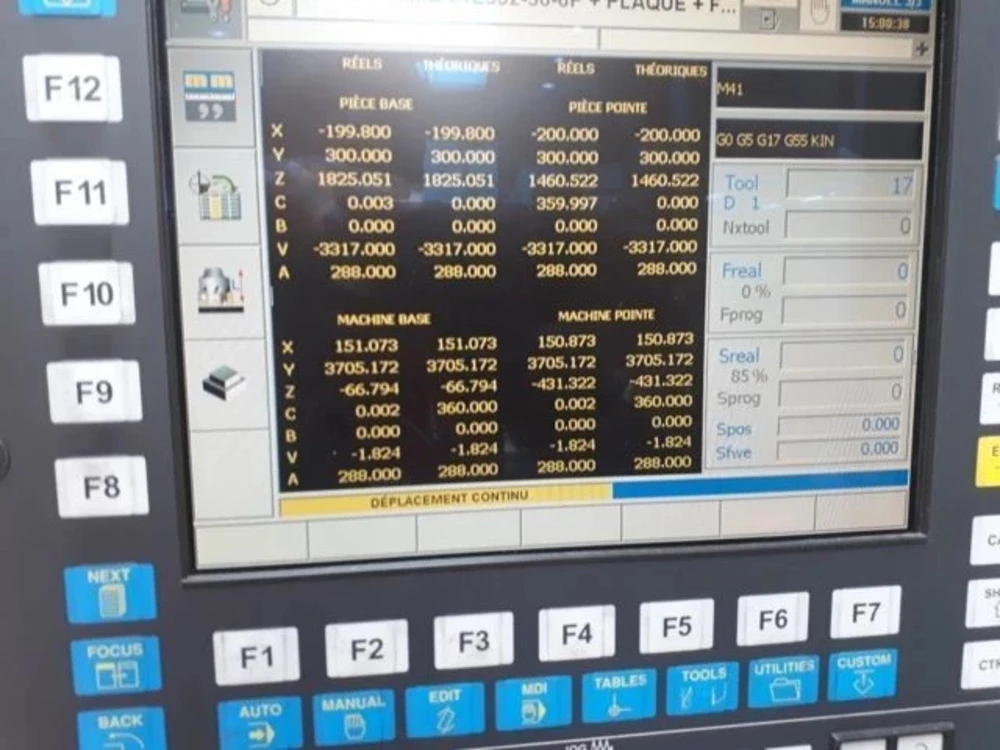

| Control |
Fagor 8070 |
Features
|
15 KW 20 HP BagHouse Rated 170 M/3 Minute at 254 mm Water Gauge (Includes Hoses and Controls) |
Catia 5 Postprocessor |
|
Central Lube System with Low-Level Switch |
Chiller Package |
|
Continuous C-Axis |

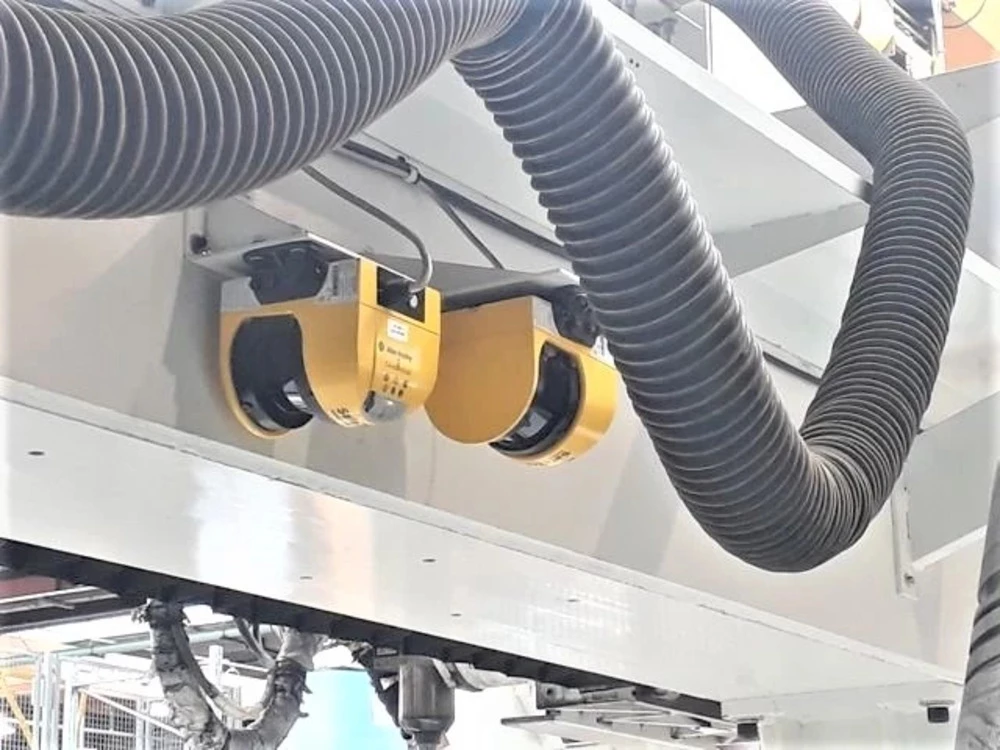

Dust Collection Nozzle / Hoses for 5-Axis |
|
Hand-held Teach Pendant |
Perimeter Light Curtain System |
|

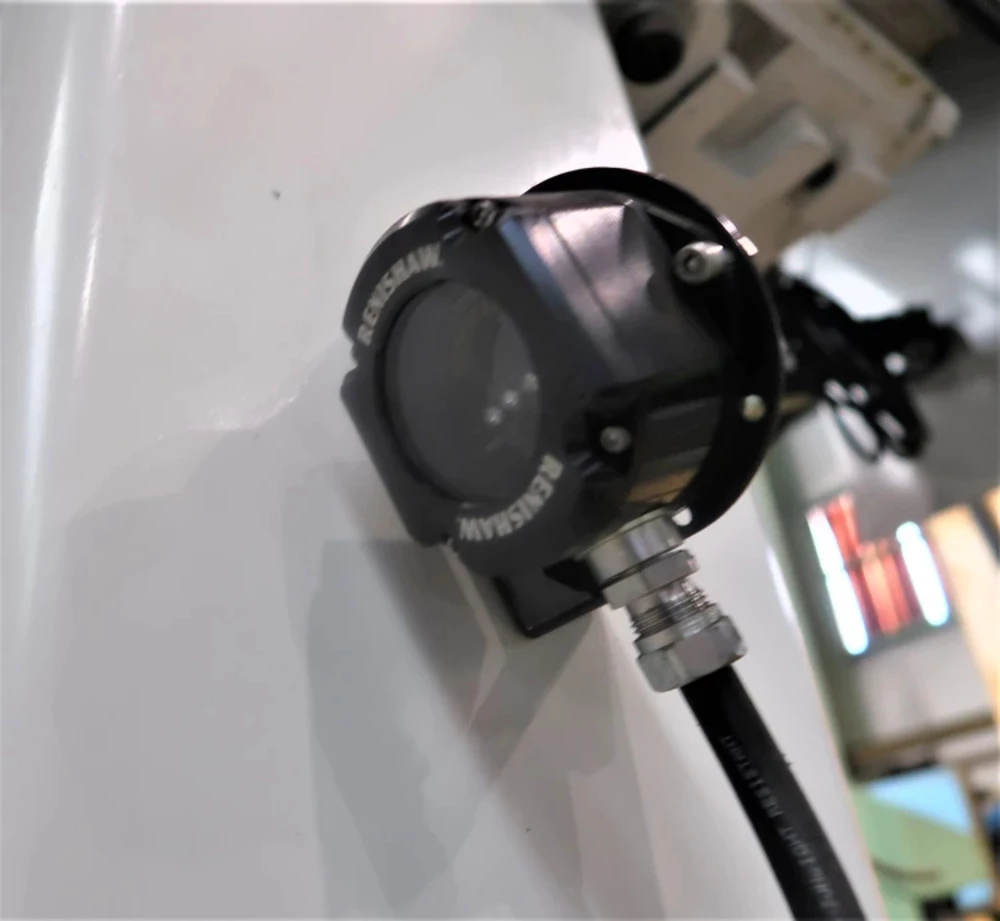

Renishaw MP-10 Optical Probe and Software |
