Year |
2004 |
|---|---|
Make |
Current |
Model |

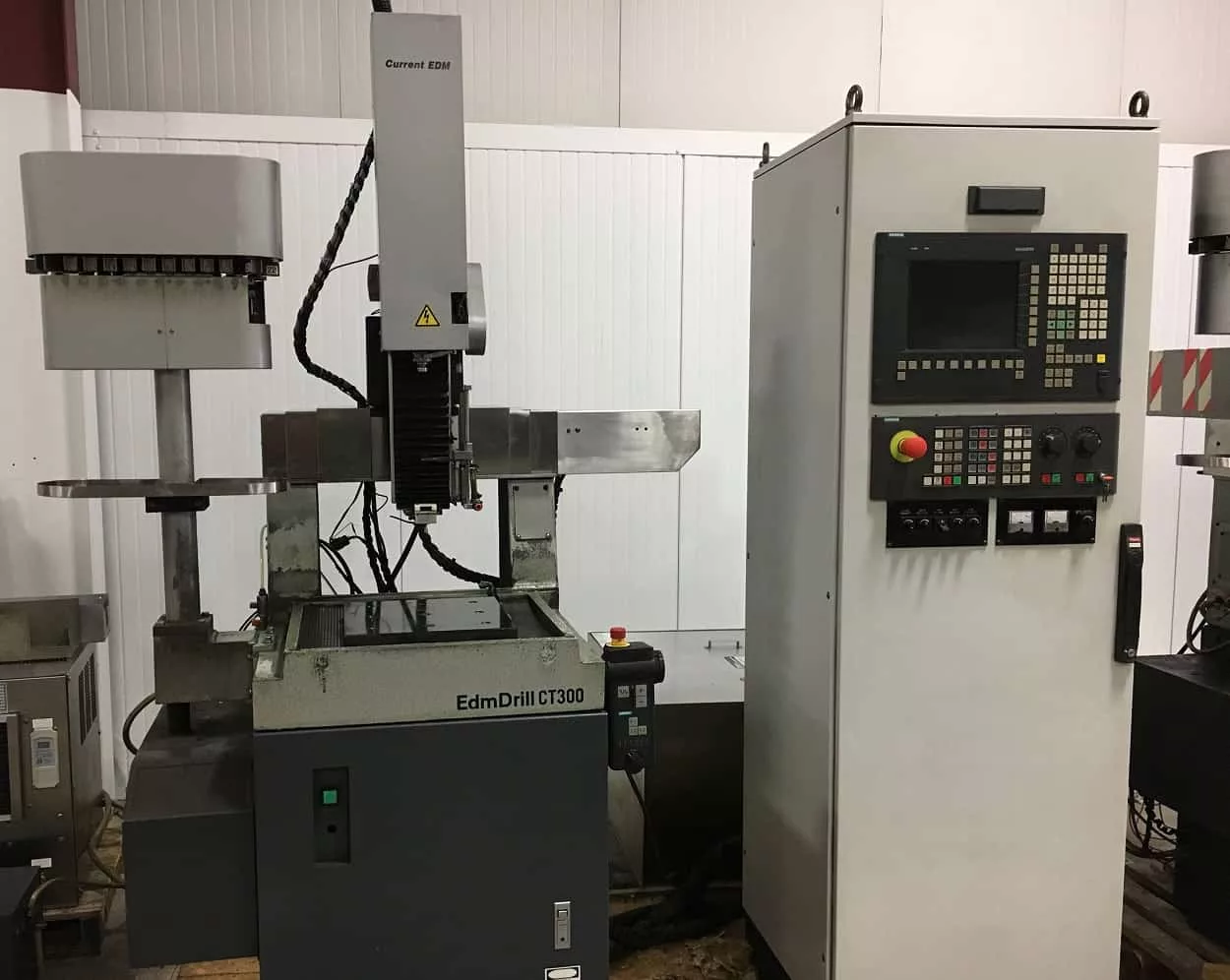

EdmDrill CT300 |
Description |
EDM Hole Popper |
Reference # |
7794005 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| X-Axis Travel |
12" |
|---|---|
| Y-Axis Travel |
8" |
| Z-Axis Travel |
16" |
| Control |

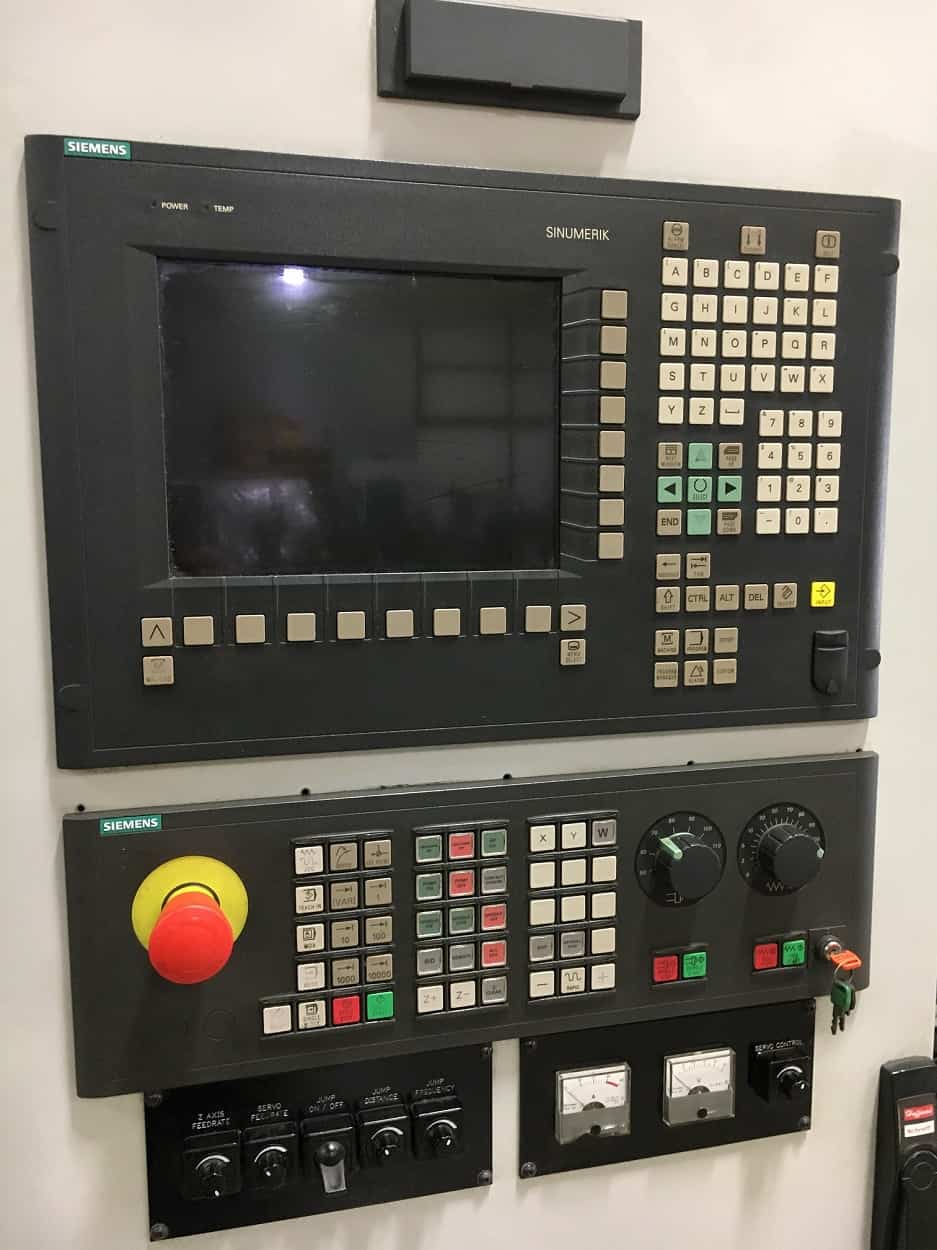

Siemens Sinumerik 840Di |
| Power Source |
57 AMP |
| Guide Travel |
10" |
| Table Dimensions |
12" x 12" |
| Table Resolution |
.0002" |
| Machine Max Table Load |
682 lbs |
| Working Tank Size |
18" x 16" |
| Electrode Diameter Range wo/AEC |
.004" to .256" |
| Electrode Diameter Range w/AEC |
.012" to .118" |
| Power Requirement |
220/3/60, 208/3/60 |
Features
|
24 Position Automatic Electrode Changer |
All Available Manuals and Accessories |
|

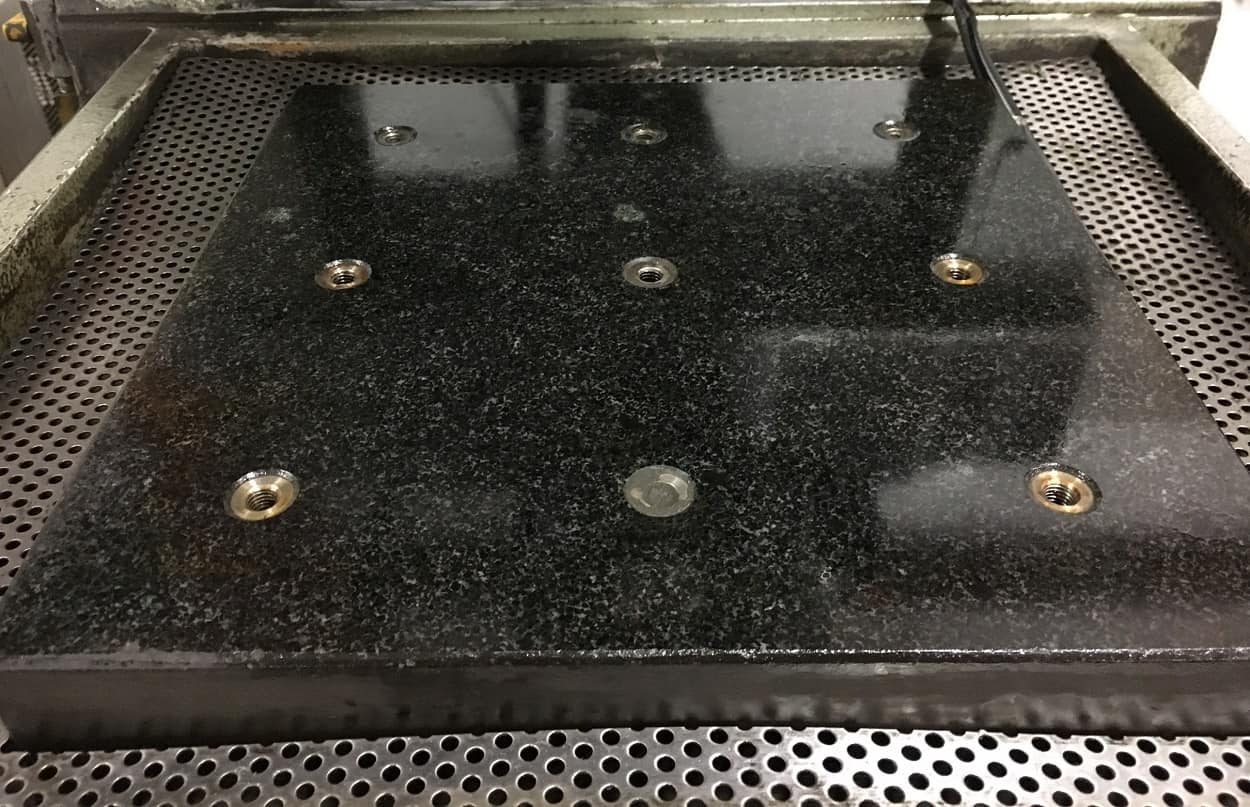

Granite Worktable |
High Pressure 3-Piston Type Flushing Pump |
|
Remote Hand Controller |
Siemens High-Dynamic AC Servo |
|
w/ Absolute Positioning Encoders |
*
