Year |
1999 |
|---|---|
Make |
Accurshear |
Model |
625012 |
Description |

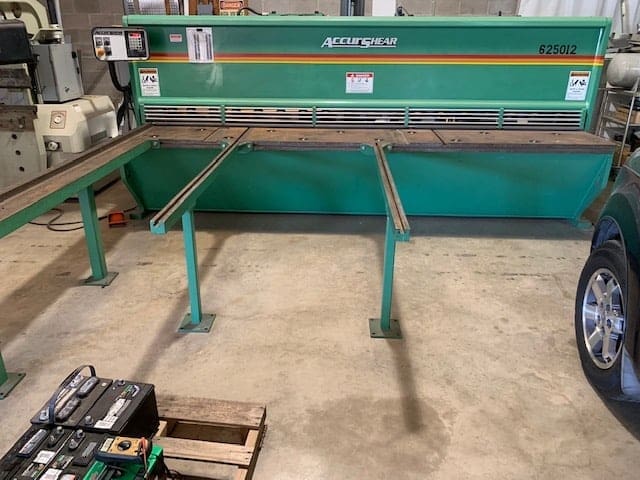

1/4" x 12' Hydraulic Shear |
Reference # |
7798228 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Capacity |
1/4" |
|---|---|
| Max Shearing Length |
12' |
| Control |
Accurshear |
| Back Gauge |
36" |
| Squaring Arm |
12' |
| Power Requirement |
460/3/60 |
| Notes: |
Shear Capacity Up To 80,000 Tensil And 44,000 Yield Strength, Pendant Control C/W On/Off Buttons, Mode Selector Switch, And Stroke Control Dial. Backgauge Control Includes LED Display, Inch Or Metric Conversion, Go-To-Position Function, 99 Pre-Select Programs, Hour Meter And Stroke Counter. 36" Backgauge Travel With Automatic Swing Up Backstop At Full Extension. 4' Squaring Arm C/W Steel Rule With 1/16" And 1 Mm Increments |
Features
|
3 Position Footswitch Control |
4-Edged Blades |
|
Top And Bottom |
Hand Slots In Table |
|
Manual Quick Blade Clearance Adjustment |
Oil Cooler |
|
Shadow Light and Line |
T-Slot In Front Of Table |
