Year |
1998 |
|---|---|
Make |
Davis Standard |
Model |
60IN60TPIH |
Description |
Single Screw Extruder |
Reference # |
8078147 |
Price |
Activate Pricing |

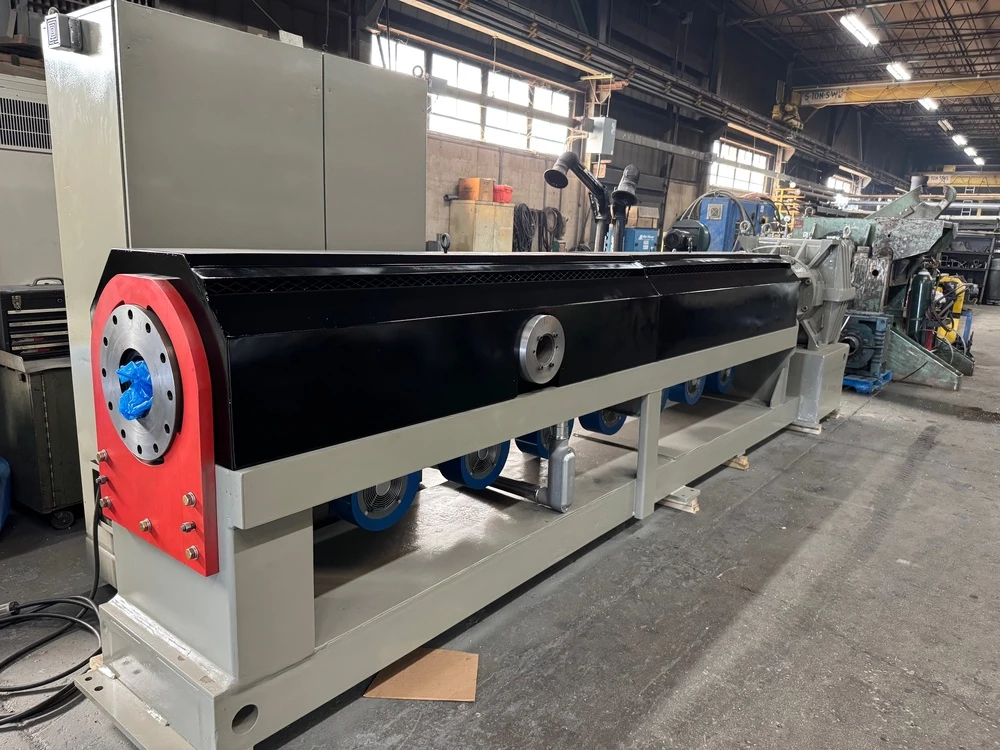

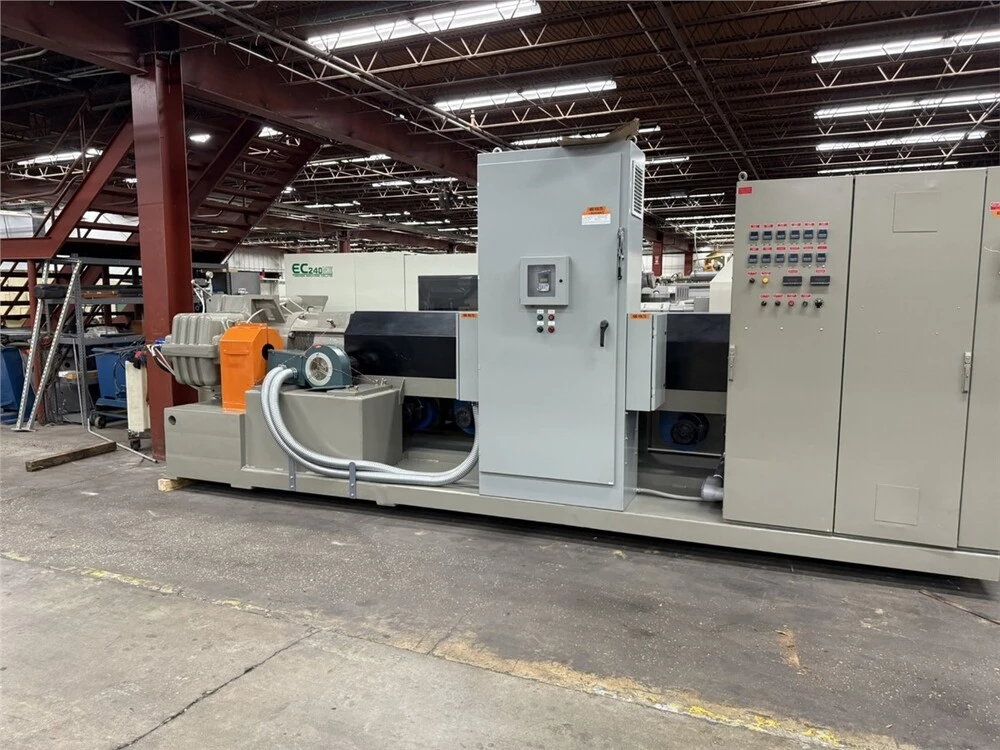

Used Davis Standard 60IN60TPIH (1998) Extruder for Sale. This pre-owned Davis Standard plastic extruder is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Davis Standard Extruder, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Extrusion Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Screw Size |
6.0" |
|---|---|
| L/D Ratio |
30:1 |
| Air Cooled |
Yes |
| Number of Cooling Zones |
(8) Five Zones |
| Vented |
Vented Barrel |

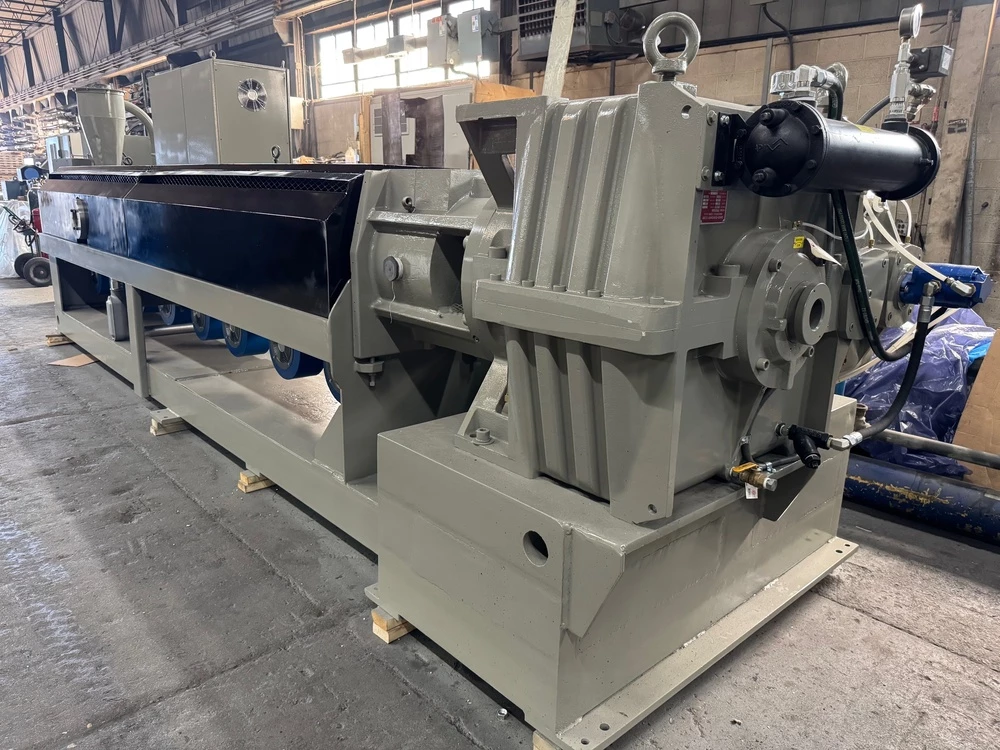

| Gearbox Ratio |
13.4:1 (New Bearings) |
| Horsepower |
Rblt. 500 HP Reliance AC Motor |
| Drive |

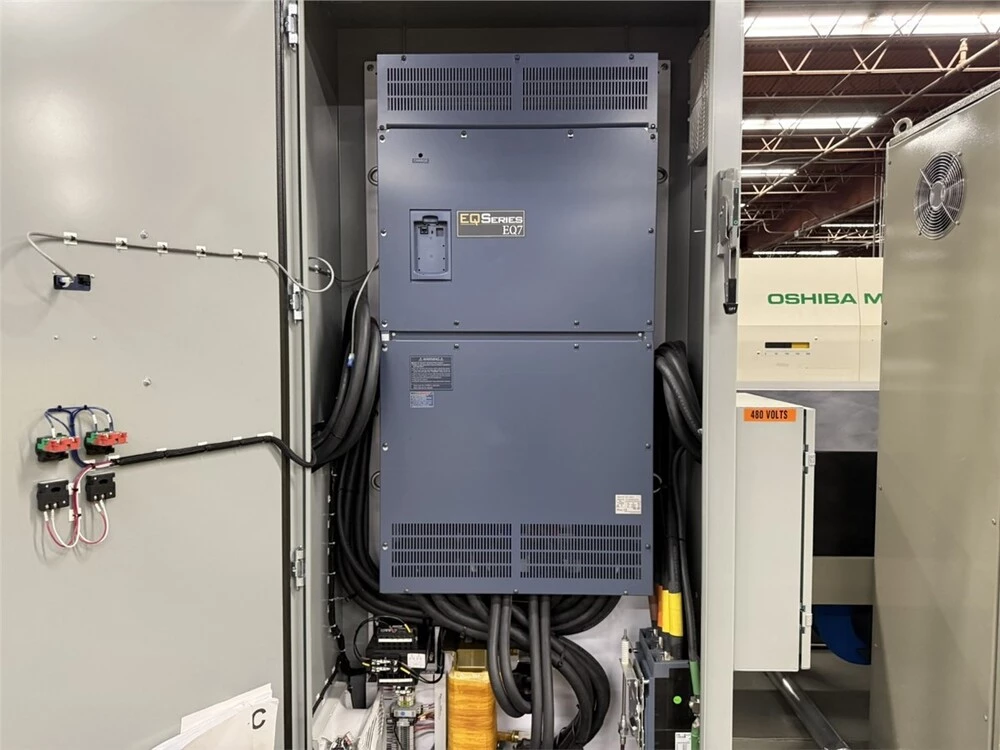

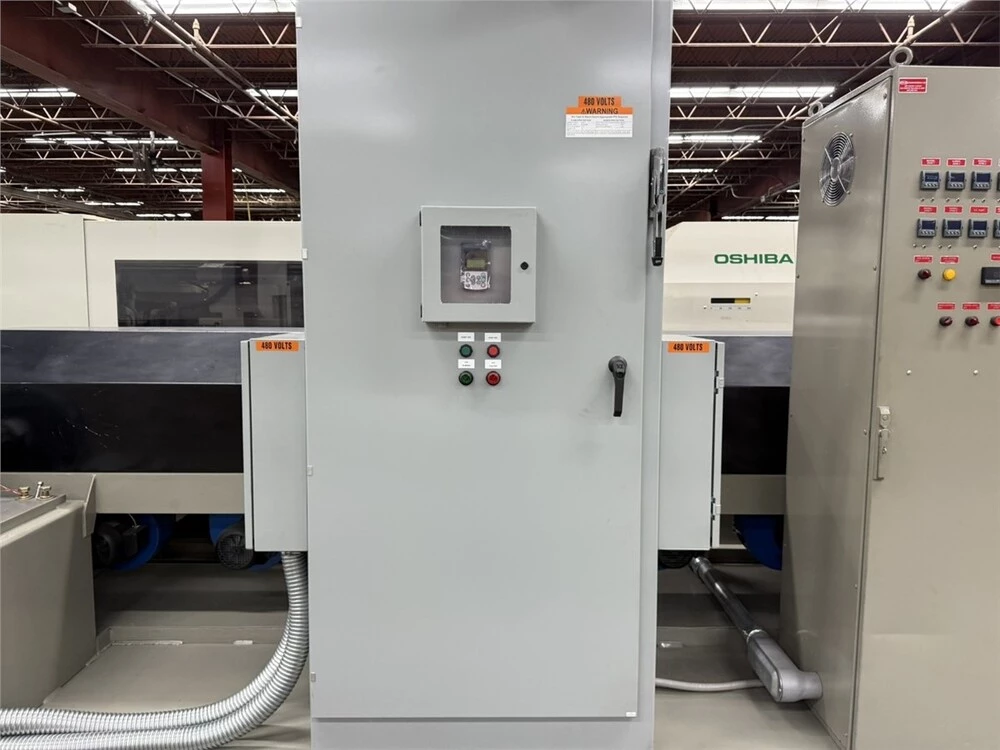

New 460v Drice Control in Nema 12 Panel |
| Control |
New Eurotherm 3216 Solid State w/ All New Wiring |
| Power Requirement |
460 - 3ph - 60hz |
Features
|
2-Stage 6” General Purpose Rebuilt PE/PP Screw |
Infeed Hopper with Clean Out Chute & Diverter Valve |
|
Panel Unitized on Base |

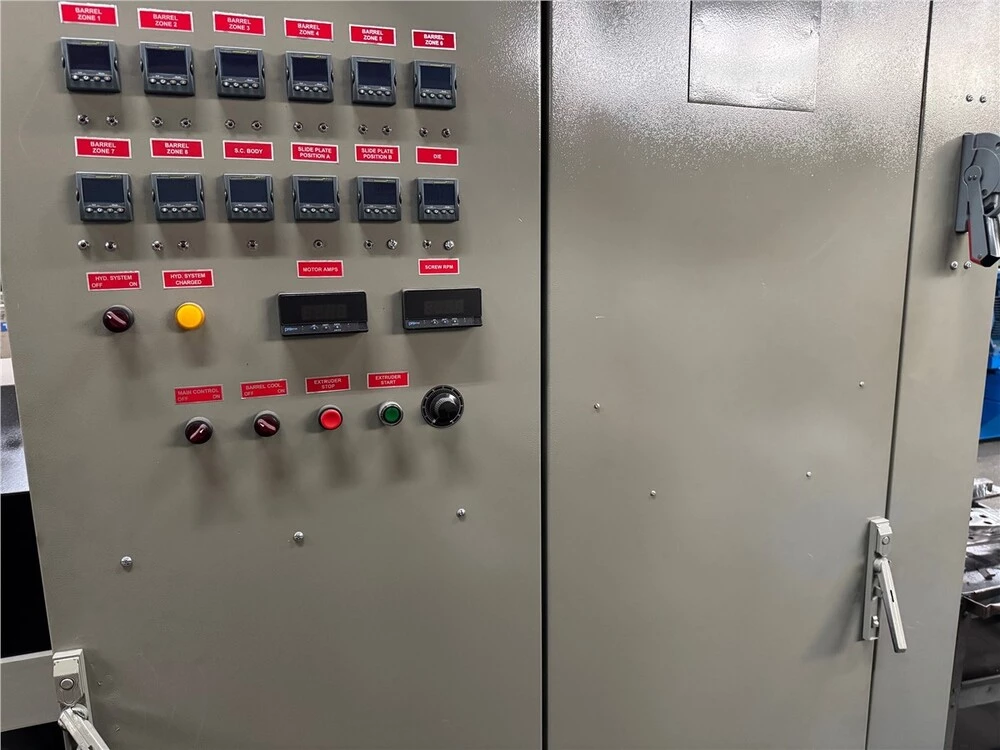

Rebuilt 12 Zone Control Panel |
