Year |
1998 |
|---|---|

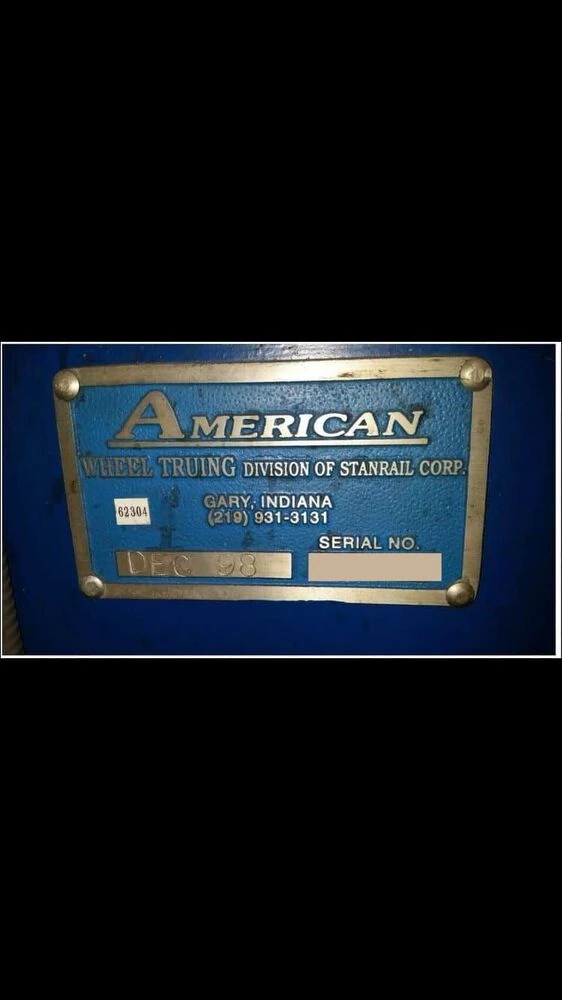

Make |
American |
Model |
HD 301 |
Description |

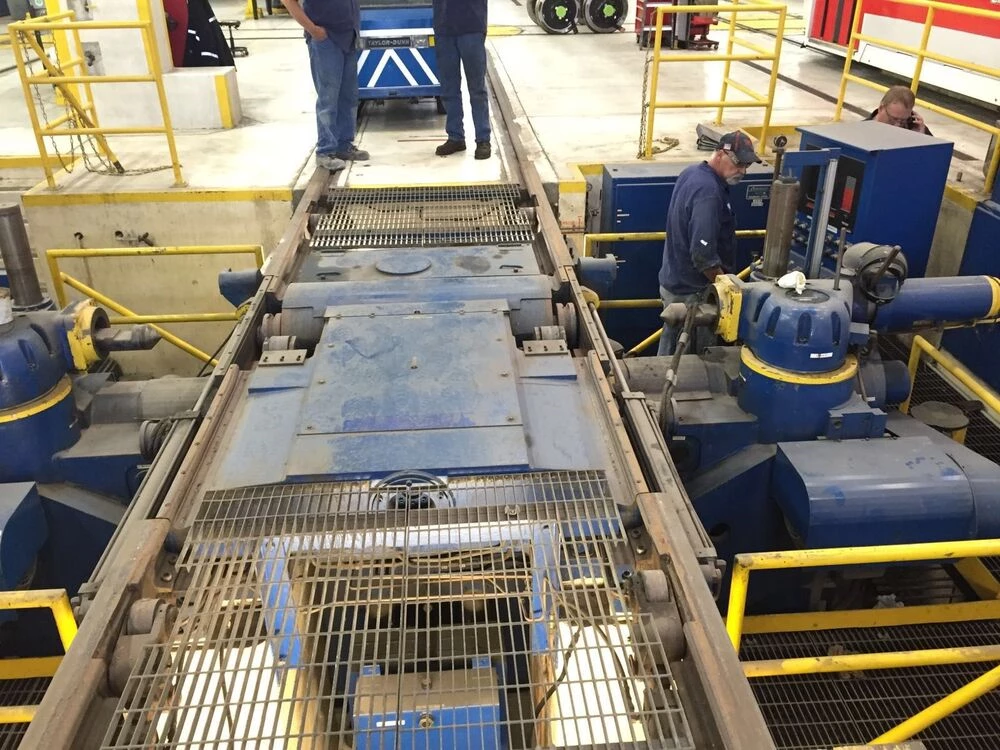

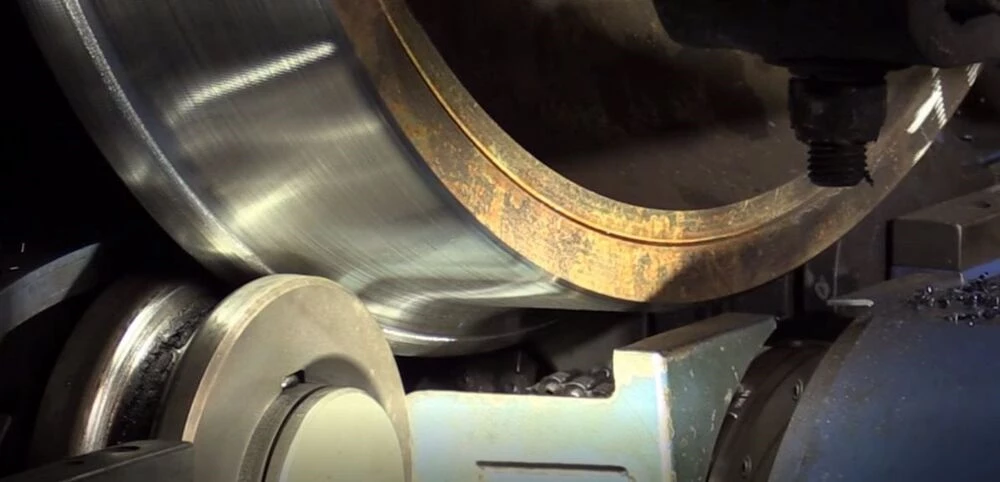

58″ Truing Lathe Turn Locomotive Wheels |
Reference # |
8078327 |
Price |
Activate Pricing |
Used American HD 301 (1998) Engine Lathe for Sale. This pre-owned American engine lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this American Engine Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Beam Maximum Length |
128" |
|---|---|
| C-Frame Maximum Width |
245" |
| C-Frame Maximum Height |
117" |
| Total Weight |
45000 Lbs |
| Production |
Up to 10 Wheel Sets per 8-Hour Shift |
| Diameter Accuracy |
+/- 0.020 in. +/- 0.5 mm |
| Eccentricity |
+/- 0.020 in. +/- 0.5 mm |
| Profile Accuracy |
+/- 0.010 in. +/- 0.25 mm |
| Surface Finish |
200 RMS Axially / 150 RMS on Wheel Circumference |
| Milling Cutter Speed |
30 RPM |
| Hydraulic Centering Ram Force |
6500 Lbs |

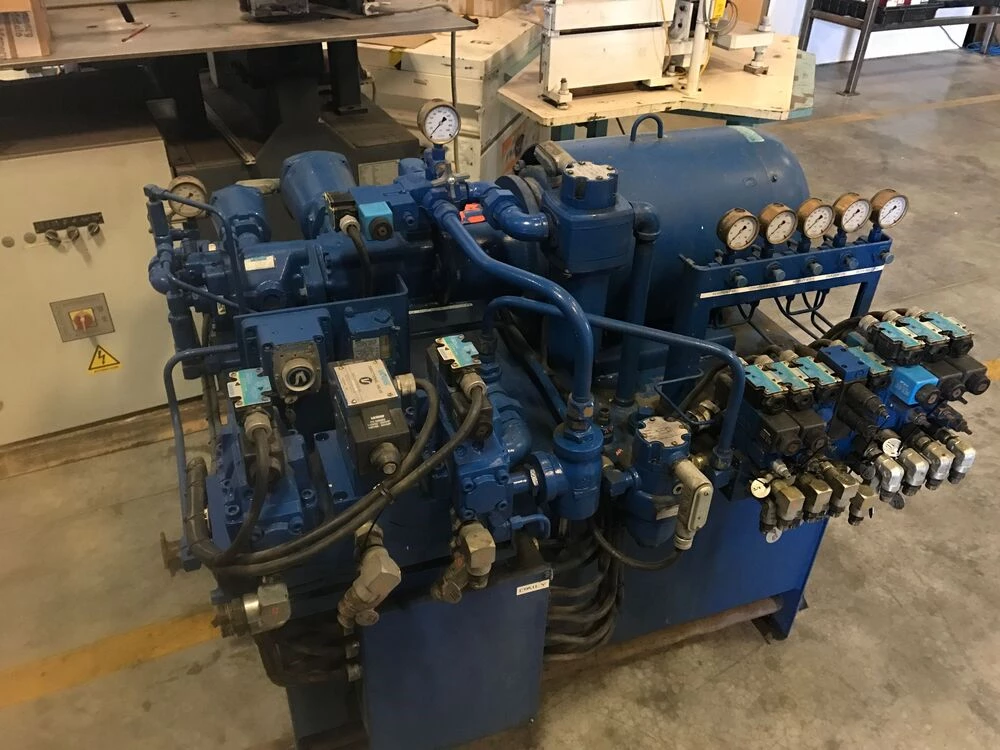

| Hydraulic Hold-Down Force |
15 Tons |

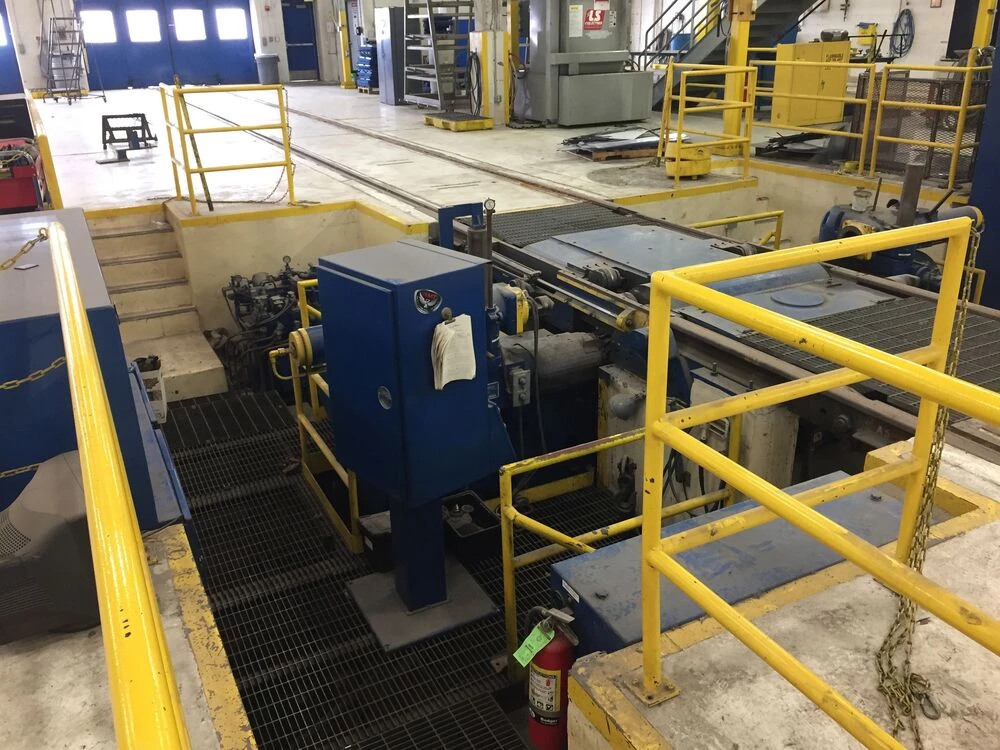

| Pit Dimensions Length |
325" (8574 mm) |
| Pit Dimensions Width |
315" (7947 mm) |
| Pit Dimensions Depth |
122" (3065 mm) |

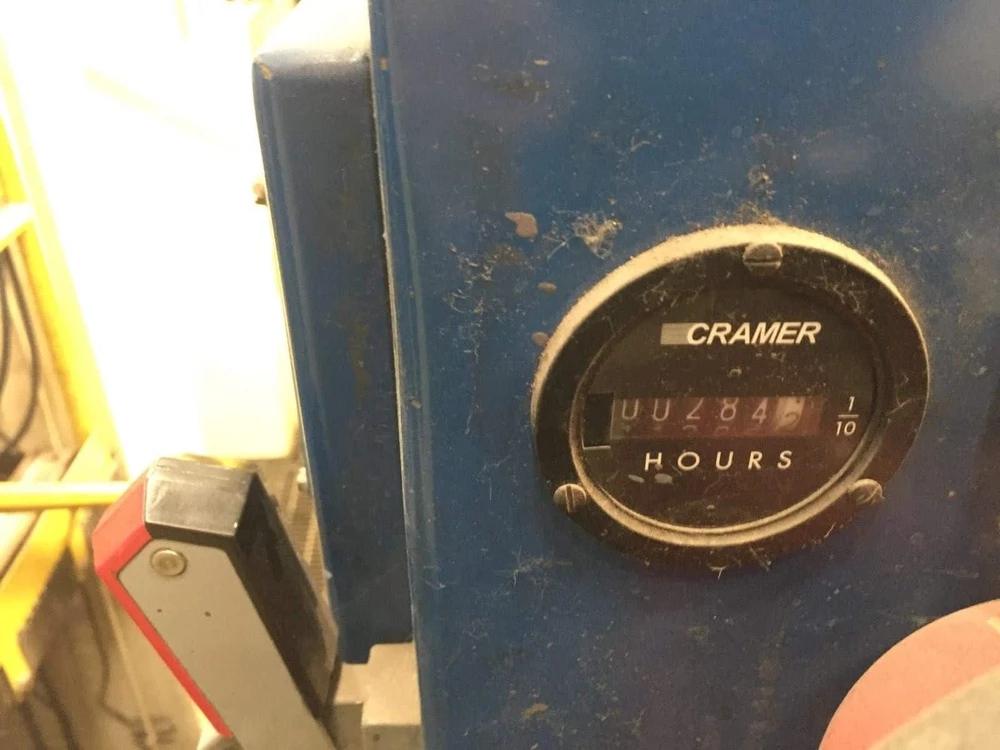

| Hours |
248 Hours |
Features
|

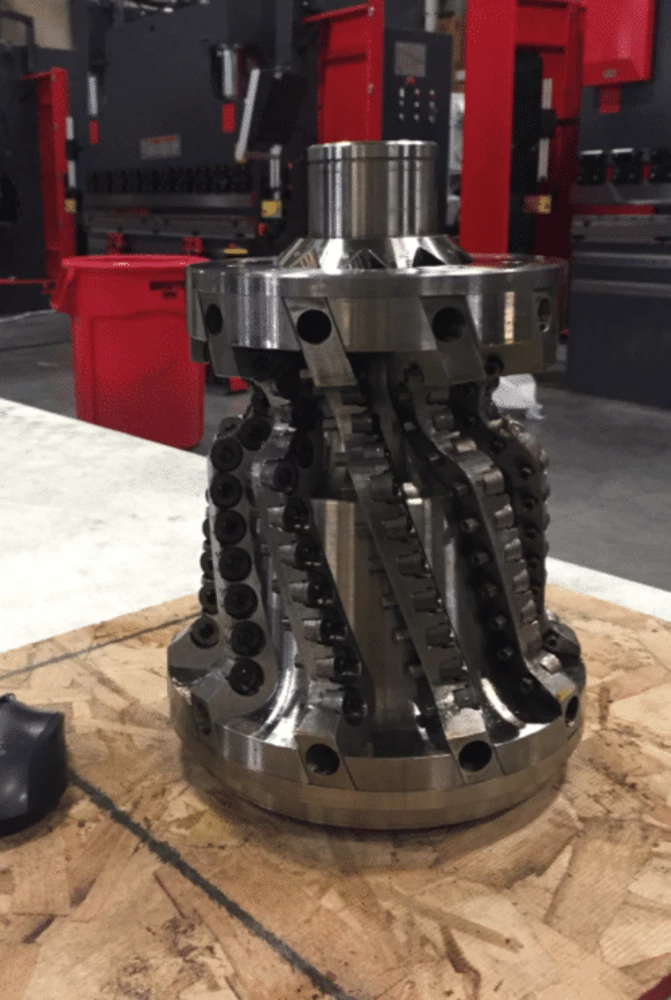

3 Sets of Cutting Heads |
Large Pallet of New Parts/Spares |
*
