Year |
2025 |
|---|---|
Make |
Bystronic |
Model |
ByBend Smart 300/4100 |
Description |
330 Ton x 13.4' Hydraulic Press Brake |
Reference # |
8077492 |
Price |
Activate Pricing |

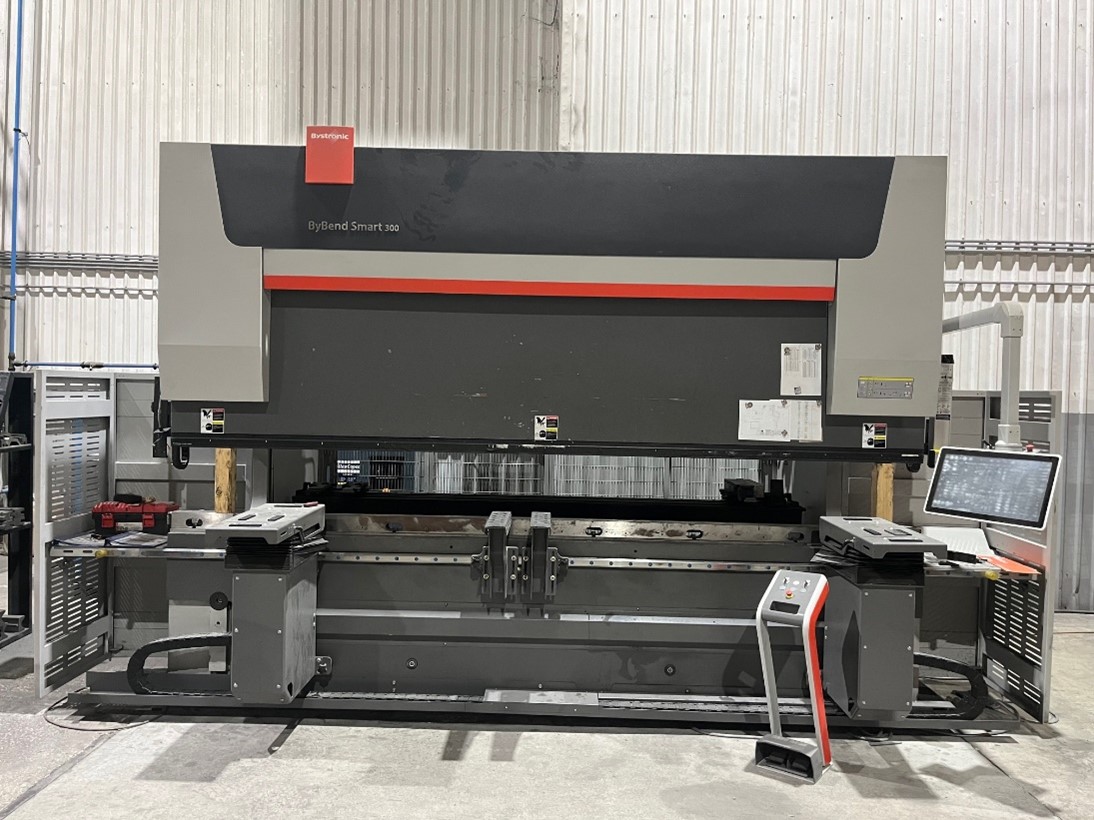

Used Bystronic ByBend Smart 300/4100 (2025) CNC Press Brake for Sale. This pre-owned Bystronic CNC press brake is located in The United States. If you have any questions regarding this Bystronic Press Brake, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
330 Ton |
|---|---|
| Overall Length of Bed |
13.4' |
| Control |
ByVision Bending |
| Distance Between Housings |
134.6" |
| Stroke |
11.8" |
| Throat Depth |
19.8" |
| Open Height |
22.8" |
Features
|
2 Manual Adjustable Front Supports |

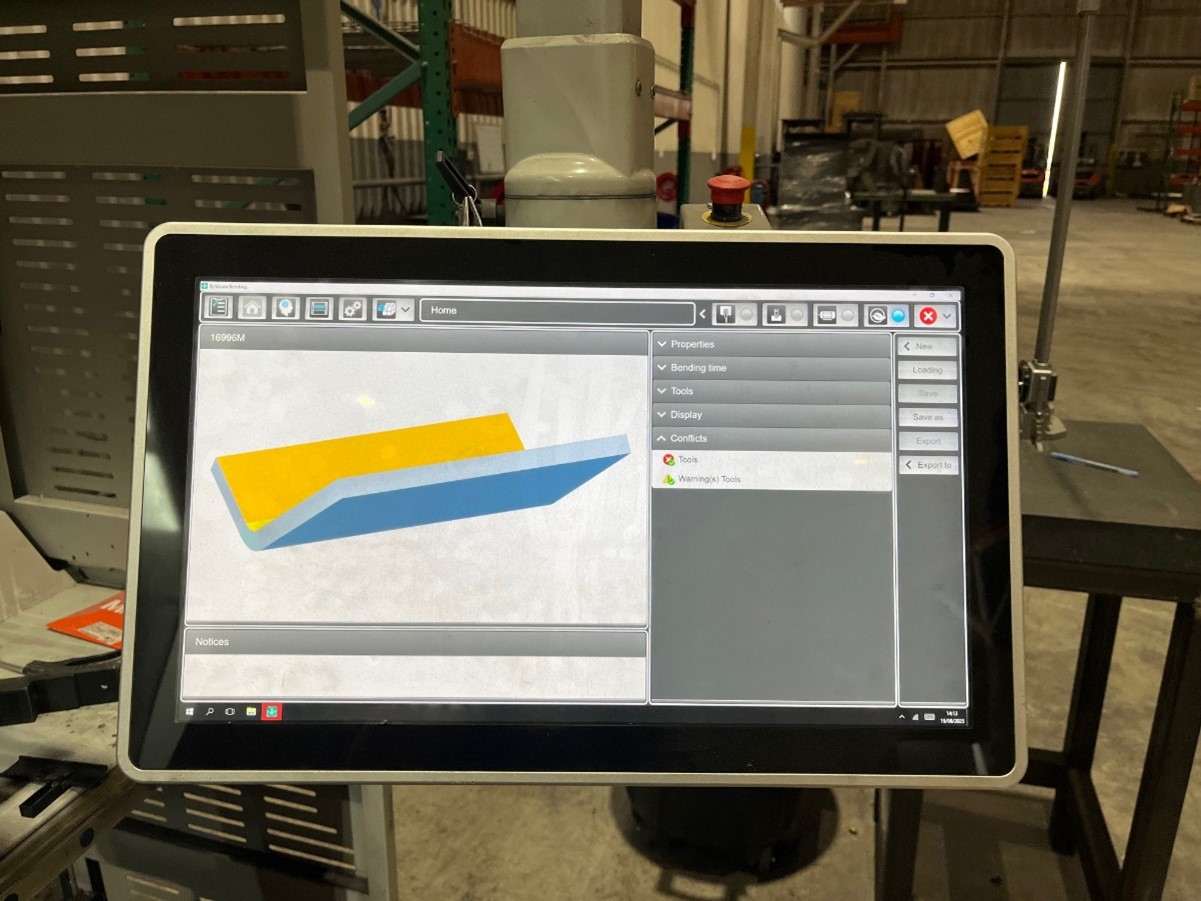

22” Full HD Display and Touch Technology |
|
Ambient Air Temperature 5°C Up To 45°C |
Automatic Side Frame Deflection Compensation |
|
Double Guiding System for Upper Beam |
Dynamic Sheet Follower with Electrical Drive |
|
Efficiency Booster (Energy Saver) |
Electrically Interlocked Side Fences |
|
Fast Bend M (Automatic Height Adjustment) |

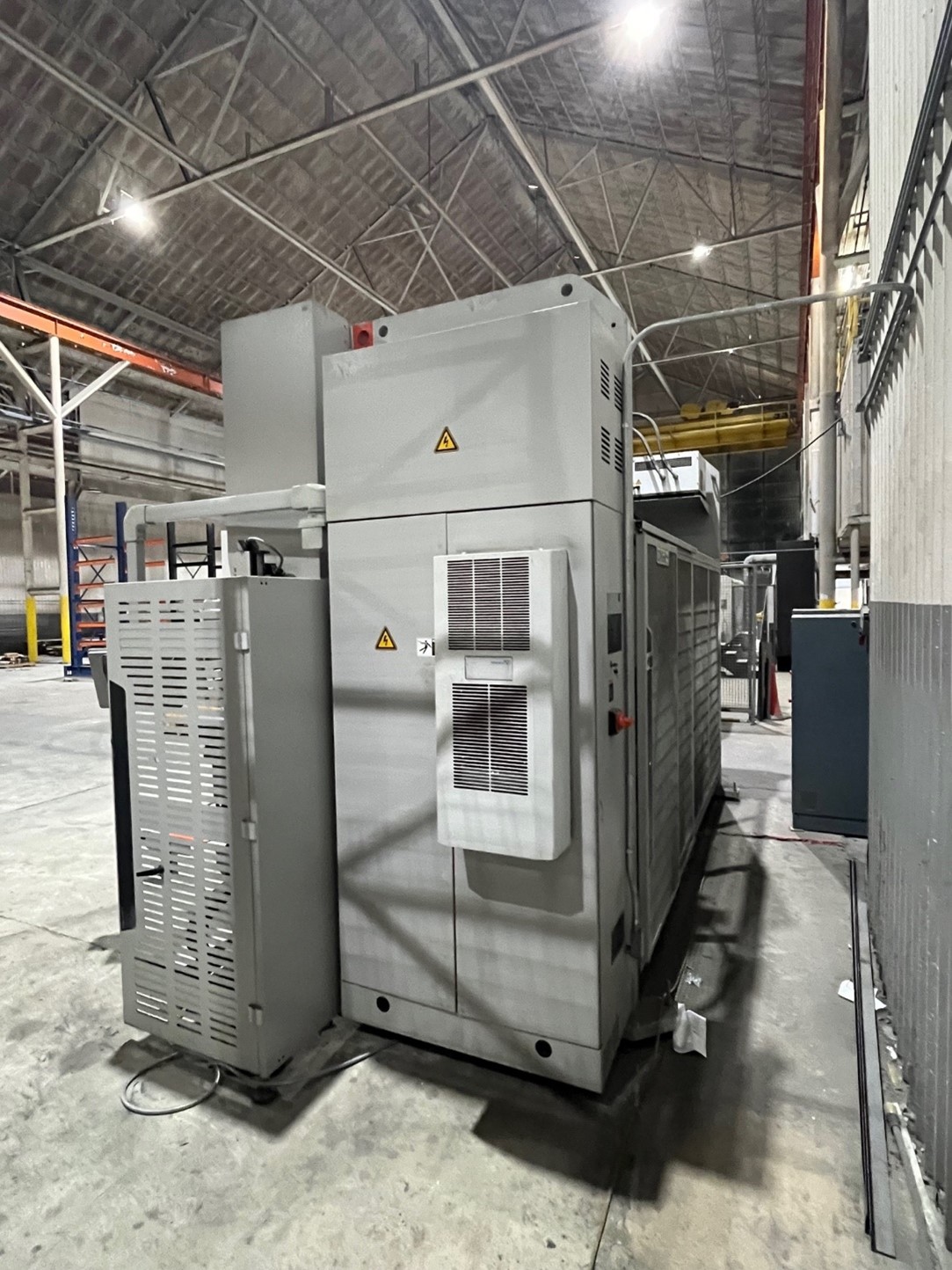

Heat Exchanger on Electrical Cabinet |
|
Hydraulic Tank with Oil Cooling |
LED Illumination at the Front and Back |
|
Linear Guide on Lower Beam |
Rear Protection Devices / Sliding Door Incl. Interlocking Switch |
|
Table T5/90 |
Upper Tool Clamping Type "Euro-B" Mechanical (Fast Clamping Plates) |
|

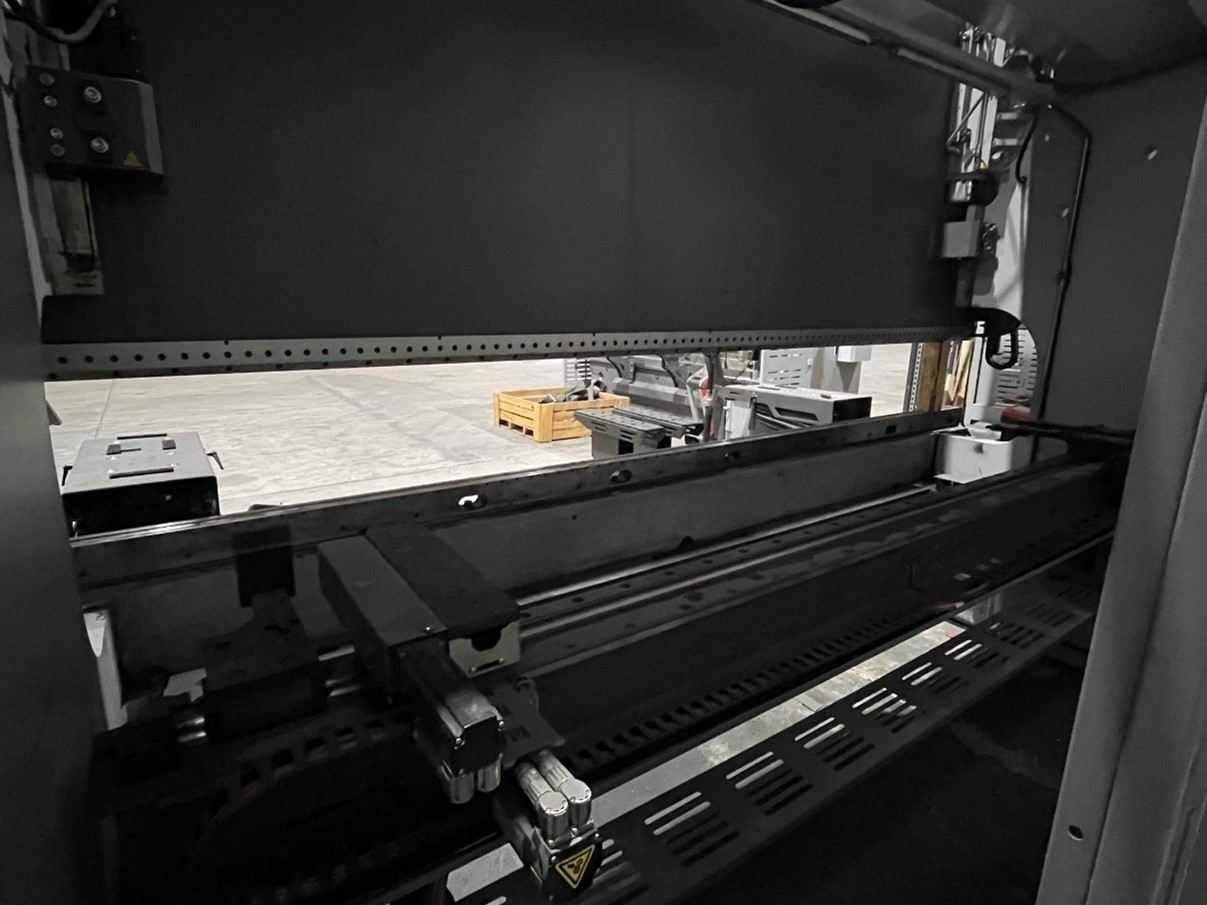

5-Axis Backgauge |
Control Console with Foot Switch |
